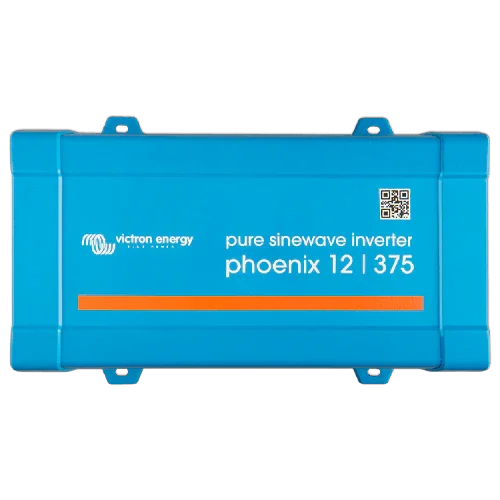

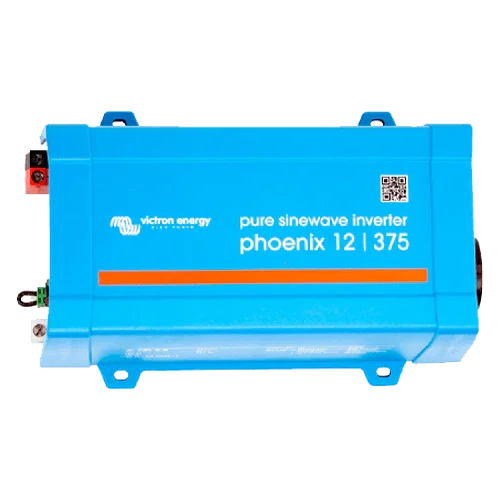

Victron Phoenix VE.Direct Inverter 12V 375VA 12/375
Modelo: Phoenix VE.Direct 12/375- Sku: VICTINV058
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 12V 375VA 12/375 is a pure sine wave inverter for 12 V that combines power, efficiency, and intelligent control. Designed for basic installations requiring reliability and grid-quality power, it offers peaks of 700 W to start demanding loads and a VE.Direct port that facilitates configuration and monitoring from VictronConnect (via USB cable or Bluetooth).
Main Features
- Continuous power: 375 VA (300 W at 25 °C / 260 W at 40 °C) with peak of 700 W.
- 12 V input: 9.2–17 V DC with fully configurable low voltage disconnect and restart.
- Stable output 230 V 50/60 Hz adjustable; pure sine wave suitable for sensitive electronics.

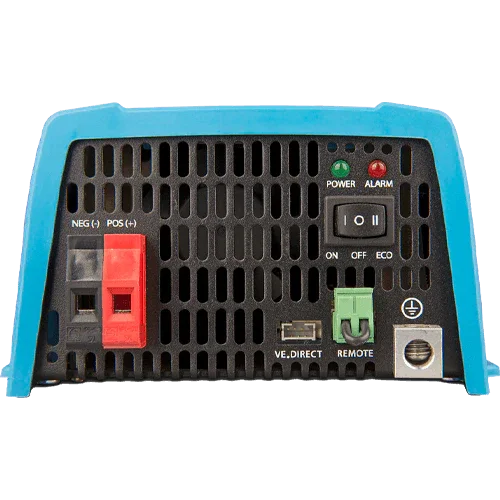

- VE.Direct port for parameterization, alarm logging, and real-time monitoring.
- ECO mode: standby consumption ≈0.9 W with adjustable threshold and polling period.
- Comprehensive protections: short circuit, overload, overtemperature, high/low Vbat, and DC ripple.
Advantages or Benefits
- Safely powers chargers, routers, televisions, light tools, and LED luminaires without flicker.
- Extends battery autonomy by reducing consumption when there is no load thanks to ECO mode.
- Flexible configuration to adapt output voltage/frequency and protection thresholds to your system.
- Reliable start of loads with high peaks, minimizing trips and voltage drops.
- Quick integration with the Victron ecosystem for monitoring and preventive maintenance.
Purpose or Applications
Ideal for caravans, campers, boats, and small residential or telemetry solar installations. Suitable when a bit more margin is needed than a 250 VA but maintaining compact size and low consumption.
Technical Specifications
| Continuous power | 375 VA (300 W at 25 °C / 260 W at 40 °C) |
| Peak power | 700 W |
| Input voltage | 9.2–17 V DC |
| Output | 230 V AC ±3% | 50/60 Hz ±0.1% (adjustable) |
| Max. efficiency | ≈89 % |
| No-load consumption | ≈5.6 W |
| ECO consumption | ≈0.9 W (default retry 2.5 s; adjustable) |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB/Bluetooth via accessories) |
| Protection | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C (power reduction >25 °C) |

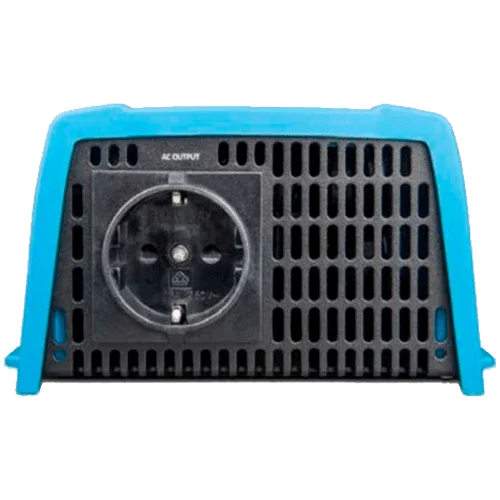

| AC socket | Schuko / IEC-320 depending on version |
| IP | IP21 |
| Dimensions | 86×165×260 mm |
| Weight | 3.0 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10-4 |
Compatibilities
Compatible accessories: VE.Direct to USB, VE.Direct to Bluetooth Smart, Filax automatic switch, BMV monitor, On/Off remote switch, and VictronConnect app. Use with properly protected 12 V batteries and appropriately sized DC cabling.
The Victron Phoenix VE.Direct 12V 375VA 12/375 is the balanced option for basic installations that need pure sine wave quality, VE.Direct control, and sufficient peaks to start more demanding loads.
