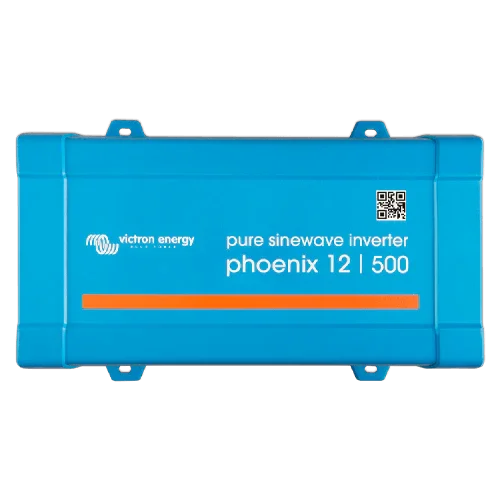

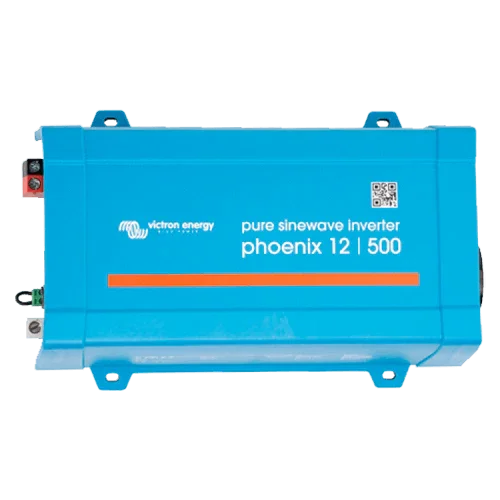

Victron Phoenix VE.Direct Inverter 12V 500VA 12/500
Modelo: Phoenix VE.Direct 12/500- Sku: VICTINV059
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 12V 500VA 12/500 provides power and reliability to convert 12 V DC into 230 V AC with pure sine wave output. Its professional architecture with toroidal transformer ensures stability for sensitive electronics, while the VE.Direct port allows configuration and monitoring of parameters from VictronConnect via USB cable or Bluetooth dongle.
Main Features
- Continuous power: 500 VA (approx. 400 W at 25 °C) with peak power 900 W for demanding startups.
- 12 V battery input: 9.2–17 V DC; configurable low/high voltage thresholds and reset points.

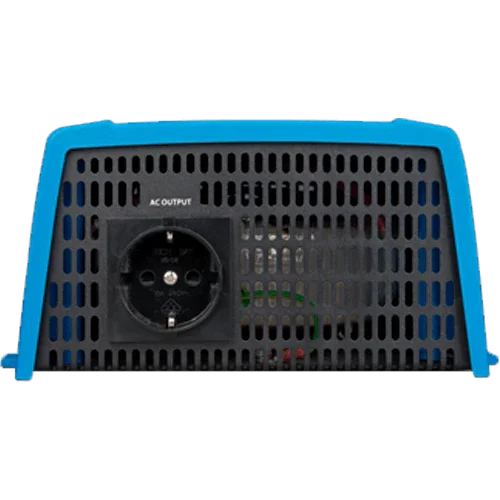

- 230 V AC output 50/60 Hz adjustable; pure sine wave for sensitive equipment.

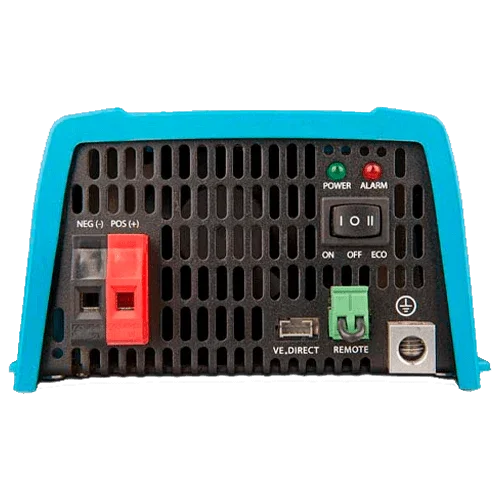

- VE.Direct port for configuration, event logging, and monitoring.
- ECO mode: ultra-low standby consumption (≈1 W) with adjustable polling period.
- Protections: short circuit, overload, overtemperature, high/low voltage, and DC ripple.
Advantages or Benefits
- Safely powers chargers, TVs, routers, light tools, and lighting without noise or flicker.
- Saves battery thanks to ECO mode and high efficiency up to ≈90 %.
- Fine adjustments to adapt to your system: frequency, output voltage, and LVD/recovery thresholds.
- Easy integration with the Victron ecosystem for local or remote control.
Purpose or Applications
Ideal for caravans, campers, boats, telecom, and basic solar kits that need extra startup margin without significantly increasing size or consumption.
Technical Specifications
| Continuous power | 500 VA (≈400 W at 25 °C) |
| Peak power | 900 W |
| Input voltage | 9.2–17 V DC |
| Output | 230 V AC ±3 % | 50/60 Hz (adjustable) |
| Max. efficiency | ≈90 % |
| No-load consumption | ≈6 W |
| Consumption in ECO mode | ≈1 W (default retry 2.5 s; adjustable) |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB/Bluetooth via accessories) |
| Protection | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C (derating >25 °C) |
| IP rating | IP21 |
| Dimensions | 86 × 165 × 260 mm |
| Weight | ≈3.2 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Accessories: VE.Direct to USB cable, Bluetooth Smart Dongle, Filax automatic switch, BMV/SmartShunt battery monitors, remote On/Off switch, VictronConnect app. Use with 12 V batteries and suitable DC protections.
The Victron Phoenix VE.Direct 12V 500VA 12/500 offers control, efficiency, and reliable startup in a compact format for mobile and solar applications.
