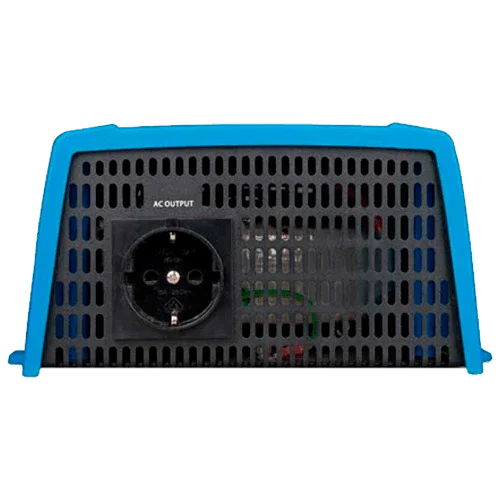

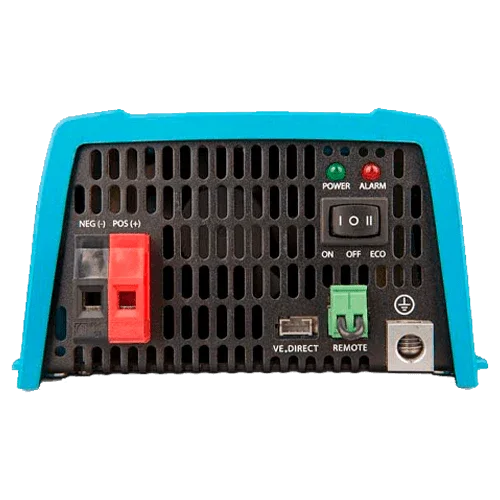

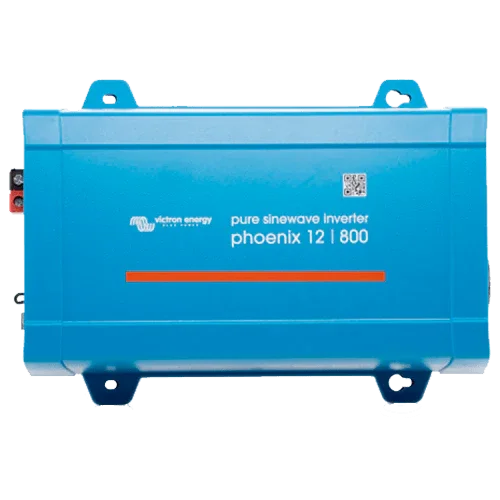

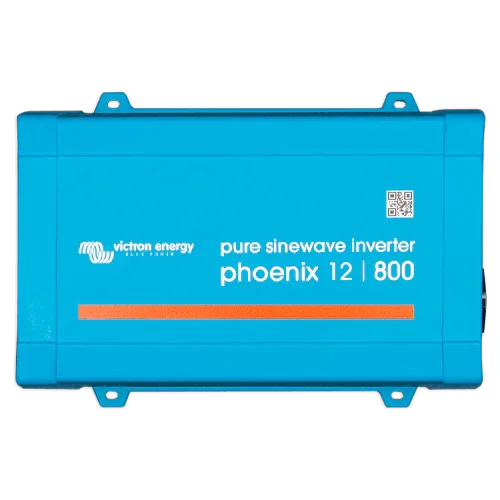

Victron Phoenix VE.Direct Inverter 12V 800VA 12/800
Modelo: Phoenix VE.Direct 12/800- Sku: VICTINV060
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 12V 800VA 12/800 is a robust and efficient inverter for those who need more starting margin and sustained power without sacrificing the stability of a pure sine wave. It integrates a VE.Direct port for adjustment and monitoring via VictronConnect, and an ECO mode that drastically reduces consumption when there is no load.
Main Features
- Continuous power: 800 VA (≈650 W at 25 °C) with peak power 1500 W.
- 12 V input: 9.2–17 V DC; configurable low voltage disconnect and restart.
- Output 230 V 50/60 Hz adjustable; pure sine wave for professional equipment.
- VE.Direct for advanced configuration, alarm logging, and monitoring.
- ECO mode: standby consumption ≈1 W with adjustable threshold and polling period.
- Comprehensive protections: SC, overload, overtemperature, high/low Vbat, and DC ripple.
Advantages or Benefits
- Reliable starting of loads with high peak (small pumps, light compressors, compact microwaves).
- Pure wave that protects electronics and prevents noise, humming, and overheating.
- Optimized energy management that extends the autonomy of your 12 V battery bank.
- Simple integration with Victron accessories and control from mobile or computer.
Purpose or Applications
Recommended for campers and boats with medium consumption, small mobile workshops, and off-grid solar systems that require higher power with control and efficiency.
Technical Specifications
| Continuous power | 800 VA (≈650 W at 25 °C) |
| Peak power | 1500 W |
| Input voltage | 9.2–17 V DC |
| Output | 230 V AC ±3 % | 50/60 Hz (adjustable) |
| Max. efficiency | ≈92 % |
| No-load consumption | ≈7–9 W |
| Consumption in ECO mode | ≈1 W (default retry 2.5 s; adjustable) |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB/Bluetooth via accessories) |
| Protection | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C (derating >25 °C) |
| IP rating | IP21 |
| Dimensions | 86 × 165 × 260 mm |
| Weight | ≈3.8 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Accessories: VE.Direct to USB, VE.Direct to Bluetooth Smart, Filax, BMV/SmartShunt, On/Off remote switch, and VictronConnect app. Requires wiring and DC protections suitable for the power level.
The Victron Phoenix VE.Direct 12V 800VA 12/800 combines starting power, efficiency, and advanced control for mobile and solar applications that demand professional quality.
