Victron Phoenix VE.Direct Inverter 24V 1200VA 24/1200
Modelo: Phoenix VE.Direct 24/1200- Sku: VICTINV073
- Vendor: Victron
Specifications
Product Description

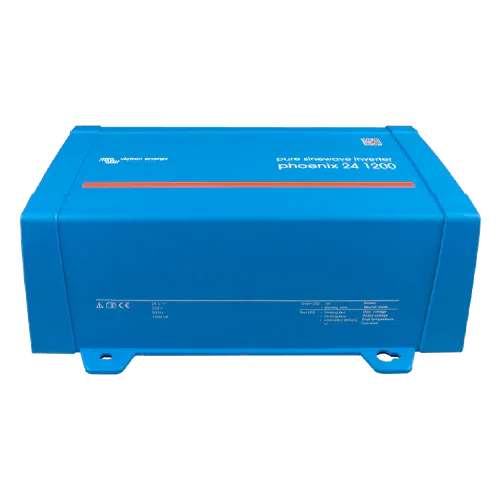

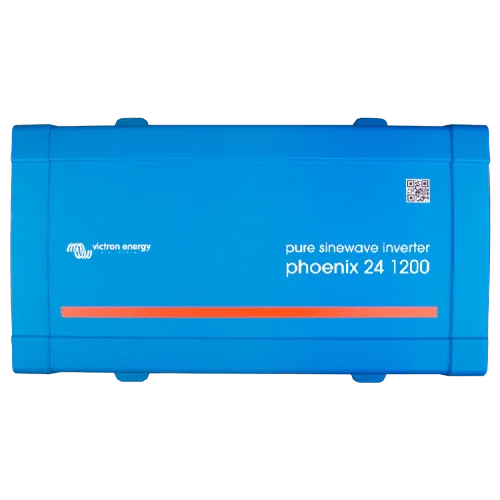

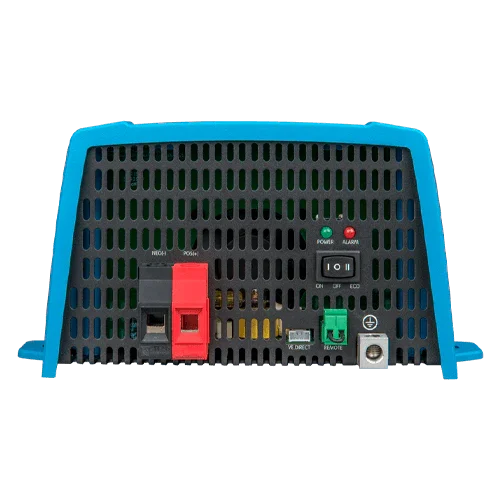

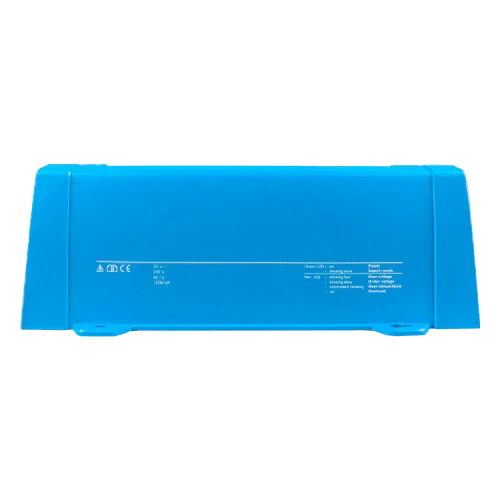

The Victron Phoenix VE.Direct 24V 1200VA 24/1200 reliably converts 24 V DC power into 230 V AC pure sine wave, providing grid-quality output identical to domestic supply for powering sensitive electronics and loads with high start-up peaks. Its professional power electronics, combined with the VE.Direct port for parameterization and monitoring via VictronConnect, make it a robust and durable solution for advanced campers, boats, mobile workshops, and off-grid solar systems where sustained power, efficiency, and intelligent control are required. ECO mode reduces standby consumption to a minimum, extending battery bank autonomy without sacrificing availability. In addition, the low voltage disconnect and recovery thresholds are fully adjustable, protecting the battery while adapting the device to the actual usage profile.
Main Features
- Continuous power: 1200 VA (≈1000 W at 25 °C) and peak power 2200 W for demanding start-ups.
- 24 V input window: ≈18.4–34 V DC with configurable low voltage disconnect/recovery.
- 230 V AC output 50/60 Hz adjustable; pure sine wave suitable for electronics and small motors.
- VE.Direct port for advanced configuration, alarm logging, and monitoring with VictronConnect.
- Ultra-low consumption ECO mode (≈1 W) with adjustable polling period to maximize autonomy.
- Comprehensive protections: short circuit, overload, overtemperature, high/low voltage, and DC ripple.
Advantages or Benefits
- Stable and clean energy that prevents buzzing, flickering, and failures in sensitive equipment (IT, audiovisual, instrumentation).
- High start-up capacity allowing operation of loads with high transient demand (small pumps, light compressors, compact microwaves).
- Real battery savings: high efficiency and minimal standby thanks to configurable ECO mode.
- Fine configuration (LVD/recovery, frequency, output voltage) to adapt it to the battery bank and daily use.
- Simple integration with the Victron ecosystem for local or remote control and preventive maintenance.
Purpose or Applications
Recommended for motorhomes and boats with medium consumption, 24 V off-grid solar systems, telecom, and mobile installations that require sustained power with high peaks, without sacrificing efficiency and control.
Technical Specifications
| Continuous power | 1200 VA (≈1000 W at 25 °C) |
| Peak power | 2200 W |
| Input voltage | ≈18.4–34 V DC (adjustable LVD/recovery thresholds) |
| Output | 230 V AC ±3% | 50/60 Hz ±0.1% (adjustable) |
| Maximum efficiency | ≈92–93% |
| No-load consumption | ≈8–10 W |
| ECO mode consumption | ≈1 W (configurable polling period) |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB or Bluetooth via accessories) |
| Protections | SC, overload, high T°, high/low Vbat, DC ripple |
| Protection rating | IP21 |
| Dimensions | ≈117 × 232 × 327 mm |
| Weight | ≈7.4 kg |
| Operating temperature | -40…+65 °C (derating >25 °C) |

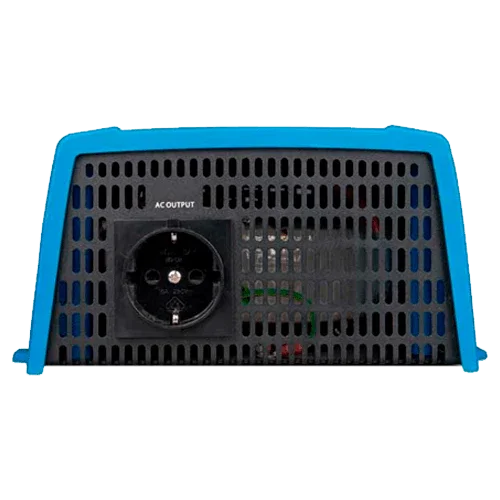

| AC connection | Schuko / IEC-320 depending on version |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Accessories and ecosystem: VE.Direct to USB cable, VE.Direct to Bluetooth Smart Dongle, Filax automatic transfer switch, BMV or SmartShunt battery monitors, remote On/Off switch, and VictronConnect app. Use with 24 V battery banks and DC protections sized to the power.
The Victron Phoenix VE.Direct 24V 1200VA 24/1200 stands out for its balance between power, efficiency, and control, offering a professional pure sine wave solution for 24 V projects seeking reliability and autonomy.
