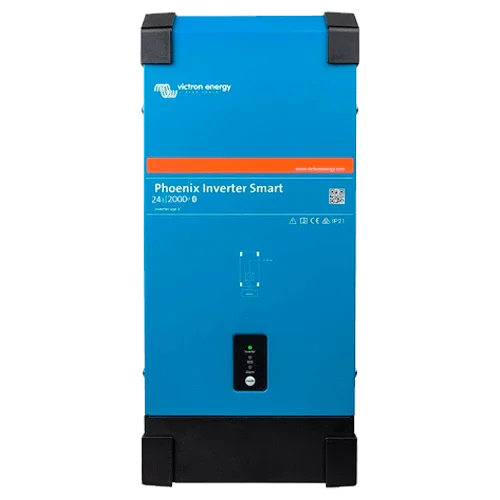

Victron Phoenix Smart Inverter 24V 2000VA 24/2000
Modelo: Phoenix Smart 24/2000- Sku: VICTINV079
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 24V 2000VA 24/2000 offers greater power margin at 24 V while maintaining a pure sine wave signal and intelligent management via Bluetooth. With 2000 VA continuous (≈1600 W at 25 °C) and a peak of 4000 W, it effortlessly starts loads with high inrush current. It integrates a VE.Direct port for monitoring and connection to GX systems, programmable relay, and an ECO mode that reduces consumption to minimal values when there is no load, optimizing battery bank autonomy.
Main Features
- Continuous power: 2000 VA (≈1600 W at 25 °C); peak of 4000 W.
- Input 24 VDC (≈19–33 V) and output 230 VAC ±2% at 50/60 Hz.
- Bluetooth for app configuration and VE.Direct for integration with Victron equipment.
- ECO mode: standby consumption ≈0.6 W; no-load consumption ≈8 W.
- Programmable relay and remote on/off input for system automation.
- Comprehensive electronic protections; IP21 enclosure and wide thermal range.
Advantages or Benefits
- Professional quality 230 V power for sensitive electronics and tools.
- Safe starting of compressors, pumps, or coffee machines thanks to double instant power.
- Greater autonomy and lower electrical noise due to high efficiency (≈94%) and ECO mode.
- Centralized control from mobile or GX system; configurable alerts and thresholds.
- Simple installation and maintenance with Victron accessories and ecosystem.
Purpose or Applications
Recommended for advanced campers, marine use, mobile workshops, small off-grid homes, and businesses requiring stable 230 V at 24 V with high starting peaks and remote management.
Technical Specifications
| Model | Phoenix Smart 24/2000 |
| Continuous power | 2000 VA (≈1600 W at 25 °C) |
| Peak power | 4000 W |
| Input voltage | 24 VDC (≈19–33 V) |
| Output | 230 VAC ±2% | 50/60 Hz |
| Max. efficiency | ≈94% |
| No-load consumption | ≈8 W (ECO ≈0.6 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm/undervoltage/generator start) |
| Protections | Short circuit, overload, high/low battery voltage, overtemperature, 230 V at output, high ripple |
| Operating temperature | -40…+65 °C |
| Protection rating | IP21 |
| Dimensions | 485 × 219 × 125 mm |
| Weight | ≈13 kg |
| Parallel/Three-phase | No |
| Certification | ECE R10 |
Compatibilities
Integrates with BMV-712 Smart, VE.Direct-USB, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Use with appropriate DC protections and cabling sized for 24 V.
The Victron Phoenix Smart Inverter 24V 2000VA 24/2000 combines power, control, and efficiency for high-performance mobile and solar installations.
