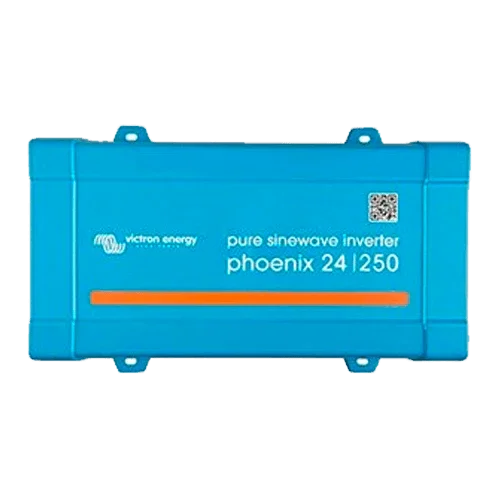

Victron Phoenix Inverter VE.Direct 24V 250VA 24/250
Modelo: Phoenix VE.Direct 24/250- Sku: VICTINV069
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 24V 250VA 24/250 is a pure sine wave inverter designed to convert 24 V DC into 230 V AC with maximum reliability. It combines high-quality power electronics with intelligent control via the VE.Direct port, allowing adjustment of battery thresholds, event logging, and equipment monitoring from the VictronConnect app. Its compact size, very low standby consumption, and configurable ECO mode make it the perfect option for caravans, boats, and small off-grid solar installations that require stable power without compromising battery bank autonomy.
Main Features
- Continuous power 250 VA (≈200 W at 25 °C) and peak power of 400 W for momentary loads.
- 24 V battery input with fully adjustable low voltage disconnect and recovery.

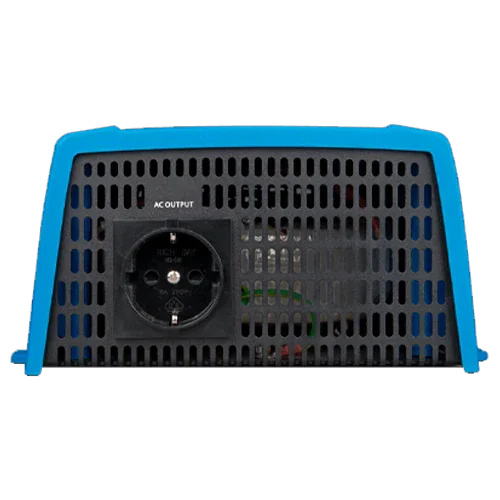

- 230 V output 50/60 Hz adjustable; pure sine wave suitable for sensitive electronics.

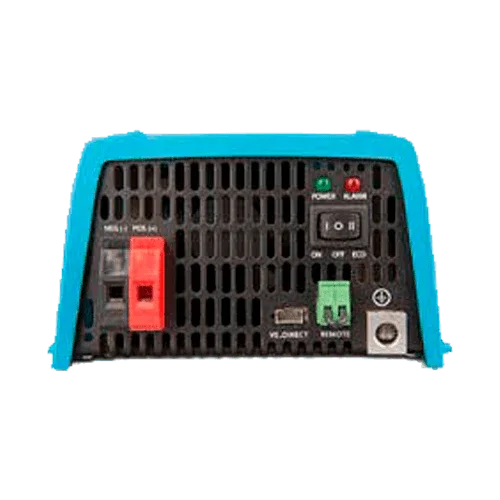

- VE.Direct port for configuration, diagnostics, and alarm logging with VictronConnect.
- Ultra-low ECO mode (≈1 W) with configurable polling to extend autonomy.
- Comprehensive protections: short circuit, overload, overtemperature, high/low voltage, and DC ripple.
Advantages or Benefits
- Clean and stable power that prevents noise, humming, or overheating in delicate equipment.
- Real battery savings thanks to high efficiency and minimal standby consumption.
- Advanced configuration to adapt the inverter to each 24 V installation and its usage profile.
- Proven reliability in mobile applications (camper, marine) and in telecom or instrumentation.
- Easy integration with the Victron ecosystem for local or remote control.
Purpose or Applications
Recommended for powering small 230 V loads in 24 V systems: laptop chargers, routers, LED lighting, small electronic tools, communication equipment, and peripherals. Ideal when size, efficiency, and control are priorities.
Technical Specifications
| Continuous power | 250 VA (≈200 W at 25 °C; derating with temperature) |
| Peak power | 400 W |
| Input voltage | ≈18.4–34 V DC (LVD/recovery adjustable via VE.Direct) |
| Output | 230 V AC ±3% | 50/60 Hz ±0.1% (adjustable) |
| Max efficiency | ≈88–90% |
| No-load consumption | ≈4–5 W |
| ECO mode consumption | ≈1 W (configurable polling period) |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB cable or Bluetooth Smart Dongle) |
| Protection | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C |
| IP rating | IP21 |
| Dimensions | 86 × 165 × 260 mm |
| Weight | ≈2.4 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Recommended accessories: VE.Direct-USB cable, VE.Direct-Bluetooth Smart Dongle, Filax automatic transfer switch, BMV/SmartShunt battery monitors, remote On/Off switch, VictronConnect app. Use with 24 V batteries and DC protections suitable for the load.
The Victron Phoenix VE.Direct 24V 250VA 24/250 stands out for its efficiency, control, and pure wave stability, providing a compact and professional solution for small 24 V loads.
