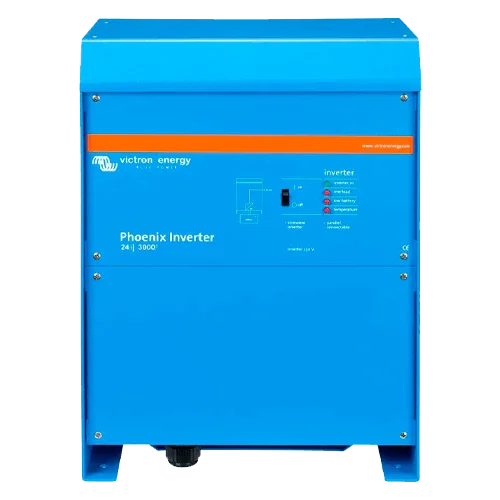

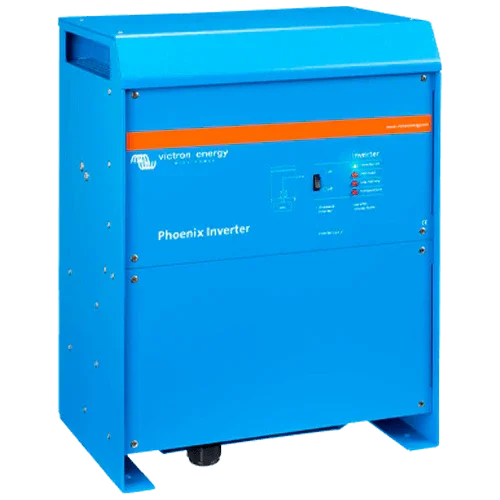

Victron Phoenix Inverter 24V 3000VA 24/3000
Modelo: Phoenix 24/3000- Sku: VICTINV076
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix 24V 3000VA 24/3000 supplies 230 V pure sine wave from 24 V battery banks, offering industrial reliability, high surge capacity, and minimal standby consumption. Based on Victron Energy's SinusMax technology, it delivers stable continuous power and a 6000 W peak to start motors, compressors, and other inductive loads without voltage drops. It is a professional solution for marine, premium campers, mobile workshops, telecom, and off-grid homes requiring sustained performance.
Main Features
- Continuous power: 3000 VA (≈2400–2500 W at 25 °C) with a 6000 W peak for starting heavy loads.
- DC input 24 V (approx. 19–33 V) and output 230 V ±2 %, 50/60 Hz selectable with low THD.
- Maximum efficiency ≈93–94 % and AES/Search modes that reduce idle consumption to ~2–5 W.
- Protections: battery under/overvoltage, overload, short circuit, overtemperature, and audible/visual alarms.
- Advanced management: VE.Bus port for integration with GX devices and configuration via VEConfigure.
- Robust construction: aluminum chassis, IP21, active ventilation, and continuous operation in demanding environments.
Advantages or Benefits
- Pure sine wave that protects sensitive electronics and high-efficiency appliances.
- High surge reserve ensures reliable starts and service continuity.
- Ultra-low standby consumption to maximize battery bank autonomy.
- Scalable and monitorable within the Victron ecosystem (GX, VRM, VictronConnect).
- Professional reliability and availability of accessories, spare parts, and technical support.
Purpose or Applications
Ideal for boats with refrigeration/air conditioning, campers with microwaves or power tools, site cabins, telecom systems, pumping equipment, and off-grid homes at 24 V with high peaks and continuous use.
Technical Specifications
| Continuous power (25 °C) | 3000 VA (≈2400–2500 W) |
| Continuous power (40 °C) | ≈2000–2100 W |
| Peak power | 6000 W |
| DC input voltage | ≈19–33 V |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈93–94 % |
| No-load consumption | ~12 W (AES ~6 W | Search ~2 W) |
| Protections | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | ≈520 × 255 × 125 mm |
| Weight | ≈17–18 kg |
| Operating temperature | -40 °C to +65 °C (with derating) |
| Connectivity | VE.Bus, remote on/off, VEConfigure (MK3-USB) |
| Enclosure | Aluminum, Victron blue color |
Compatibilities
Direct compatibility with 24 V battery banks sized for high currents.
Compatible accessories (not included): BMV/SmartShunt monitors, Phoenix Inverter Control panel, MK3-USB interface, GX devices (e.g., Cerbo GX), and VRM platform; as well as MEGA fuse holders, disconnectors, and suitable DC/AC protection panels.
The Victron Phoenix 24V 3000VA 24/3000 combines pure sine wave, high peak, and efficiency to provide reliable power in demanding professional applications.
