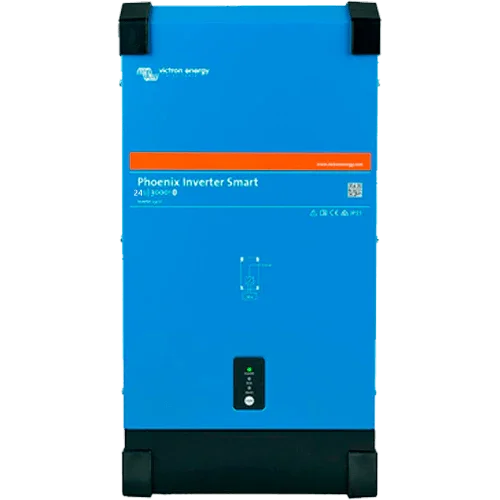

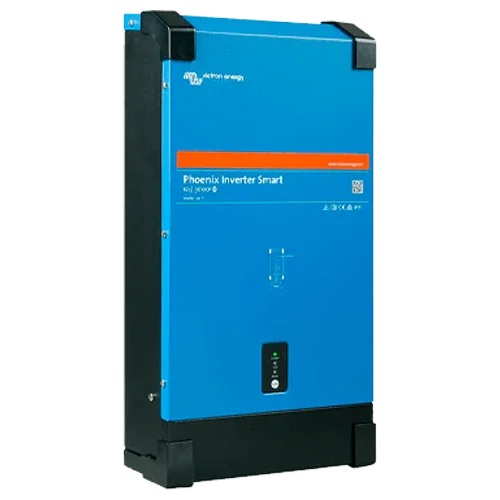

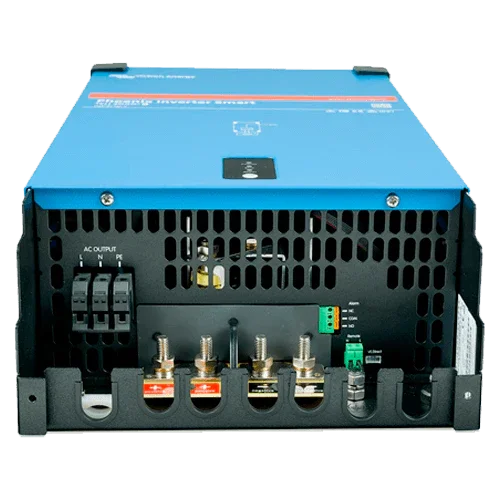

Victron Phoenix Smart Inverter 24V 3000VA 24/3000
Modelo: Phoenix Smart 24/3000- Sku: VICTINV080
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 24V 3000VA 24/3000 delivers 3000 VA continuous (≈2400 W at 25 °C) with a peak of 6000 W to start demanding loads while maintaining a pure and stable sine wave at 230 V. It features Bluetooth for configuration via the VictronConnect app, a VE.Direct port for monitoring, ultra-low consumption ECO mode, and a programmable relay that facilitates system automation. It is a robust solution for campers, marine applications, and off-grid 24 V solar systems.
Main Features
- Continuous power 3000 VA (≈2400 W) and peak 6000 W.
- Input 24 VDC (18.6–34 V) and output 230 VAC ±2% at 50/60 Hz.
- Integrated Bluetooth and VE.Direct for control and logging.
- Efficiency ≈94%; no-load consumption ≈13 W; ECO mode ≈1.9 W.
- Programmable relay and remote on/off input.
- Comprehensive electronic protections; IP21 enclosure.
Advantages or Benefits
- Pure sine wave to protect sensitive electronics and appliances.
- Reliable start-up of compressors and pumps thanks to high peak power.
- Greater battery autonomy due to high efficiency and ECO mode.
- Configuration and diagnostics from mobile devices or GX systems.
- Simple integration in professional 24 V installations.
Purpose or Applications
Ideal for 24 V caravans and campers, boats, mobile workshops, and off-grid homes that require stable 230 V with high start-up peaks and remote management.
Technical Specifications
| Model | Phoenix Smart 24/3000 |
| Continuous power | 3000 VA (≈2400 W at 25 °C) |
| Peak power | 6000 W |
| Input voltage | 18.6–34 V DC |
| Output | 230 V AC ±2% | 50/60 Hz |
| Max. efficiency | ≈94% |
| No-load consumption | ≈13 W (ECO ≈1.9 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm, undervoltage, generator start) |
| Protections | Short circuit, overload, high/low battery voltage, overtemperature, 230 V at output, high ripple |
| Operating temperature | -40…+65 °C |
| Protection rating | IP21 |
| Dimensions | 485 × 285 × 150 mm (24 V/48 V) |
| Weight | ≈19 kg |
| Parallel / Three-phase | No |
Compatibilities
Integrable with BMV-712 Smart, VE.Direct-USB interface, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Use with appropriate DC wiring and protections (MEGA/MIDI fuses, disconnect switch, DC circuit breaker) in 24 V battery banks.
The Victron Phoenix Smart Inverter 24V 3000VA 24/3000 combines power, control, and efficiency for professional-quality energy at 24 V.
