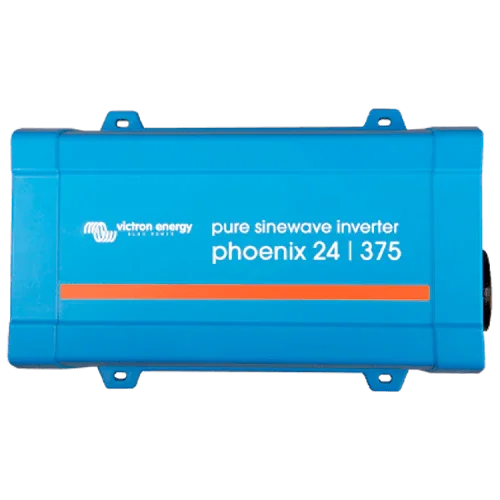

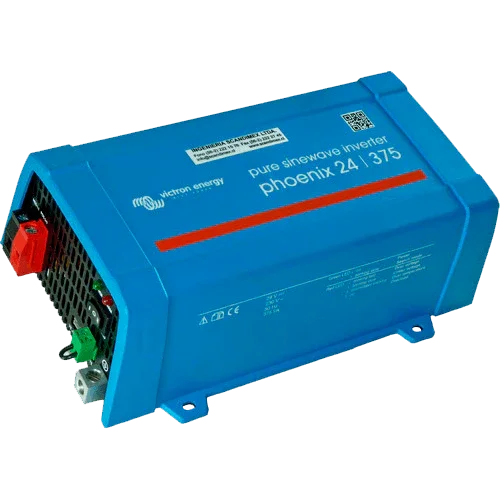

Victron Phoenix VE.Direct Inverter 24V 375VA 24/375
Modelo: Phoenix VE.Direct 24/375- Sku: VICTINV070
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 24V 375VA 24/375 is a pure sine wave inverter for 24 V that combines power, efficiency, and advanced control. Its VE.Direct port allows you to set battery thresholds, log alarms, and monitor operation from VictronConnect (via USB or optional Bluetooth). With peaks of 700 W and excellent performance with difficult loads, it ensures a stable 230 V supply for sensitive equipment in caravans, boats, and small off-grid photovoltaic installations.
Main Features
- Continuous power 375 VA (≈300 W at 25 °C / ≈260 W at 40 °C) with peak power 700 W.
- 24 V input range (≈18.4–34 V) with adjustable low voltage disconnect/recovery.

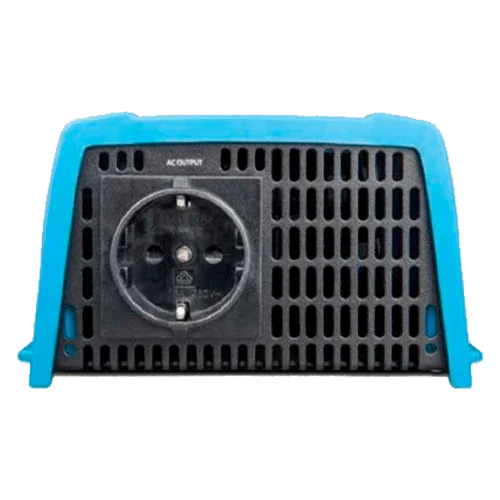

- Output 230 V 50/60 Hz configurable; pure sine wave for electronics and small motors.

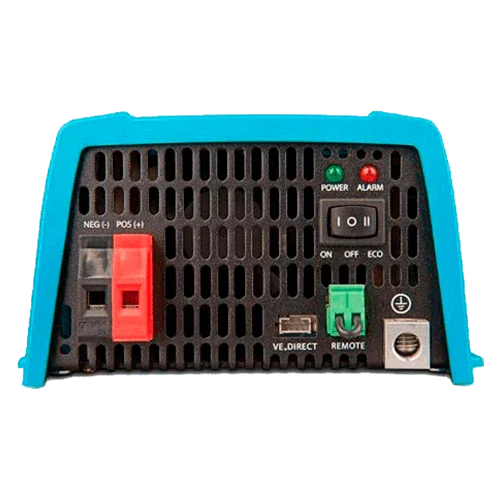

- VE.Direct port for configuration, diagnostics, and real-time monitoring.
- Very low consumption ECO mode (≈1 W) with configurable polling period.
- Protections: short circuit, overload, overtemperature, high/low Vbat, and DC ripple.
Advantages or Benefits
- Greater starting capacity without sacrificing efficiency or the autonomy of the 24 V system.
- Professional grid quality that prevents failures, buzzing, or flickering in delicate equipment.
- Flexible configuration to adapt the inverter to different usage profiles and battery banks.
- Simple integration with Victron accessories and management from smartphone or computer.
- Compact and lightweight format, ideal for mobile applications and confined spaces.
Purpose or Applications
Suitable for campers, recreational boats, telecom, instrumentation, and small photovoltaic systems where extra power is required compared to the 250 VA model, while maintaining control and efficiency.
Technical Specifications
| Continuous power | 375 VA (≈300 W at 25 °C / ≈260 W at 40 °C) |
| Peak power | 700 W |
| Input voltage | ≈18.4–34 V DC (LVD/recovery adjustable) |
| Output | 230 V AC ±3 % | 50/60 Hz ±0.1 % (adjustable) |
| Max. efficiency | ≈90 % |
| No-load consumption | ≈5–6 W |
| Consumption in ECO mode | ≈1 W |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB/Bluetooth via accessories) |
| Protection | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C |
| IP rating | IP21 |
| Dimensions | 86 × 165 × 260 mm |
| Weight | ≈3.0 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Compatible accessories: VE.Direct-USB, VE.Direct-Bluetooth Smart Dongle, Filax automatic transfer switch, BMV/SmartShunt monitors, remote On/Off switch, and VictronConnect app. Use with 24 V battery banks and properly rated DC protections.
The Victron Phoenix VE.Direct 24V 375VA 24/375 is the balanced choice for 24 V installations that require pure sine wave, sufficient peaks, and advanced control via VE.Direct.
