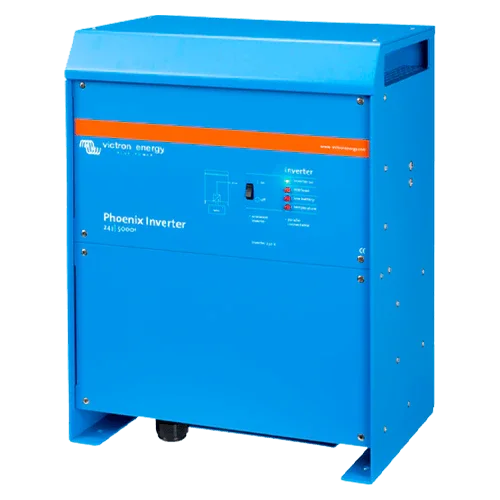

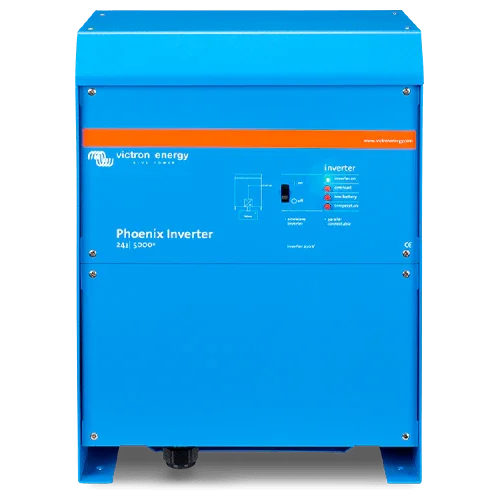

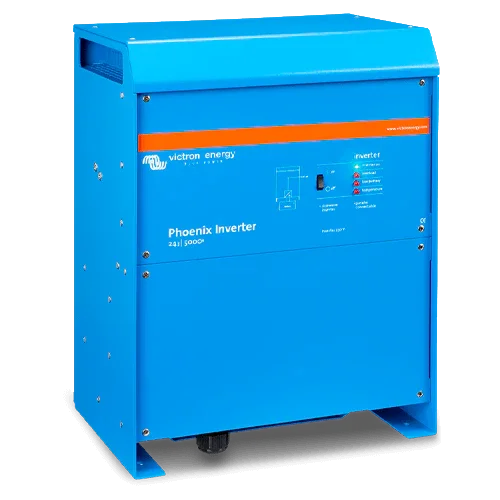

Victron Phoenix Inverter 24V 5000VA 24/5000
Modelo: Phoenix 24/5000- Sku: VICTINV077
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix 24V 5000VA 24/5000 is designed for 24 V installations with intensive loads that demand high continuous power and a huge start-up peak. SinusMax electronics provide a flawless waveform and a large power reserve to start motors and compressors without drops, while AES and Search modes reduce standby consumption. Integrated via VE.Bus with the Victron ecosystem, it is a solid foundation for high-performance industrial, marine, and off-grid residential systems.
Main Features
- Continuous power: 5000 VA (≈4000–4200 W at 25 °C) with a peak of 10,000 W for very demanding start-up loads.
- DC input 24 V (approx. 19–33 V) and output 230 V ±2 %, 50/60 Hz selectable.
- Maximum efficiency ≈94–95 %; AES/Search modes to lower standby consumption to ~2–5 W.
- Comprehensive protections: undervoltage/overvoltage, overload, short circuit, overtemperature, and alarms.
- Advanced management: VE.Bus port for control/monitoring with GX equipment and VEConfigure setup.
- Reinforced aluminum chassis, IP21, active ventilation, and 24/7 operation in demanding environments.
Advantages or Benefits
- Pure sine wave for sensitive electronics and professional machinery.
- Seamless start-up of large motors and compressors thanks to its very high peak.
- Very low standby consumption to preserve system autonomy.
- Integration and remote monitoring within the Victron ecosystem (GX, VRM, VictronConnect).
- Reliability and support from a leading manufacturer in off-grid solutions.
Purpose or Applications
Suitable for boats and yachts with critical loads, well-equipped motorhomes, pump houses, mobile workshops, telecom, small industries, and off-grid homes that require high continuous power at 24 V.
Technical Specifications
| Continuous power (25 °C) | 5000 VA (≈4000–4200 W) |
| Continuous power (40 °C) | ≈3300–3500 W |
| Peak power | 10,000 W |
| DC input voltage | ≈19–33 V |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈94–95 % |
| Standby consumption | ~15 W (AES ~7 W | Search ~2–3 W) |
| Protections | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | ≈590 × 280 × 200 mm |
| Weight | ≈28–30 kg |
| Operating temperature | -40 °C to +65 °C (with derating) |
| Connectivity | VE.Bus, remote on/off, VEConfigure (MK3-USB) |
| Enclosure | Aluminum, Victron blue |
Compatibilities
Direct compatibility with high-capacity 24 V battery banks and wiring/protections sized for high currents.
Compatible accessories (not included): BMV/SmartShunt, Phoenix Inverter Control, MK3-USB, GX devices (Cerbo GX), and VRM platform; as well as MEGA fuse holders, disconnectors, and suitable DC/AC protection panels.
The Victron Phoenix 24V 5000VA 24/5000 combines pure sine wave, very high peak power, and efficiency to provide reliable energy in demanding professional and residential projects.
