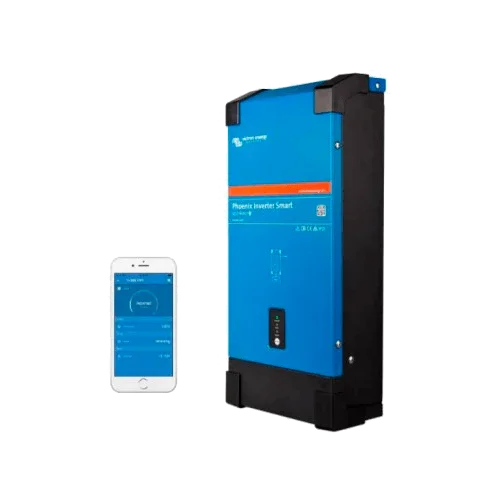

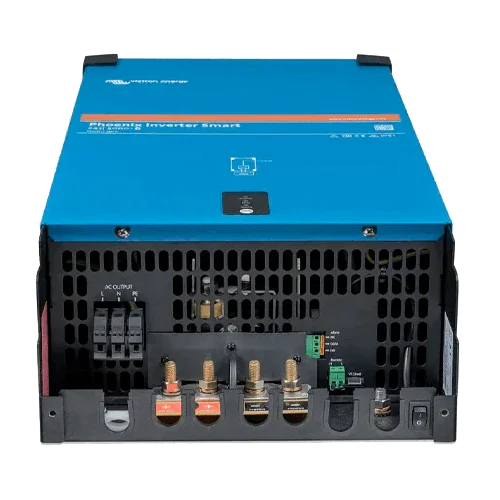

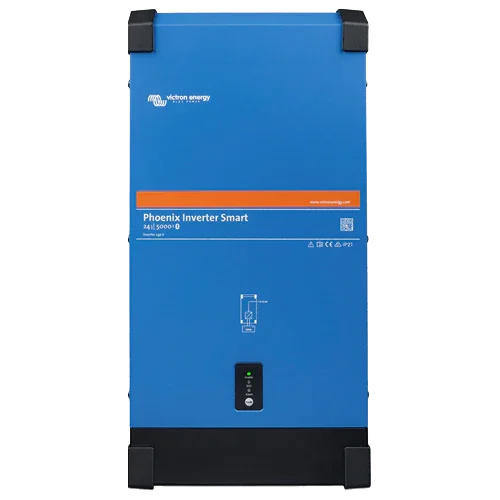

Victron Phoenix Smart Inverter 24V 5000VA 24/5000
Modelo: Phoenix Smart 24/5000- Sku: VICTINV081
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 24V 5000VA 24/5000 is the top of the range in 24 V: it offers 5000 VA continuous (≈4000 W at 25 °C) and a peak of 10,000 W to start very demanding loads while maintaining perfect 230 V sine wave output. With Bluetooth and VE.Direct, it allows you to configure thresholds, ECO mode, alarms, and log data from the app or a GX system. Its high efficiency and professional-grade protection electronics ensure reliability in critical applications.
Main Features
- Continuous power 5000 VA (≈4000 W) and peak 10,000 W.
- Input 24 VDC (18.6–34 V) and output 230 VAC ±2% at 50/60 Hz.
- Efficiency ≈95%; no-load consumption ≈18 W; ECO mode ≈2.2 W.
- Integrated Bluetooth and VE.Direct for control and monitoring.
- Programmable relay and remote on/off input.
- Comprehensive protections and IP21 construction for demanding use.
Advantages or Benefits
- Industrial-quality 230 V power for heavy and sensitive loads.
- Safe starting of compressors, pumps, and tools with high inrush current.
- Optimizes battery bank autonomy thanks to its high efficiency and ECO mode.
- Simple management and diagnostics from mobile or Victron GX systems.
- Professional installation in mobile or stationary 24 V environments.
Purpose or Applications
Recommended for off-grid homes with high demand, food trucks and mobile workshops, larger vessels, and light industrial applications requiring high power at 24 V with remote control.
Technical Specifications
| Model | Phoenix Smart 24/5000 |
| Continuous power | 5000 VA (≈4000 W at 25 °C) |
| Peak power | 10,000 W |
| Input voltage | 18.6–34 V DC |
| Output | 230 V AC ±2% | 50/60 Hz |
| Max efficiency | ≈95% |
| No-load consumption | ≈18 W (ECO ≈2.2 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm, undervoltage, generator start) |
| Protections | Short circuit, overload, high/low battery voltage, overtemperature, 230 V on output, high ripple |
| Operating temperature | -40…+65 °C (forced ventilation) |
| Protection rating | IP21 |
| Dimensions | 595 × 295 × 160 mm (24 V) |
| Weight | ≈29 kg |
| Parallel / Three-phase | No |
Compatibilities
Integration with BMV-712 Smart, VE.Direct-USB, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Requires appropriate DC wiring and protections for 24 V (MEGA/MIDI fuses, disconnect switch, DC circuit breaker) according to working current.
The Victron Phoenix Smart Inverter 24V 5000VA 24/5000 offers professional-level power, control, and reliability for the most demanding 24 V installations.
