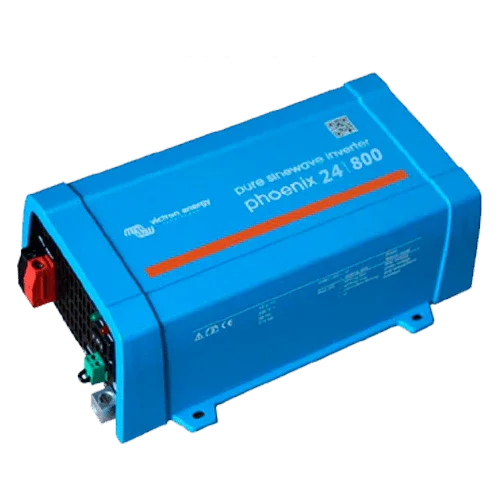

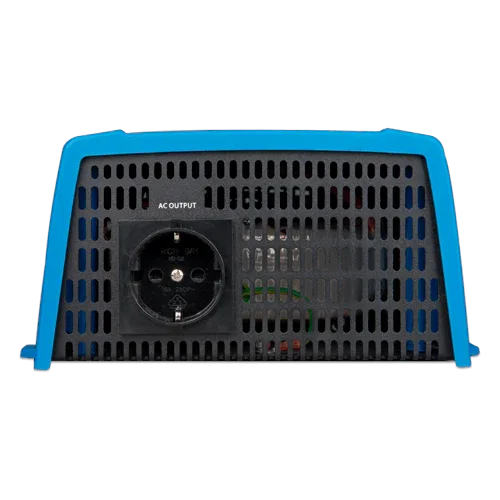

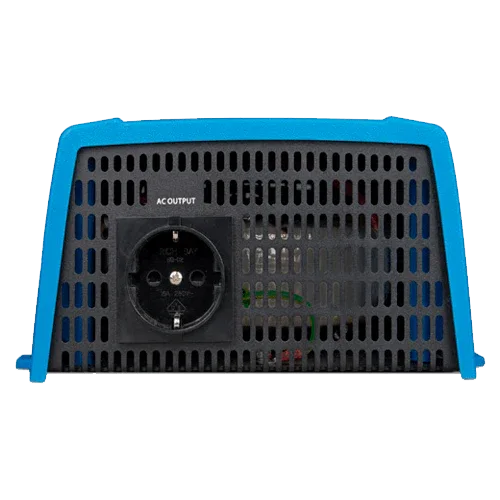

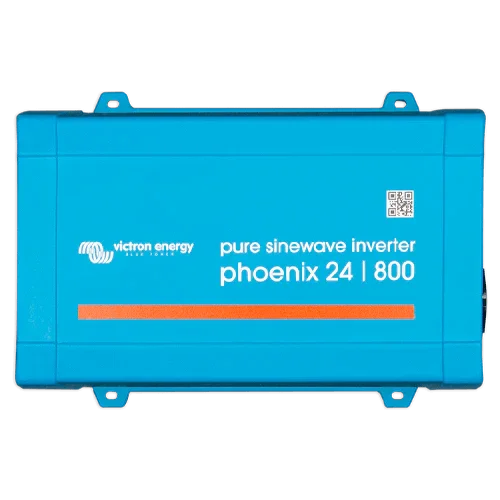

Victron Phoenix VE.Direct Inverter 24V 800VA 24/800
Modelo: Phoenix VE.Direct 24/800- Sku: VICTINV072
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix VE.Direct 24V 800VA 24/800 is designed for those who need more continuous power and a high peak start while maintaining a compact size and maximum efficiency. It converts 24 V DC into 230 V AC pure sine wave to power sensitive equipment and loads with high transient demands. Its VE.Direct port facilitates adjustment and monitoring with VictronConnect, and the ECO mode reduces consumption when there is no load, significantly extending the autonomy of the battery bank.
Main Features
- Continuous power: 800 VA (≈650 W at 25 °C) and peak power 1500 W for starting demanding loads.
- 24 V input (≈18.4–34 V DC) with fully configurable low/high voltage thresholds and recovery.
- 230 V 50/60 Hz adjustable output; pure sine wave for electronics and small motors.
- VE.Direct port for advanced configuration, alarm logging, and real-time monitoring.
- ECO mode: standby consumption ≈1 W with configurable polling period.
- Comprehensive protections: short circuit, overload, overtemperature, high/low Vbat, and DC ripple.
Advantages or Benefits
- Reliably starts small pumps, light compressors, compact microwaves, or tools with high peak demand.
- Stable grid quality that prevents noise, overheating, and disconnections in sensitive equipment.
- Optimizes the available system energy thanks to its high efficiency and ultra-low standby.
- Flexible configuration to adapt to each application and consumption profile.
- Quick integration with the Victron ecosystem for local or remote control and preventive maintenance.
Purpose or Applications
Ideal for advanced campers, boats, mobile workshops, and off-grid 24 V solar systems that require more sustained power, high starting capacity, and intelligent control without compromising efficiency.
Technical Specifications
| Continuous power | 800 VA (≈650 W at 25 °C) |
| Peak power | 1500 W |
| Input voltage | ≈18.4–34 V DC (LVD/recovery adjustable) |
| Output | 230 V AC ±3 % | 50/60 Hz ±0.1 % (adjustable) |
| Max. efficiency | ≈92 % |
| No-load consumption | ≈7–9 W |
| ECO mode consumption | ≈1 W |
| Wave type | Pure sine wave |
| Connectivity | VE.Direct (USB / Bluetooth via accessories) |
| Protections | SC, overload, high T°, high/low Vbat, DC ripple |
| Operating temperature | -40…+65 °C (derating >25 °C) |
| IP rating | IP21 |
| Dimensions | 86 × 165 × 260 mm |
| Weight | ≈3.8 kg |
| Standards | EN/IEC 62109-1, EMC; ECE R10 |
Compatibilities
Recommended accessories: VE.Direct-USB cable, VE.Direct-Bluetooth Smart Dongle, Filax automatic transfer switch, BMV/SmartShunt monitors, On/Off remote switch, and VictronConnect app. Use with 24 V batteries and DC protections suitable for the power.
The Victron Phoenix VE.Direct 24V 800VA 24/800 offers power, efficiency, and professional control for mobile and solar applications that require high performance at 24 V.
