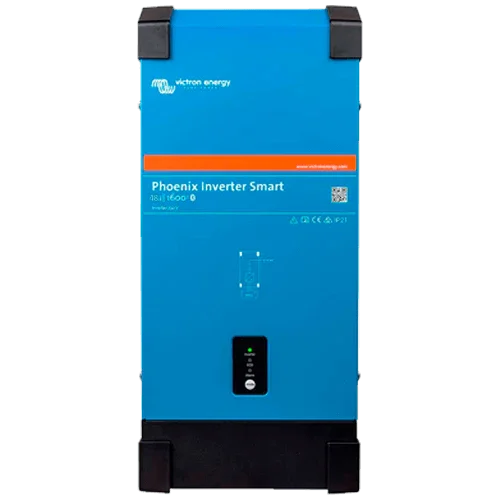

Victron Phoenix Smart Inverter 48V 1600VA 48/1600
Modelo: Phoenix Smart 48/1600- Sku: VICTINV089
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 48V 1600VA 48/1600 converts 48 VDC into 230 VAC pure sine wave with maximum reliability, efficiency, and control. It integrates Bluetooth for configuration via the VictronConnect app, VE.Direct port for monitoring and connection to GX devices, ECO mode for ultra-low consumption, and a programmable relay to automate alarms or generator start. Its professional electronics ensure stable operation with protection against short circuits, overloads, and temperature, making it a perfect solution for caravans, boats, and off-grid 48 V solar systems that require high-quality power.
Main Features
- Continuous power: 1600 VA (≈1300 W at 25 °C) with a peak of 3000 W for demanding startups.
- Input 48 VDC (typical range 38–66 V) and output 230 VAC ±2% at 50/60 Hz.
- Integrated Bluetooth and VE.Direct for configuration, logging, and remote control.
- Very low standby consumption and ECO mode ≈2.1 W for maximum autonomy.
- Programmable relay and remote on/off interface for professional integration.
- IP21 metal enclosure, wide thermal range, and complete electronic protections.
Advantages or Benefits
- Pure sine wave output protects sensitive equipment (IT, audio, chargers, instrumentation).
- Reliable startup of loads with high inrush such as pumps or compressors thanks to the 3000 W peak.
- Smart management from your mobile: cutoff thresholds, ECO, alarms, and remote start.
- High efficiency and minimal standby consumption to maximize the 48 V battery.
- Immediate integration into Victron ecosystems with data logging and simple diagnostics.
Purpose or Applications
Recommended for campers and caravans with a 48 V battery bank, recreational boating, technical cabins, telecom, small off-grid homes, and mobile businesses that need stable 230 V with moderate peaks and advanced remote control.
Technical Specifications
| Model | Phoenix Smart 48/1600 |
| Continuous power | 1600 VA (≈1300 W at 25 °C) |
| Peak power | 3000 W |
| Input voltage | 48 VDC (≈38–66 V) |
| Output | 230 VAC ±2% | 50/60 Hz | pure sine wave |
| Max. efficiency | ≈94 % |
| No-load consumption | ≈8–10 W (ECO ≈2.1 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm/undervoltage/generator start) |
| Protections | Short circuit, overload, high/low voltage, overtemperature, 230 V on output, high ripple |
| Operating temperature | -40…+65 °C |
| Protection rating | IP21 |
| Dimensions | 485 × 219 × 125 mm |
| Weight | ≈12 kg |
| Parallel/Three-phase | No |
| Certification | ECE R10 |
Compatibilities
Compatible with BMV-712 Smart, VE.Direct-USB interface, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Use appropriate DC protections (MEGA/MIDI fuses, disconnect switch, and DC circuit breaker) and cabling sized for 48 V.
The Victron Phoenix Smart Inverter 48V 1600VA 48/1600 provides clean power, smart control, and efficiency to bring professional energy to your 48 V projects.
