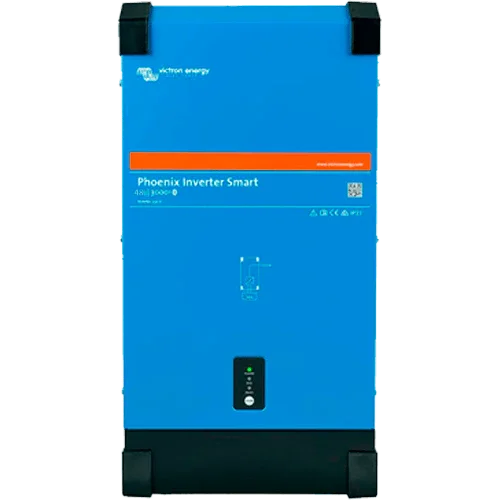

Victron Phoenix Smart Inverter 48V 3000VA 48/3000
Modelo: Phoenix Smart 48/3000- Sku: VICTINV091
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 48V 3000VA 48/3000 provides 3000 VA continuous (≈2400 W at 25 °C) with a peak of 6000 W, guaranteeing 230 V pure sine wave for sensitive equipment. It incorporates Bluetooth for configuration via VictronConnect, a VE.Direct port for monitoring and connection to GX devices, as well as an ultra-low consumption ECO mode and a programmable relay to automate alarms or generator start. It is a robust and efficient solution for 48 V systems in mobile or fixed installations.
Main Features
- Continuous power 3000 VA (≈2400 W) and peak 6000 W.
- Input 48 VDC (≈38–66 V) and output 230 VAC ±2% at 50/60 Hz.
- Integrated Bluetooth and VE.Direct for control and data logging.
- Efficiency ≈95%; no-load consumption ≈13 W; ECO mode ≈2.1 W.
- Programmable relay and remote on/off interface for advanced integration.
- Comprehensive electronic protections; IP21 metal enclosure.
Advantages or Benefits
- Clean energy for sensitive electronics and appliances without buzzing or voltage drops.
- Safe start of compressors, pumps, and tools thanks to the high peak.
- Greater autonomy of the 48 V battery bank due to its high efficiency and ECO mode.
- Simple management and diagnostics from a mobile device or a GX system.
- Professional installation with Victron accessories and ecosystem.
Purpose or Applications
Ideal for campers and boats with a 48 V battery bank, telecom, technical cabins, and off-grid homes that require stable 230 V with high starting peaks and remote control.
Technical Specifications
| Model | Phoenix Smart 48/3000 |
| Continuous power | 3000 VA (≈2400 W at 25 °C) |
| Peak power | 6000 W |
| Input voltage | 48 VDC (≈38–66 V) |
| Output | 230 VAC ±2% | 50/60 Hz | pure sine wave |
| Max. efficiency | ≈95% |
| No-load consumption | ≈13 W (ECO ≈2.1 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm/undervoltage/generator start) |
| Protections | Short circuit, overload, high/low voltage, overtemperature, 230 V on output, high ripple |
| Protection rating | IP21 |
| Dimensions | 485 × 285 × 150 mm |
| Weight | ≈19 kg |
| Parallel / Three-phase | No |
Compatibilities
Compatible with BMV-712 Smart, VE.Direct-USB interface, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Use appropriate DC wiring and protections (MEGA/MIDI fuses, isolator, and DC circuit breaker) at 48 V.
The Victron Phoenix Smart Inverter 48V 3000VA 48/3000 combines power, control, and efficiency to provide professional energy to your 48 V projects.
