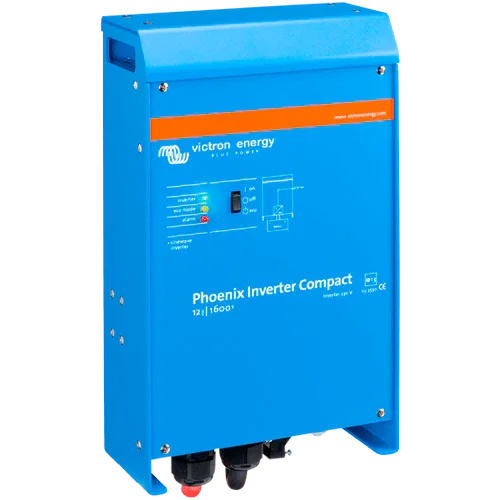

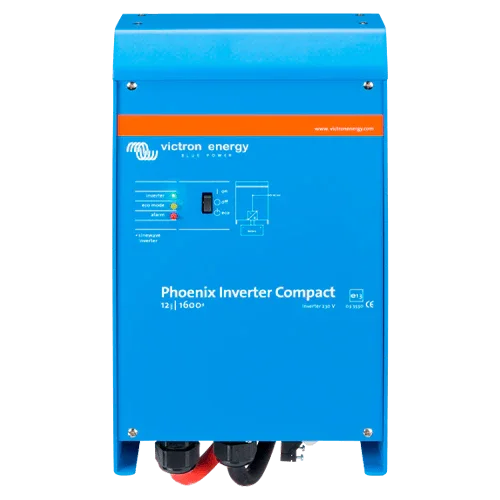

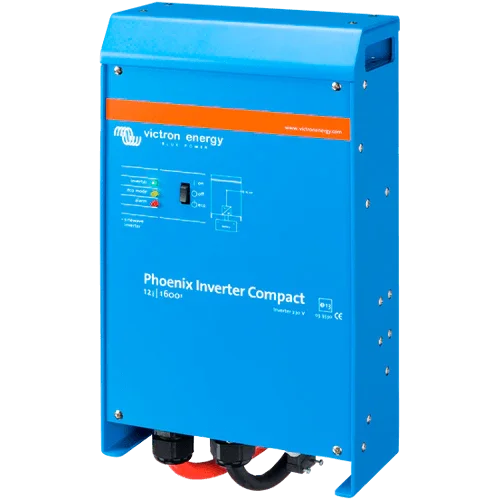

Victron Phoenix Compact Inverter 12V 1600VA C 12/1600
Modelo: Phoenix Compact 12/1600- Sku: VICTINV063
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix C 12V 1600VA C 12/1600 is a professional-grade 12 V inverter that converts the energy from your battery bank into 230 V pure sine wave. Its SinusMax design provides superior start-up capacity and high efficiency, maintaining a compact size and the reliability that characterizes Victron Energy.
Main Features
- Continuous power: 1600 VA (≈1300 W at 25 °C) with a peak of 3000 W for motors, pumps, and compressors.
- DC input 12 V: 9.5–17 V; output 230 V ±2 %, 50/60 Hz configurable.
- Maximum efficiency of approximately 92 % with AES and Search power-saving modes to reduce standby consumption to ~2–5 W.
- Comprehensive protections: battery undervoltage/overvoltage, overload, short circuit, overtemperature, and 230 V output detection.
- Professional construction: aluminum housing, IP21, active ventilation, and wide thermal operating range.
- Remote on/off and compatibility with the Victron ecosystem for diagnostics and control.
Advantages or Benefits
- Pure sine wave for full compatibility with sensitive electronic equipment, appliances, and tools.
- High peak margin prevents dropouts or restarts when starting demanding inductive loads.
- Lower battery consumption during standby periods thanks to AES/Search modes.
- Quick installation in vehicles, boats, or technical cabins due to its compact format and accessible connections.
- High durability and support from a leading manufacturer in off-grid solutions.
Purpose or Applications
Recommended for advanced campers, workshop vans, medium-length boats, telecom, portable tools, professional lighting, and backup of critical loads in isolated homes with 12 V systems.
Technical Specifications
| Continuous power (25 °C) | 1600 VA (≈1300 W) |
| Continuous power (40 °C) | ≈1200 W |
| Peak power | 3000 W |
| DC input voltage | 9.5–17 V |
| AC output | 230 V ±2 % | 50/60 Hz ±0.1 % |
| Max. efficiency | ≈92 % |
| No-load consumption | ~8 W (AES ~5 W | Search ~2 W) |
| Protection | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | 375 × 214 × 110 mm (compact) |
| Weight | ≈10 kg |
| Operating temperature | -40 °C to +65 °C (with ventilation) |
| Connectivity | Remote On/Off; Victron accessories (optional) |
| Housing | Aluminum, blue RAL 5012 |
Compatibilities
Direct compatibility: 12 V battery banks in medium-power mobile and off-grid applications.
Compatible accessories (not included): BMV monitor for battery status, Phoenix Inverter Control panel, MK3-USB interface and VictronConnect for configuration, GX devices (Cerbo GX) for monitoring, as well as DC/AC protections, MEGA/MIDI fuse holders, and suitable cabling.
If you are looking for reliability and performance in 12 V, the Victron Phoenix C 12V 1600VA C 12/1600 is the ideal choice: stable pure sine wave, high peak capacity, and optimized consumption to maximize autonomy.
