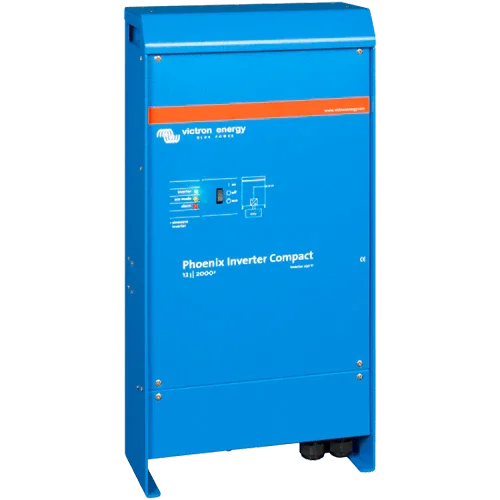

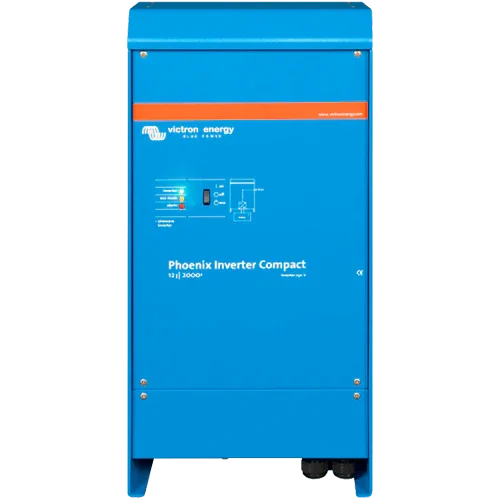

Victron Phoenix Compact Inverter 12V 2000VA C 12/2000
Modelo: Phoenix Compact 12/2000- Sku: VICTINV064
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix C 12V 2000VA C 12/2000 is a professional inverter that converts 12 V energy into 230 V pure sine wave with high performance and total reliability. Its SinusMax architecture offers great start-up capacity for inductive loads, while the energy-saving modes reduce standby consumption and extend battery bank autonomy. It is the ideal option for advanced campers, boats, technical cabins, and off-grid systems of small and medium power.
Main Features
- Continuous power: 2000 VA (≈1600–1700 W at 25 °C) with peak of 4000 W for motors, pumps, and compressors.
- DC input 12 V: 9.5–17 V; stabilized output 230 V ±2 %, 50/60 Hz selectable.
- Max. efficiency ≈92–93 % and AES/Search modes that reduce no-load consumption to ~2–5 W.
- Protections: battery undervoltage/overvoltage, overload, short circuit, overtemperature, and status indication via LED/alarm.
- Management and control: remote on/off and VE.Bus port for integration with the Victron ecosystem.
- Robust construction: aluminum chassis, IP21, controlled ventilation, and wide thermal range.
Advantages or Benefits
- Pure sine wave: full compatibility with sensitive equipment (IT, audio, precision electronics).
- High start-up reserve to prevent drops when starting inductive loads.
- Very low standby consumption, key to maximizing autonomy in off-grid applications.
- Compact installation and minimal maintenance, with support from a leading brand.
- Scalable and monitorable within the Victron ecosystem (GX, VictronConnect app).
Purpose or Applications
Suitable for caravans and camper vans with medium appliances, recreational boats, portable tools on site, telecom, home automation in shelters, and as backup for essential loads in off-grid homes at 12 V.
Technical Specifications
| Continuous power (25 °C) | 2000 VA (≈1600–1700 W) |
| Continuous power (40 °C) | ≈1400–1500 W |
| Peak power | 4000 W |
| Input voltage | 9.5–17 V DC |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈92–93 % |
| No-load consumption | ~10 W (AES ~5 W | Search ~2 W) |
| Protection | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | ≈520 × 255 × 125 mm |
| Weight | ≈13–14 kg |
| Temperature range | -40 °C to +65 °C (with derating) |
| Connectivity | Remote On/Off, VE.Bus (monitoring and control) |
| Enclosure | Aluminum, Victron blue |
Compatibilities
Direct compatibility with 12 V battery banks in mobile and off-grid systems.
Compatible accessories (not included): BMV/SmartShunt battery monitor, Phoenix Inverter Control panel, MK3-USB interface and VEConfigure software, GX devices (e.g., Cerbo GX), MEGA/MIDI fuse holders, disconnectors, and suitable DC/AC protections.
The Victron Phoenix C 12V 2000VA C 12/2000 combines stable pure wave, high peak, and optimized consumption, providing reliability and autonomy in professional 12 V applications.
