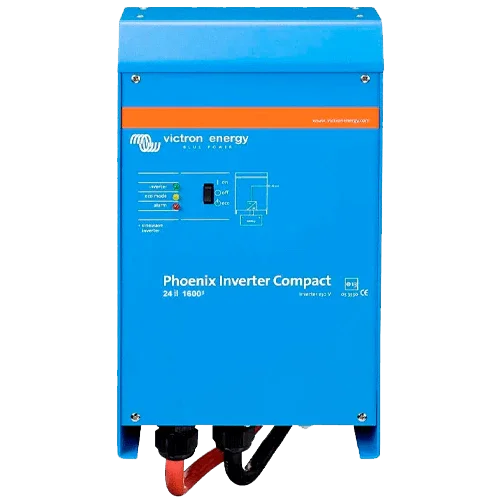

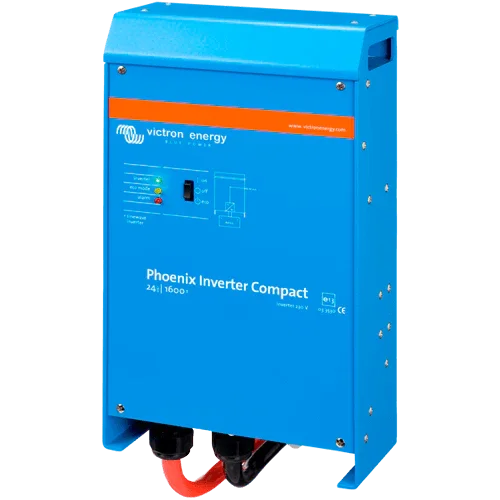

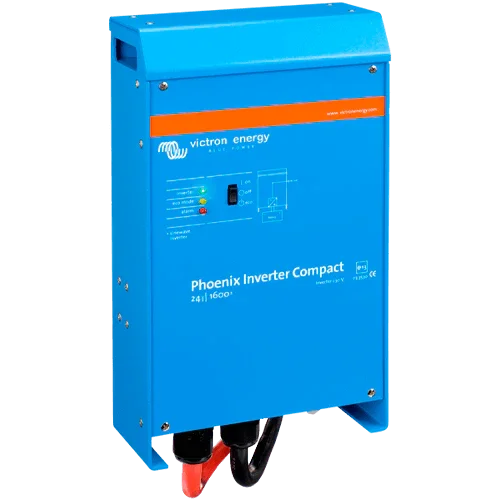

Victron Phoenix Compact Inverter 24V 1600VA C 24/1600
Modelo: Phoenix Compact 24/1600- Sku: VICTINV074
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix C 24V 1600VA C 24/1600 is a professional inverter that converts 24 V battery power into 230 V pure sine wave, ensuring maximum compatibility with sensitive equipment and inductive loads. Based on Victron's renowned SinusMax technology, it offers high peak capacity, outstanding reliability, and highly optimized consumption management thanks to AES and Search saving modes, resulting in greater autonomy and fewer discharge cycles for your battery bank.
Main Features
- Continuous power: 1600 VA (≈1300 W at 25 °C) and 3000 W peak for starting compressors, pumps, and tools.
- DC input 24 V: 19–33 V; stabilized output 230 V ±2 %, 50/60 Hz selectable.
- Max efficiency ≈92 % with AES/Search modes reducing standby consumption to ~2–5 W.
- Advanced protections: battery undervoltage/overvoltage, overload, short circuit, temperature, and 230 V detection.
- Robust construction: aluminum chassis with IP21 protection and controlled ventilation.
- Remote on/off and compatibility with the Victron ecosystem for monitoring and control.
Advantages or Benefits
- Pure sine wave that protects your machinery and electronics, preventing noise, overheating, and failures.
- Wide peak margin ensuring reliable start-up of inductive loads without voltage drops.
- Ultra-low standby consumption; ideal when the priority is to preserve available energy.
- Compact format and clear wiring for installations in vehicles, boats, or technical rooms.
- Victron industrial reliability with support, spare parts, and full integration with GX devices.
Purpose or Applications
Perfect for 24 V campers and workshop vans, medium-length boats, telecom and security, professional portable equipment, site cabins, and off-grid homes requiring medium power with high wave quality.
Technical Specifications
| Continuous power (25 °C) | 1600 VA (≈1300 W) |
| Continuous power (40 °C) | ≈1200 W |
| Peak power | 3000 W |
| DC input voltage | 19–33 V |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈92 % |
| No-load consumption | ~8 W (AES ~5 W | Search ~2 W) |
| Protection | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | 375 × 214 × 110 mm (compact) |
| Weight | ≈10 kg |
| Temperature range | -40 °C to +65 °C (with derating) |
| Connectivity | Remote On/Off; integration with GX devices and VictronConnect |
| Enclosure | Aluminum, Victron blue color |
Compatibilities
Direct compatibility with 24 V battery banks for mobile and off-grid applications.
Compatible accessories (not included): BMV/SmartShunt battery monitors, Phoenix Inverter Control panel, MK3-USB interface for VEConfigure, GX devices (Cerbo GX), MEGA/MIDI fuse holders, disconnectors, and DC/AC protections.
The Victron Phoenix C 24V 1600VA C 24/1600 combines efficiency, pure sine wave, and high peak capacity, providing a solid and professional foundation for 24 V systems.
