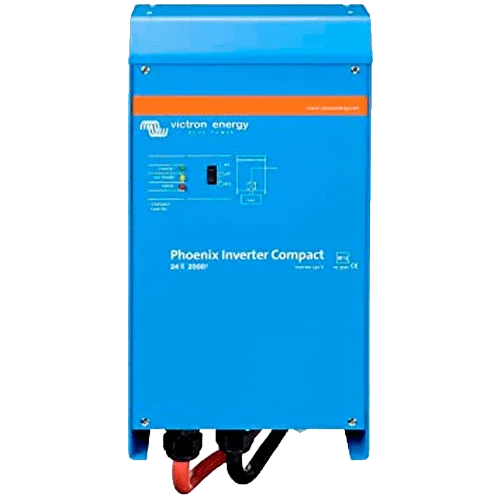

Victron Phoenix Compact Inverter 24V 2000VA C 24/2000
Modelo: Phoenix Compact 24/2000- Sku: VICTINV075
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix C 24V 2000VA C 24/2000 is a high-performance inverter for 24 V systems that provides 230 V pure sine wave with the renowned reliability of Victron Energy. Thanks to SinusMax electronics, it delivers a large peak reserve to start heavy loads without voltage drops, while the AES and Search power-saving modes reduce standby consumption, maximizing battery bank autonomy. It is an ideal solution for advanced campers, boats, technical cabins, telecom, and off-grid homes with medium demands.
Main Features
- Continuous power: 2000 VA (≈1600–1700 W at 25 °C) and peak of 4000 W for motors and compressors.
- DC input 24 V: 19–33 V; stabilized output 230 V ±2 %, 50/60 Hz selectable.
- Max. efficiency ≈92–93 % with AES/Search modes lowering idle consumption to ~2–5 W.
- Protections: battery undervoltage/overvoltage, overload, short circuit, and overtemperature with alarms.
- Management and control: remote on/off and VE.Bus port for integration with GX equipment.
- Professional chassis: aluminum with IP21, forced ventilation, and wide thermal range.
Advantages or Benefits
- Pure sine wave that protects electronic equipment, tools, and high-efficiency appliances.
- Reliable start of inductive loads thanks to its large peak reserve.
- Lower standby consumption, key in off-grid or marine systems where energy is limited.
- Clean and scalable installation, with local or remote monitoring within the Victron ecosystem.
- Quality and support from a leading manufacturer in off-grid energy solutions.
Purpose or Applications
Recommended for motorhomes and 4x4 expedition vehicles at 24 V, boats with refrigeration and power tools, pump houses, telecom, and off-grid homes with medium loads that require reliability and quality of wave.
Technical Specifications
| Continuous power (25 °C) | 2000 VA (≈1600–1700 W) |
| Continuous power (40 °C) | ≈1400–1500 W |
| Peak power | 4000 W |
| DC input voltage | 19–33 V |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈92–93 % |
| Idle consumption | ~10 W (AES ~5 W | Search ~2 W) |
| Protection | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | ≈520 × 255 × 125 mm |
| Weight | ≈13–14 kg |
| Operating temperature | -40 °C to +65 °C (with derating) |
| Connectivity | VE.Bus, remote On/Off, configuration with MK3-USB and VictronConnect |
| Enclosure | Aluminum, Victron blue |
Compatibilities
Direct compatibility with 24 V battery banks in mobile and off-grid systems of medium power.
Compatible accessories (not included): BMV/SmartShunt for SOC, Phoenix Inverter Control panel, MK3-USB interface, and VRM platform via GX devices (Cerbo GX); as well as MEGA/MIDI fuse holders, disconnectors, and suitable DC/AC protection panels.
With its pure sine wave, high peak, and optimized consumption, the Victron Phoenix C 24V 2000VA C 24/2000 is a solid and professional solution for 24 V projects that demand performance and reliability.
