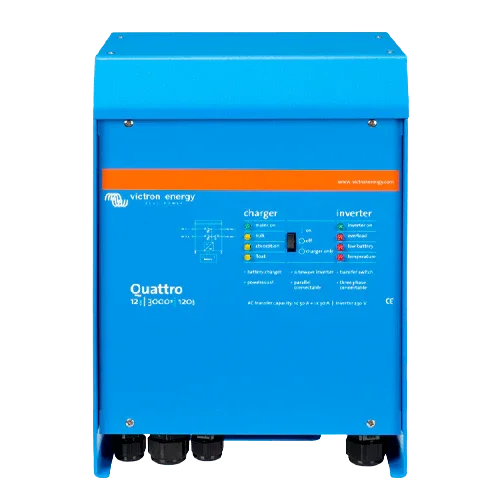

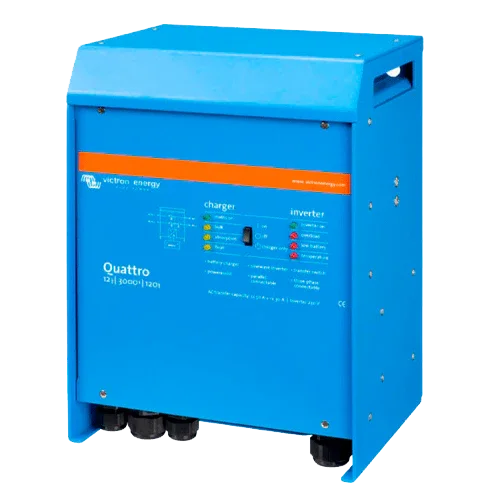

Inverter with Charger Victron Quattro 12V 3000VA 12/3000/120-50/50
Modelo: Quattro 12/3000/120-50/50- Sku: VICTINV014
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 12V 3000VA 12/3000/120-50/50 is a professional inverter with charger that integrates two independent AC inputs (for example, grid and generator) and a main "no-break" output for absolute continuity. With 3000 VA of power, a 120 A charger, and intelligent PowerAssist management, it is designed for demanding 12 V systems in residential, marine, caravan, or microgrid applications with a generator.
Main Features
- Power: 3000 VA (2400 W continuous at 25 °C) and 6000 W peak for motor starting.
- Dual AC input 2×50 A with automatic switching and main output without interruption (<20 ms).
- 12 V battery charger up to 120 A with absorption, float, and storage modes.
- Inverter efficiency up to ~94% and optimized no-load consumption (≈20 W; search mode ≈8–10 W).
- Parallel and three-phase operation via VE.Bus; programmable relays and 25 A auxiliary output.
- Monitoring and control with BMV/SmartShunt, Digital Multi Control, Cerbo/Color Control GX, VRM, and VE.Bus Smart Dongle.
Advantages or Benefits
- PowerAssist boosts available power by adding battery energy when the grid or generator is limited.
- "No-break" output: protects sensitive loads (IT, home automation, pumps) against micro-outages.
- Scalable: possibility to expand in parallel or form three-phase systems.
- Flexible integration with lead-acid or lithium battery banks (via BMS), with alarms and historical logging in VRM.
- Safety: protections against overload, short circuit, battery over/undervoltage, and overtemperature.
Purpose or Applications
Ideal for off-grid installations with generator, boats and recreational vehicles, self-consumption with backup, technical cabins, telecom, and microgrids where continuity and fine control of energy flow are required.
Technical Specifications
| Inverter power | 3000 VA / 2400 W (25 °C); 6000 W peak |
| Battery voltage | 12 V (range 9.5–17 V) |
| Charger | 120 A max.; Abs 14.4 V / Float 13.8 V / Storage 13.2 V |
| AC inputs | 2×50 A; 187–265 V, 45–65 Hz |
| "No-break" output | Switching <20 ms |
| Max. efficiency | ≈93–94% |
| No-load consumption | ≈20 W (search mode ≈8–10 W) |
| Auxiliary output | 25 A when AC input is present |
| Interfaces | VE.Bus; programmable relay; general-purpose communication ports |
| Protection | IP21; integrated electrical and thermal protections |
| Dimensions / weight | 362×258×218 mm; 19 kg |
| Operating temp. | −40 °C to +65 °C (active ventilation) |
Compatibilities
Official accessories: Digital Multi Control Panel, BMV-712/SmartShunt battery monitor, MK3-USB interface, VE.Bus Smart Dongle, Cerbo/Color Control GX, energy meters for feed-in control, and automatic generator start via relay. MPPT solar charge controller not included.
The Victron Quattro 12V 3000VA 12/3000/120-50/50 provides stable power, dual input sources, and intelligent management to ensure a reliable and efficient 12 V supply.
