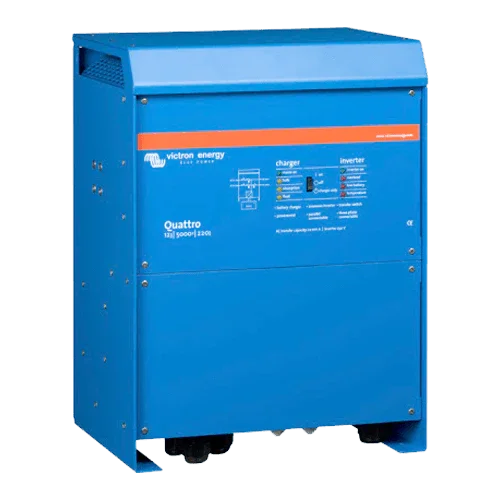

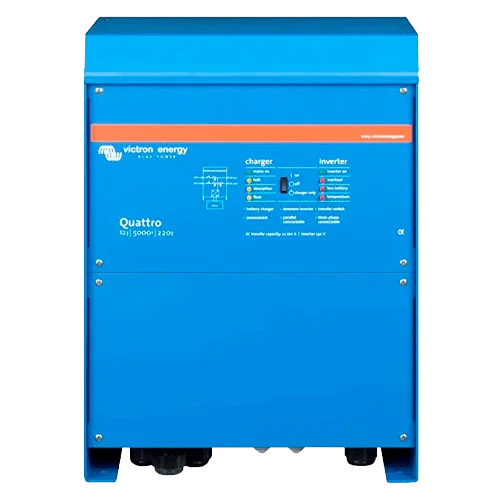

Inverter with Charger Victron Quattro 12V 5000VA 12/5000/220-100/100
Modelo: Quattro 12/5000/220-100/100- Sku: VICTINV015
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 12V 5000VA 12/5000/220-100/100 raises the bar in 12 V systems by combining a 5 kVA inverter with an ultra-fast 220 A charger and two independent AC inputs (grid and generator) with automatic switching. Its uninterrupted main output, PowerAssist function, and the ability to operate in parallel or three-phase make it the perfect core for off-grid homes, boats, and microgrids with high demands.
Main Features
- Power: 5000 VA (4000 W continuous at 25 °C) and 10,000 W peak for high starting currents.
- Dual AC input 2×100 A with integrated switch and “no-break” output (<20 ms).
- 12 V charger up to 220 A with Abs/Float/Storage phases for lead-acid and lithium support via BMS.
- Inverter efficiency ~94% and low idle consumption (≈30–35 W; search mode ≈10–15 W).
- Parallel operation (up to 6 units) and three-phase via VE.Bus; 50 A auxiliary output and programmable relay.
- Local/remote monitoring with BMV/SmartShunt, Digital Multi Control, Cerbo/Color Control GX, and VRM portal.
Advantages or Benefits
- PowerAssist prevents generator or grid overloads by adding power from the battery during peaks.
- Continuity for critical loads: the main output keeps sensitive equipment operational during outages.
- Ultra-fast recharging of 12 V battery banks thanks to 220 A, reducing engine/generator run times.
- Scalable and redundant system with parallel and/or three-phase operation.
- Advanced management and real-time alarms from app or web with no fees.
Purpose or Applications
High-consumption off-grid homes, yachts and cruising vessels, special vehicles, remote sites, and microgrids with generators where high peaks, minimal switching times, and fast 12 V bank recharging are required.
Technical Specifications
| Inverter power | 5000 VA / 4000 W (25 °C); 3700 W (40 °C); 3000 W (65 °C); 10,000 W peak |
| Battery voltage | 12 V (range 9.5–17 V) |
| Charger | 220 A max.; Abs 14.4 V / Float 13.8 V / Storage 13.2 V |
| AC inputs | 2×100 A; 187–265 V, 45–65 Hz |
| “No-break” output | Switching <20 ms |
| Max. efficiency | ≈94% |
| Idle consumption | ≈30–35 W (search mode ≈10–15 W) |
| Auxiliary output | 50 A when AC input is present |
| Interfaces | VE.Bus; programmable relay; general-purpose communication ports |
| Protection | IP21; overload, short circuit, over/undervoltage, overtemperature, etc. |
| Dimensions / weight | 470×350×280 mm; approx. 34 kg |
| Operating temp. | −40 °C to +65 °C (active ventilation) |
Compatibilities
Accessories and peripherals: Digital Multi Control panel, BMV-712/SmartShunt monitor, MK3-USB interface, VE.Bus Smart Dongle (Bluetooth), Cerbo/Color Control GX, energy meters for ESS/zero feed-in, and generator start contact via relay. Does not include MPPT solar charge controller.
With the Victron Quattro 12V 5000VA 12/5000/220-100/100 you get robust power, seamless switching, ultra-fast recharging, and total control for high-performance 12 V projects.
