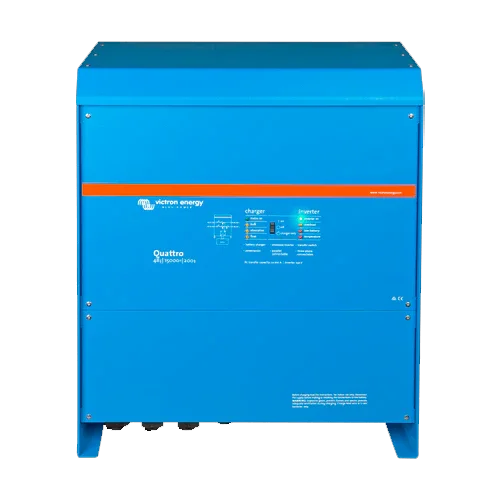

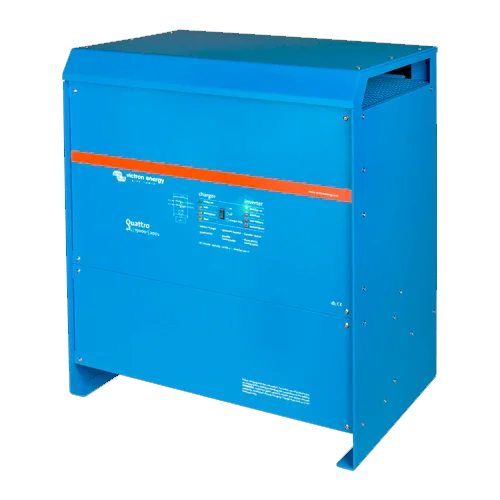

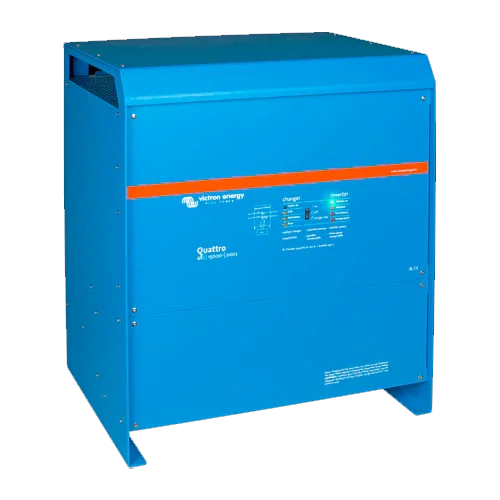

Inverter with Charger Victron Quattro 48V 15000VA 48/15000/200-100/100
Modelo: Quattro 48/15000/200-100/100- Sku: VICTINV053
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 48V 15000VA 48/15000/200-100/100 is the most powerful inverter with charger in the Quattro family for 48 V. It integrates two independent AC inputs (for example, grid and generator) with automatic switching, maintaining a main “no-break” output. With 15 kVA of continuous power, an ultra-fast 200 A charger, and PowerAssist/PowerControl functions, it offers total continuity, intelligent energy management, and professional monitoring through the GX ecosystem and the VRM portal. It is the reference Victron solution for high-consumption homes, businesses, and microgrids where high peaks, dual AC source, and reliable remote control are required.
Main Features
- Output power: 15,000 VA (pure sine wave) with enormous peak capacity for starting motors and inductive loads.
- Dual AC input 2×100 A (grid and generator) with ultra-fast transfer that keeps the main output uninterrupted (<20 ms).
- 48 V battery charger up to 200 A with Absorption/Float/Storage charging curves and lithium compatibility via BMS.
- PowerAssist and PowerControl: limits input current and adds energy from the battery to avoid tripping during peaks.
- Parallel operation (up to 6 units) and possibility of three-phase systems via VE.Bus.
- Advanced monitoring and control with Digital Multi Control, Cerbo/Color Control GX, VE.Bus Smart Dongle, and VRM portal (no fees).
Advantages or Benefits
- Guaranteed continuity for critical loads thanks to the “no-break” output and imperceptible transfer time.
- Fewer generator hours: the 200 A charger shortens recharge cycles and PowerAssist covers temporary peaks.
- Scalability and redundancy: grows in parallel or forms three-phase systems, ideal for modular microgrids.
- Comprehensive remote control: alarms, history, and settings from VRM; predictive maintenance and easier technical support.
- Safety and robustness: protections against overload, short circuit, battery over/undervoltage, and overtemperature.
Purpose or Applications
Recommended for high-consumption residences, commercial and light industrial applications, medium-large yachts and vessels, telecom and technical cabins, as well as microgrids with generator where seamless switching, dual AC source, high peak capacity, and fast recharging of 48 V banks are essential.
Technical Specifications
| Inverter power | 15,000 VA; high starting peak for inductive loads |
| Battery voltage | 48 V (typical range 38–66 V) |
| Charger | 200 A max.; Abs 57.6 V / Float 55.2 V / Storage 52.8 V |
| AC inputs | 2×100 A; 187–265 V; 45–65 Hz |
| Main output | “No-break”, switching <20 ms |
| Auxiliary output | 100 A when AC input is present |
| Efficiency / consumption | High (≈95%); search mode to reduce idle consumption |
| Interfaces | VE.Bus; programmable relay; compatible with Cerbo/CCGX, Digital Multi Control, and VE.Bus Smart Dongle |
| Protection | IP21; overload, short circuit, battery over/undervoltage, and overtemperature |
| Dimensions / weight | ≈470 × 350 × 280 mm; ≈50–55 kg |
| Operating temperature | −40 °C to +65 °C (forced ventilation) |
Compatibilities
Compatible accessories and peripherals: Digital Multi Control Panel (current limit and PowerAssist), BMV-712 or SmartShunt, MK3-USB interface, VE.Bus Smart Dongle (Bluetooth), Cerbo/Color Control GX, and single-phase/three-phase energy meters for ESS or zero feed-in. Features a programmable relay for automatic generator start. Does not include MPPT solar regulator; to be combined with external Victron controllers whose information is displayed on the GX interface.
The Victron Quattro 48V 15000VA 48/15000/200-100/100 combines continuous power, dual AC source, and advanced remote management for 48 V systems that require absolute reliability, scalability, and a robust response to demand peaks.
