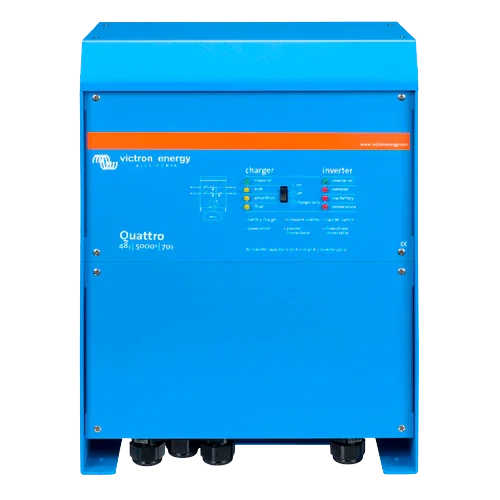

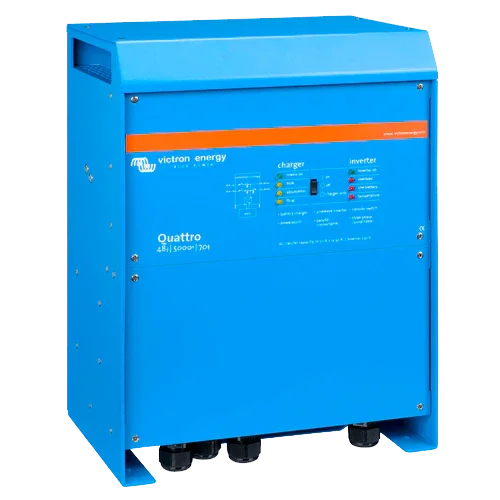

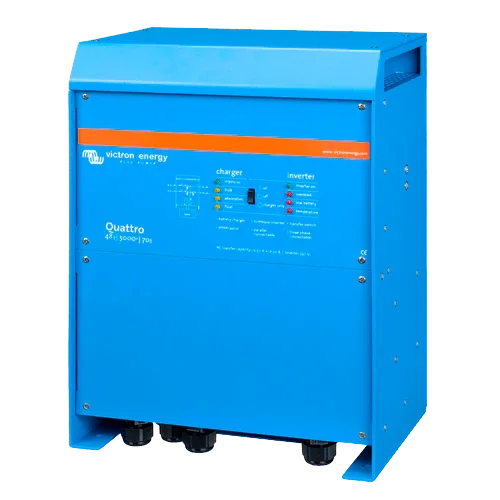

Inverter with Charger Victron Quattro 48V 5000VA 48/5000/70-100/100
Modelo: Quattro 48/5000/70-100/100- Sku: VICTINV049
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 48V 5000VA 48/5000/70-100/100 combines a pure 5 kVA inverter with a 70 A charger and two independent AC inputs (grid and generator) that switch automatically, maintaining an uninterrupted main output. With PowerAssist, parallel/three-phase operation via VE.Bus, and monitoring through the GX and VRM ecosystem, it is the ideal foundation for 48 V installations in self-consumption with backup, marine, or demanding off-grid projects.
Main Features
- Power: 5000 VA with high peak capacity to start inductive loads.
- Dual AC input 2×100 A with ultra-fast switching and “no-break” main output.
- 48 V charger up to 70 A with Abs/Float/Storage curves and compatibility with lithium batteries via BMS.
- PowerAssist and PowerControl: limits input current and supports with battery energy during peaks.
- Parallel (up to 6 units) and three-phase via VE.Bus; 100 A auxiliary output and programmable relay for generator.
- Connectivity with Digital Multi Control, BMV/SmartShunt, Cerbo/CCGX, VE.Bus Smart Dongle, and VRM portal.
Advantages or Benefits
- Service continuity for critical loads thanks to flicker-free switching (<20 ms).
- Intelligent energy management that reduces generator hours and prevents overload trips.
- Professional scalability: possibility to expand in parallel or form three-phase systems.
- Total remote control and historical logging for predictive maintenance.
- Comprehensive protections and robust design for intensive use.
Purpose or Applications
Homes and businesses with 48 V systems (ESS with zero feed-in), boats, campers, and isolated microgrids with generator, where dual AC source, continuity, and advanced control are required.
Technical Specifications
| Inverter power | 5000 VA; high start-up peak |
| Battery voltage | 48 V (typical range 38–66 V) |
| Charger | 70 A max.; Abs 57.6 V / Float 55.2 V / Storage 52.8 V |
| AC inputs | 2×100 A (187–265 V, 45–65 Hz) |
| Main output | “No-break” with switching <20 ms |
| Efficiency / consumption | Efficiency ≈95%; search mode for low idle consumption |
| Auxiliary output | 100 A when AC input is present |
| Interfaces | VE.Bus; programmable relay; compatible with GX/VRM |
| Protection | IP21; overload, short circuit, battery over/undervoltage, overtemperature |
| Dimensions / weight | ≈470 × 350 × 280 mm; ≈30–34 kg |
| Operating temperature | −40 °C to +65 °C (forced ventilation) |
Compatibilities
Digital Multi Control panel, BMV-712 or SmartShunt, MK3-USB, VE.Bus Smart Dongle, Cerbo/Color Control GX, energy meters (single-phase/three-phase) for ESS/zero feed-in, and automatic generator start via relay. Does not include MPPT solar regulator.
The Victron Quattro 48V 5000VA 48/5000/70-100/100 offers reliable power, dual AC input, and professional control for 48 V projects that demand continuity and advanced monitoring.
