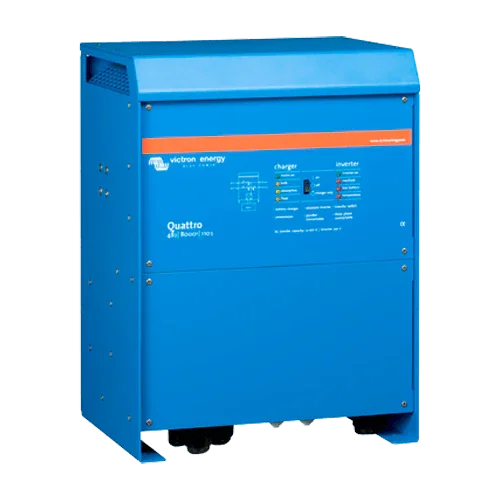

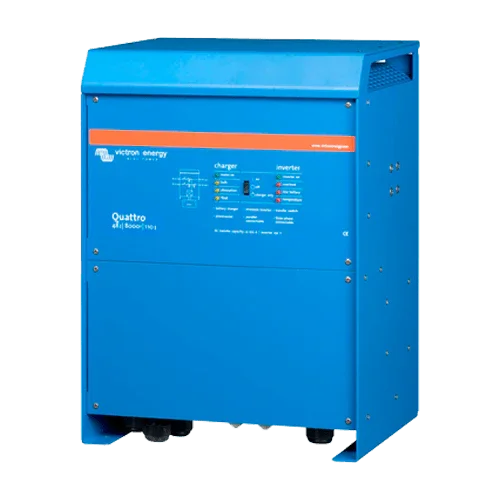

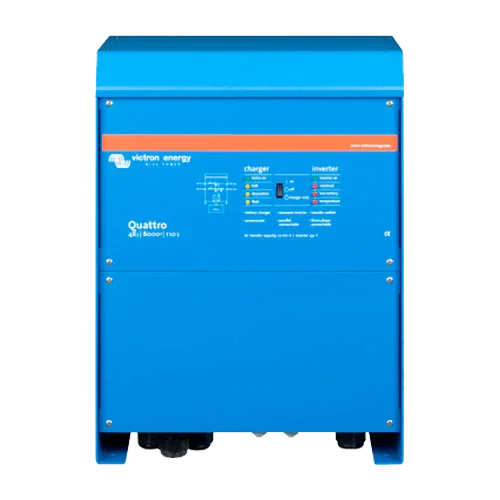

Inverter with Charger Victron Quattro 48V 8000VA 48/8000/110-100/100
Modelo: Quattro 48/8000/110-100/100- Sku: VICTINV051
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 48V 8000VA 48/8000/110-100/100 is designed for 48 V installations that require continuous power, electrical continuity, and advanced management. It integrates an 8 kVA pure sine wave inverter with a fast 110 A charger and two independent AC inputs (grid and generator) with automatic switching, maintaining the main output without interruption. Thanks to PowerAssist, VE.Bus, and monitoring with the GX ecosystem, it offers total control of energy flow, reducing generator hours and protecting critical loads.
Main Features
- Rated power: 8000 VA with high peak for starting demanding inductive loads.
- Dual AC input 2×100 A and main “no-break” output with ultra-fast switching (<20 ms).
- 48 V charger up to 110 A with Absorption, Float, and Storage stages; compatible with lithium via BMS.
- PowerAssist/PowerControl: limits input current and supplies energy from the battery during peaks.
- Parallel operation (up to 6 units) and three-phase via VE.Bus; 100 A auxiliary output and programmable relay.
- Monitoring and configuration with Digital Multi Control, Cerbo/CCGX, VRM app, and VE.Bus Smart Dongle.
Advantages or Benefits
- Electrical continuity without flicker for servers, pumps, and sensitive electronics.
- Fewer generator hours thanks to the 110 A charger and PowerAssist optimization.
- Scalability and redundancy in parallel and/or three-phase to grow with the installation.
- Professional remote control with alarms, historical logs, and configuration updates.
- Comprehensive protection against overload, short circuit, battery over/undervoltage, and temperature.
Purpose or Applications
Homes and businesses with 48 V systems, yachts and cruising vessels, special vehicles, technical cabins, telecom, and off-grid or generator-based installations where dual AC source, continuity, and high peak capacity are required.
Technical Specifications
| Inverter power | 8000 VA; high peak for startups |
| Battery voltage | 48 V (typical range 38–66 V) |
| Charger | 110 A max.; Abs 57.6 V / Float 55.2 V / Storage 52.8 V |
| AC inputs | 2×100 A (187–265 V, 45–65 Hz) |
| Main output | “No-break” (<20 ms) |
| Efficiency / consumption | High (~95%); search mode for low standby consumption |
| Auxiliary output | 100 A when AC input is present |
| Interfaces | VE.Bus, programmable relay; compatible with GX/VRM |
| Protection | IP21; integrated electrical and thermal protections |
| Dimensions / weight | ≈470 × 350 × 280 mm; ≈45–48 kg |
| Operating temperature | −40 °C to +65 °C (forced ventilation) |
Compatibilities
Digital Multi Control Panel, BMV-712 or SmartShunt, MK3-USB, VE.Bus Smart Dongle (Bluetooth), Cerbo/Color Control GX, energy meters (single-phase/three-phase) for ESS/zero feed-in and generator start by relay. Does not include MPPT; perfectly integrates external Victron solar controllers.
The Victron Quattro 48V 8000VA 48/8000/110-100/100 provides robust power, dual AC source, and advanced management for 48 V projects that demand reliability and professional monitoring.
Descargar ficha técnica
