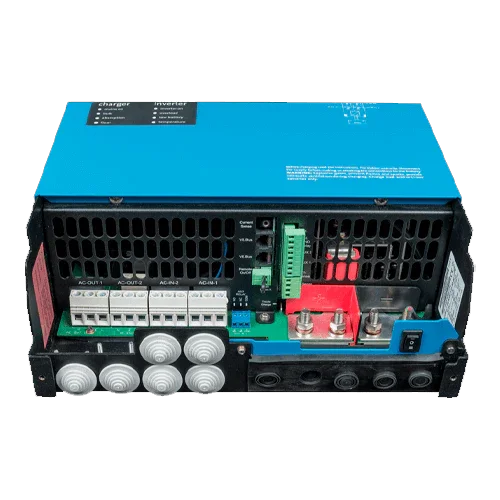

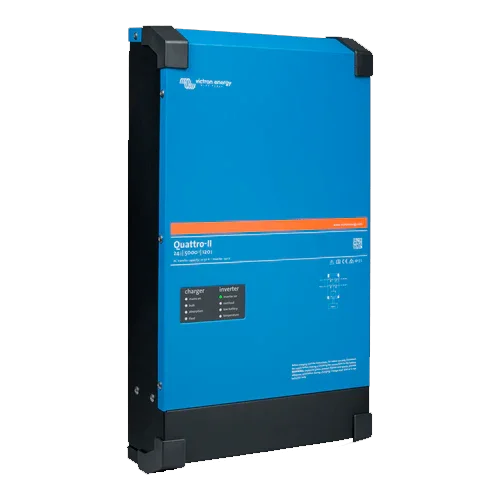

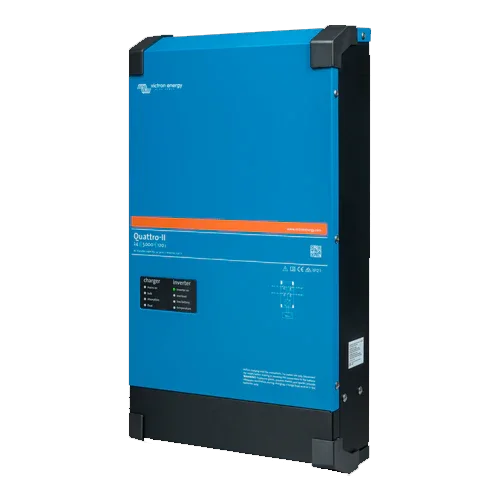

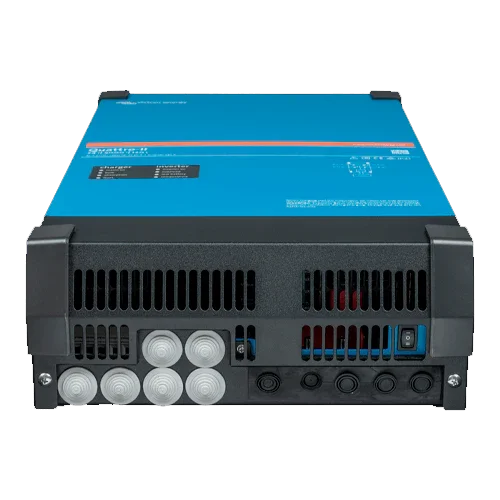

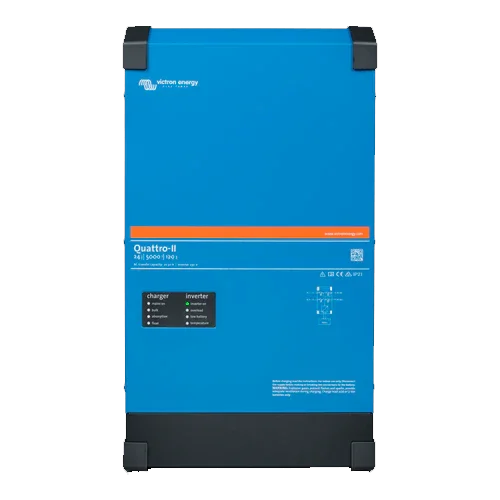

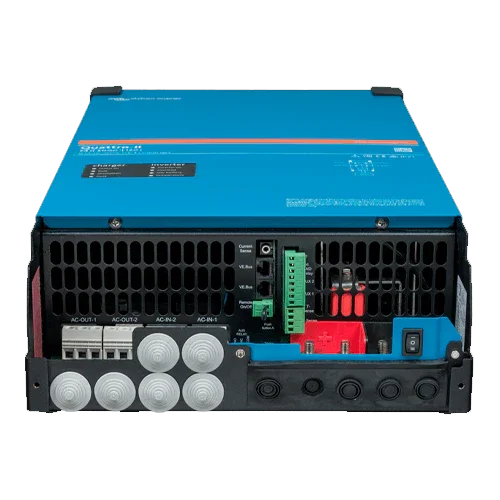

Inverter with Charger Victron Quattro-II 24V 5000VA 24/5000/120-50/50

Modelo: Quattro-II 24/5000/120-50/50

Sku: VICTINV032
Vendor: Victron

€2.724,92 EUR

€2.179,93 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron Quattro-II 24V 5000VA 24/5000/120-50/50 combines inverter and charger with dual AC input 50 A, 9000 W peak and 120 A charger. PowerAssist, VE.Bus and “no-break” output for 24 V systems with grid and generator.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron Quattro-II 24V 5000VA 24/5000/120-50/50 is a professional inverter with charger for 24 V systems that integrates two independent AC inputs (for example, grid and generator) with automatic switching and a main uninterrupted output. With 5 kVA apparent power, 9000 W peak, and a 120 A charger, it offers advanced energy management thanks to PowerAssist/PowerControl, ideal for self-consumption with backup, marine applications, camper vans, and microgrids in remote locations. Its VE.Bus architecture allows for parallel and three-phase expansions, and its robust design ensures reliability in intensive use.

Main Features

Power: 5000 VA (4000 W continuous at 25 °C), 9000 W peak for motor start and inductive loads.
Dual 50 A AC input (grid/generator) with automatic transfer and main “no-break” output (<20 ms).
24 V/120 A battery charger with absorption, float, and storage stages.
Maximum inverter efficiency of 96% and very low standby consumption (search mode ~2 W).
Two AC outputs: main uninterrupted and secondary active only when there is AC input (for non-critical loads).
Connectivity: VE.Bus for integration, 2 general-purpose communication ports, and “remote on/off” input.

Advantages or Benefits

PowerAssist adds energy from the batteries when the grid or generator cannot meet demand, preventing overloads.
Service continuity: the “no-break” output protects sensitive equipment against micro-outages and source changes.
Professional scalability: parallel operation (up to 6 units) and/or three-phase via VE.Bus.
Complete remote management with Cerbo/Color Control GX and VRM portal for alarms, history, and settings with no fees.
Fewer generator hours thanks to the 120 A charger and optimized energy flow.

Purpose or Applications

Off-grid or hybrid residential with generator, 24 V marine and camper, telecom and technical cabins, modular microgrids, and self-consumption projects with backup where dual AC source, minimal switching times, and fast battery bank recharge are required.

Technical Specifications

Inverter power	5000 VA / 4000 W (25 °C); 3700 W (40 °C); 3000 W (65 °C)
Peak	9000 W
Max. efficiency	96 %
No-load consumption	18 W (AES 12 W / search 2 W)
Battery voltage	24 V; DC range 19–33 V
Charger	120 A; Abs 28.8 V / Float 27.6 V / Storage 26.4 V; battery temperature sensor included
AC inputs	2×50 A; 187–265 VAC; 45–65 Hz; transfer 50 A
AC outputs	Main “no-break” (<20 ms) + auxiliary output 32 A (active only with AC input)
Interfaces	VE.Bus, 2×communication port, Remote on/off, programmable relay
Protection	IP22; overload, short circuit, battery over/undervoltage, overtemperature, etc.
Dimensions / weight	560×328×148 mm; 30 kg
Operating temperature	−40 °C to +65 °C (forced cooling)

Compatibilities

Accessories: Digital Multi Control Panel, VE.Bus Smart Dongle (Bluetooth), MK3-USB interface, Cerbo/Color Control GX, BMV-712 or SmartShunt monitors, energy meters (single/three-phase) for ESS, and automatic generator start via relay. Does not include MPPT solar charge controller; compatible with Victron solar controllers and with grid-tied inverters in ESS mode.

The Victron Quattro-II 24V 5000VA 24/5000/120-50/50 provides reliable power, dual input source, ultra-fast recharge, and total control to bring your 24 V system to maximum performance with professional monitoring.
