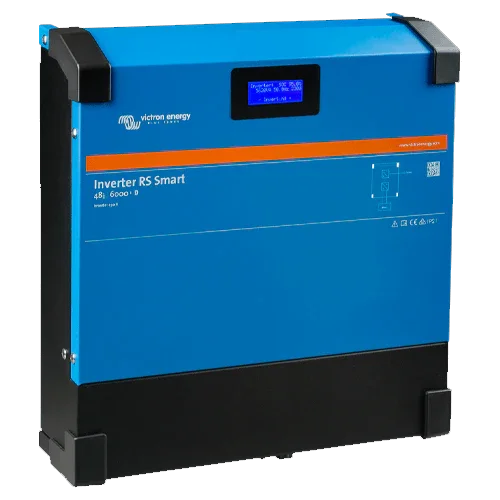

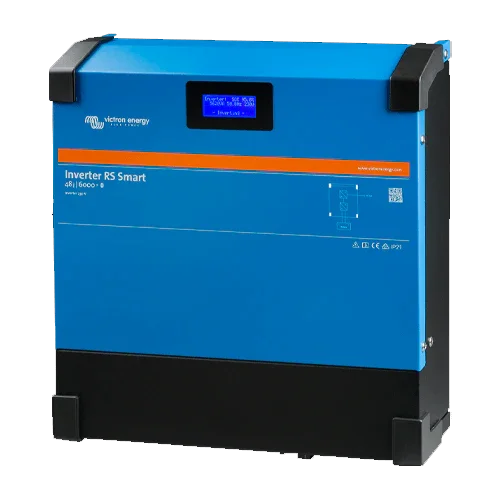

Victron RS Smart 48V 6000VA 48/6000 Inverter with Charger
Modelo: RS Smart 48/6000- Sku: VICTINV095
- Vendor: Victron
Specifications
Product Description
The Victron RS Smart Inverter 48V 6000VA 48/6000 with charger is designed for 48 V installations that demand maximum reliability, sustained power, and advanced control. It delivers 230 V pure sine wave with outstanding efficiency and also integrates a fully programmable 100 A battery charger. Its high-frequency architecture reduces weight and noise, while Bluetooth, VE.Can, and VE.Direct connectivity allow parameter configuration, data logging, and system monitoring from VictronConnect or GX devices. With 9 kW peak power, comprehensive protections, and a front display for local reading, it is a robust solution for off-grid homes, marine applications, premium campers, and light industrial systems.
Main Features
- High and stable continuous power with 9 kW peak for demanding startups.
- Integrated 100 A charger with adjustable absorption and float stages.
- Advanced connectivity: Bluetooth, VE.Can, and VE.Direct for full integration.

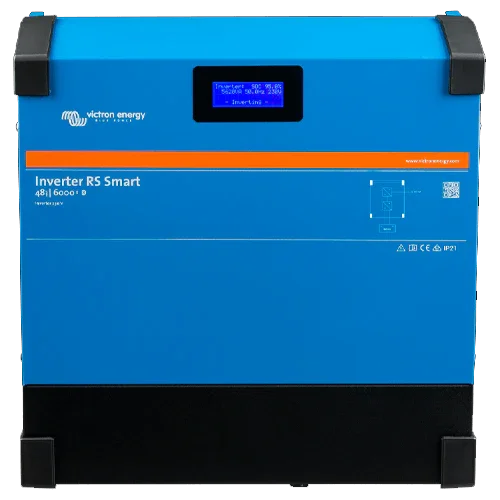

- Front display with battery and inverter data; programmable relay and analog I/O.
- Maximum efficiency up to ~96.5% and reduced standby consumption for greater autonomy.
- Silent operation, IP21 metal enclosure, and wide thermal operating range.
Advantages or Benefits
- Quality energy: pure sine wave to protect sensitive electronics and appliances.
- Safe startups: 9 kW peaks to drive compressors, pumps, and tools with high inrush current.

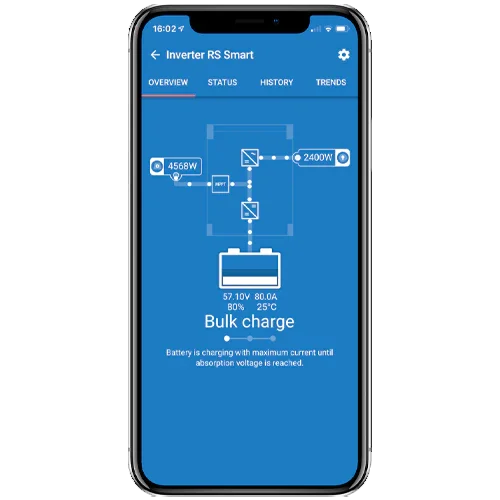

- Intelligent management: adjustment of voltages, alarms, logs, and remote updates.
- Lower system cost: the 100 A charger avoids additional equipment and simplifies wiring.
- Professional reliability: comprehensive protections, temperature sensor, and battery voltage probe.
Purpose or Applications
Ideal for high-performance off-grid solar systems, vessels with 48 V battery banks, campers and service vehicles with high consumption, off-grid micro-businesses, telecom, and technical cabins requiring high continuous power, high peaks, and local/remote control.
Technical Specifications
| Model | RS Smart 48/6000 |
| DC input voltage | 38–62 V (typical start ≥41 V) |
| Output | 230 V AC ±2% | 50 Hz (adjustable to 60 Hz) |
| Continuous power | ≈4800–5300 W (depending on Vbat) at 25 °C; 4500 W at 40 °C; 3000 W at 65 °C |
| Peak power | 9000 W (3 s) |
| Max. efficiency | ≈96.5% (1 kW) | ≈94% (5 kW) |
| No-load consumption | ≈20 W |
| Integrated charger | 100 A | 36–60 V (programmable); Absorption 57.6 V*; Float 55.2 V* (*adjustable) |
| Charge sensors | Temperature sensor and battery voltage probe |
| Communications | Bluetooth, VE.Can, VE.Direct; Remote On/Off; 2 analog I/O |
| Programmable relay | Yes (general alarm / DC undervoltage / generator start) |
| Protections | Output short circuit, overload, high/low battery, overtemperature, 230 V on output, earth leakage, ripple |
| Operating temperature | -40…+65 °C (forced ventilation) |
| Protection rating | IP21 (steel, blue RAL 5012) |

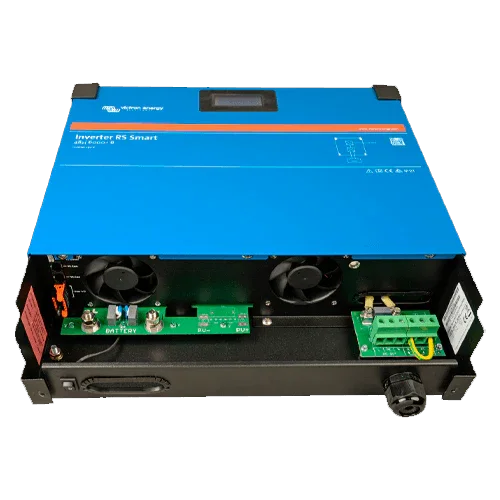

| Connections | Battery M8; AC output to terminals (up to 13 mm² / 6 AWG) |
| Dimensions / weight | 425 × 440 × 125 mm / 11 kg |
| Parallel / Three-phase | No |
| Standards | EN-IEC 60335-1, 62109-1/-2; EMC EN 55014 and IEC 61000 |
Compatibilities
Integration with the Victron ecosystem: Cerbo GX / Color Control GX (VRM monitoring), SmartShunt or BMV-712 Smart, VE.Direct-USB interface, Filax transfer switch, smallBMS Victron (remote input), as well as DC protections (MEGA/MIDI fuses, DC isolator and circuit breaker) and Lynx bars for distribution.
The Victron RS Smart Inverter 48V 6000VA 48/6000 with charger offers high-level continuous power, safe peaks, 100 A charger, and comprehensive control to bring professional-quality energy to any 48 V installation.
