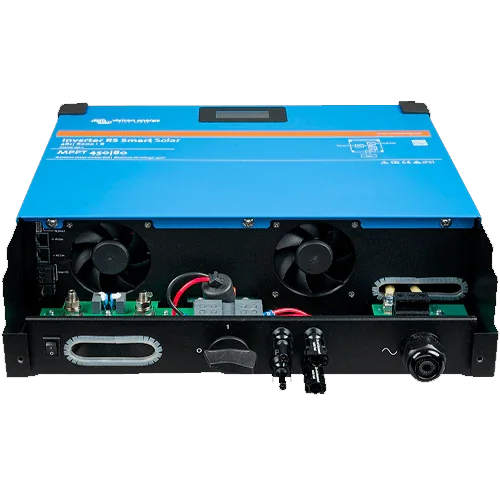

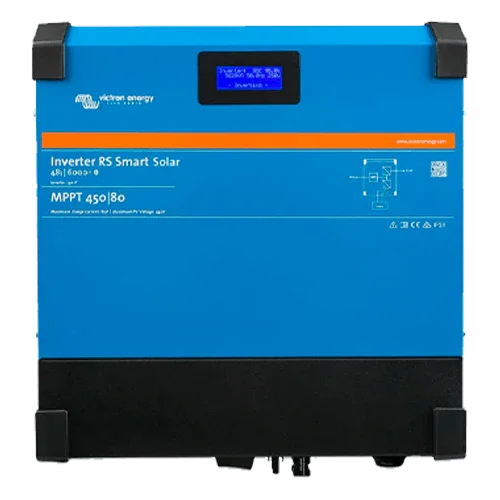

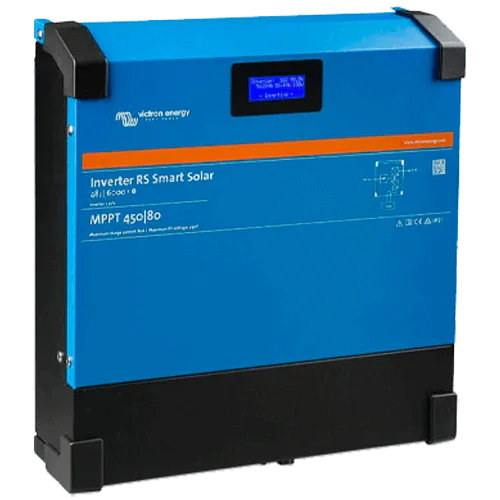

Inverter with MPPT Victron RS Smart Solar 48V 6000VA 48/6000
Modelo: RS Smart Solar 48/6000- Sku: VICTINV096
- Vendor: Victron
Specifications
Product Description
The Victron RS Smart Solar 48V 6000VA 48/6000 Inverter with MPPT combines in a single device a pure sine wave inverter, a bidirectional battery charger, and a high-voltage MPPT charge controller. Designed for 48 V off-grid solar systems, it provides a stable 230 V output to power sensitive loads and harnesses up to 4 kWp of photovoltaics with a very wide MPPT range. With Bluetooth, VE.Can, and VE.Direct, it allows parameter configuration, real-time monitoring, and historical logging from VictronConnect or a GX device. Its high-frequency electronics deliver outstanding efficiency, silent operation, and a compact weight, ideal for remote homes, marine applications, or technical cabins requiring high reliability and control.
Main Features
- Continuous power: 6 kVA (≈4.8–5.3 kW depending on battery voltage) with 9 kW peak for demanding startups.
- MPPT 80–450 V, startup voltage 120 V, max PV power 4 kW, input current 18 A (20 A limit).
- Integrated battery charger of 100 A with programmable absorption and float voltages.
- Connectivity: Bluetooth, VE.Can, VE.Direct; programmable relay and remote on/off input.
- Front display for local reading of battery, inverter, and solar controller.
- Max efficiency ≈96.5%; idle consumption ≈20 W; IP22 metal enclosure and managed ventilation.
Advantages or Benefits
- True all-in-one: integrated inverter, charger, and MPPT reduce space, wiring, and failure points.
- Quality energy: pure sine wave to protect sensitive electronics and appliances.
- More solar production: high PV input range (up to 450 V) for long strings and lower losses.
- Optimized autonomy: high efficiency and fine control of thresholds, alarms, and charging mode.

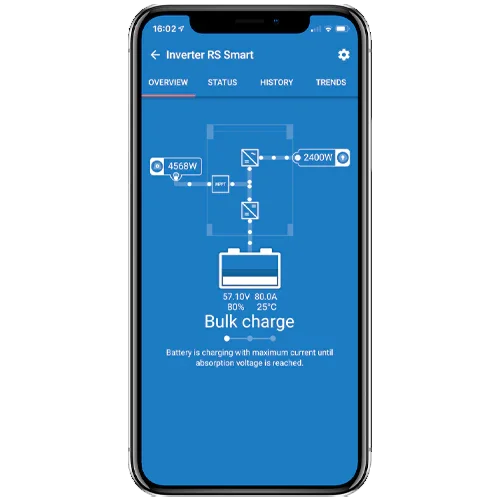

- Smart management: configuration/diagnostics from app or VRM portal via GX device.
Purpose or Applications
Designed for remote homes with medium/high consumption, boats with a 48 V battery bank, telecom systems and technical cabins, mobile workshops, or micro-businesses off-grid that require high continuous power, high peaks, and professional PV utilization with high-voltage strings.
Technical Specifications
| Model | RS Smart Solar 48/6000 |
| Battery (DC input) | 48 V (38–64 V; typical startup ≥41 V) |
| AC output | 230 V ±2% | 50/60 Hz |
| Continuous power | ≈4.8–5.3 kW at 25 °C (depending on Vbat); 4.5 kW at 40 °C; 3 kW at 65 °C |
| Peak | 9 kW (3 s) |
| Efficiency | ≈96.5% (1 kW) | ≈94% (5 kW) |
| Idle consumption | ≈20 W |
| MPPT PV | 80–450 V (startup 120 V), max 4 kWp, Iin 18 A (20 A limit) |
| Charger | 100 A; Absorption approx. 57.6 V (adjustable); Float approx. 55.2 V (adjustable) |
| Connectivity | Bluetooth, VE.Can, VE.Direct; 2 analog I/Os; remote on/off |
| Programmable relay | Yes (general alarm / DC undervoltage / generator start) |
| Protections | Short circuit, overload, high/low Vbat, overtemperature, 230 V on output, earth leakage |
| Enclosure | IP22, steel |
| Dimensions / weight | 425 × 440 × 125 mm / ≈11 kg |
| Parallel / three-phase | No |
Compatibilities
Integrable with Cerbo GX/Color Control GX for VRM monitoring; compatible with SmartShunt or BMV-712 Smart, VE.Direct-USB interface, Victron miniBMS on the remote input, Filax transfer switch, Lynx distribution systems (fuses, busbars, and disconnectors), and DC protections (MEGA/MIDI fuses and DC circuit breakers) according to cable section.
The Victron RS Smart Solar 48V 6000VA 48/6000 Inverter with MPPT is a comprehensive and efficient solution to deliver professional-quality energy to 48 V projects that demand maximum performance and advanced control.
