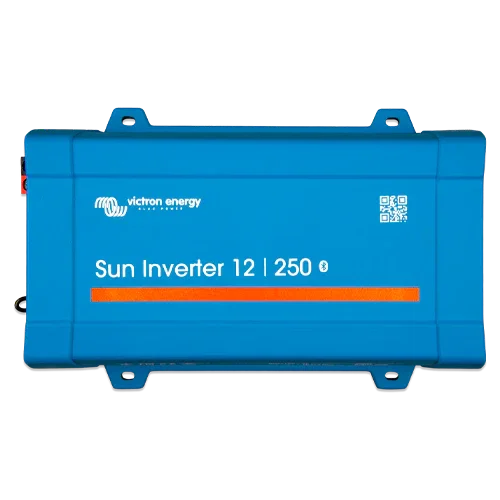

Victron Sun Inverter 12V 250VA 12/250-15 IEC with PWM 15A
Modelo: Sun Inverter 12/250-15 IEC- Sku: VICTINV093
- Vendor: Victron
Specifications
Product Description
The Victron Sun Inverter 12V 250VA 12/250-15 IEC with PWM 15A is an “all-in-one” solution that integrates a pure sine wave inverter and a PWM solar charger in a compact, robust, and extremely efficient unit for 12 V systems. Designed for mobile and off-grid solar applications, it offers stable conversion to 230 V with electronics protected against overloads and temperature, and adds Bluetooth connectivity and a VE.Direct port for configuration and monitoring via the VictronConnect app or a GX system. Its ECO mode minimizes consumption when there is no demand, and its IEC-type output simplifies the connection of portable loads and light appliances in campers, marine applications, or technical cabins.
Main Features
- Power: 250 VA (200 W at 25 °C; 175 W at 40 °C) with a peak of 400 W for short starts.
- 12 VDC input (9.2–17 V) and 230 VAC output ±3% at 50/60 Hz with pure sine wave.
- Integrated 15 A PWM solar regulator, up to 25 V PV and 375 W, ideal for 36-cell panels.
- Connectivity: Bluetooth and VE.Direct for control, logging, and alarms.
- No-load consumption 4.2 W; ECO mode default ~0.8 W with adjustable retry.
- Toroidal transformer topology; protections against short circuit, overload, and temperature.
Advantages or Benefits
- A single unit provides 230 V conversion and solar battery charging, reducing space, wiring, and cost.
- Pure sine wave protects sensitive devices (IT, audio, chargers, LED lighting) without noise or overheating.
- Real energy savings thanks to ECO and configurable dynamic disconnection according to voltage and load.
- Management from mobile: adjustment of charging voltages, alarm thresholds, frequency, ECO, and real-time diagnostics.
- Professional IP21 construction with a proven field reliability record and automotive approval (ECE R10) for vehicles.
Purpose or Applications
Perfect for 12 V caravans and campers with one or more 36-cell panels, recreational boats with moderate consumption, site cabins, telecom, and small off-grid homes that need stable 230 V for laptops, routers, lighting, efficient TVs, or small pumps, always keeping the battery charged from the panels. Also recommended as a compact solution for basic solar kits and portable emergency systems.
Technical Specifications
| Model | Sun Inverter 12/250-15 (IEC) |
| Continuous power | 250 VA (200 W at 25 °C; 175 W at 40 °C) |
| Peak power | 400 W |
| Input voltage | 12 VDC (9.2–17 V) |
| Output | 230 VAC ±3% | 50/60 Hz |
| Max. efficiency | ≈87 % |
| No-load / ECO consumption | 4.2 W / ~0.8 W |
| Solar regulator | PWM 15 A | 25 V | 375 W |
| Panel type | 36 cells (12 V PV) |
| Communications | Bluetooth, VE.Direct |
| Protections | Short circuit, overload, high/low voltage, overtemp., DC ripple |

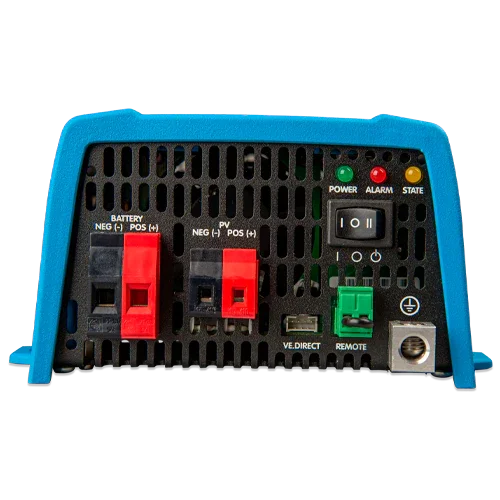

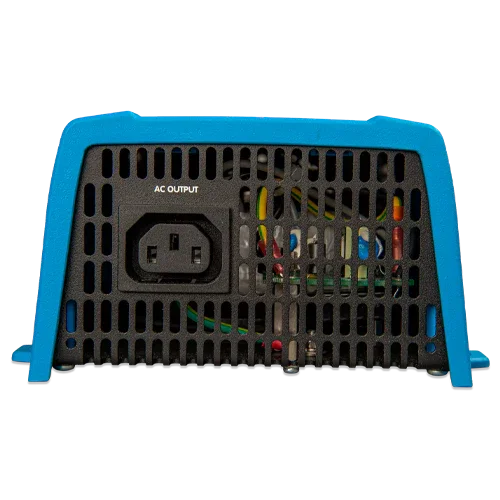

| Connections | DC and PV screw terminals; IEC-320 output (male plug included) |
| Protection rating | IP21 |
| Dimensions / Weight | 86×165×260 mm / 2.4 kg |
Compatibilities
Victron accessories and ecosystem: Phoenix Inverter Control VE.Direct Remote panel, SmartShunt/BMV for battery monitoring, GlobalLink 520 or Cerbo GX for remote monitoring (VRM), Filax transfer switch (<20 ms), Smart Battery Sense temperature sensors. Use MEGA/MIDI fuses and DC disconnect switch suitable for 12 V wiring.
The Victron Sun Inverter 12V 250VA 12/250-15 IEC with PWM 15A concentrates clean power, reliable solar charging, and intelligent control in minimal space to bring professional energy to your 12 V projects.
