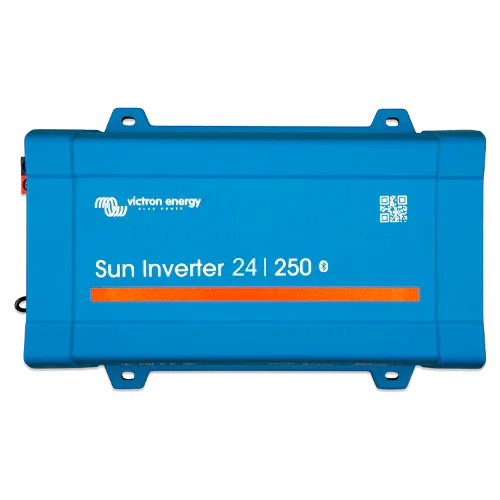

Victron Sun Inverter 24V 250VA 24/250-10 IEC with PWM 10A
Modelo: Sun Inverter 24/250-10 IEC- Sku: VICTINV094
- Vendor: Victron
Specifications
Product Description
The Victron Sun Inverter 24V 250VA 24/250-10 IEC with PWM 10A is a compact device that combines a pure sine wave inverter at 230 V with a 10 A PWM solar charger for 24 V battery banks. Designed for mobile applications and off-grid solar systems, it simplifies installation by integrating control, protection, and solar charging in a single IP21 metal enclosure. It offers Bluetooth connectivity and a VE.Direct port to view data, record history, and adjust critical parameters from VictronConnect or a GX device. ECO mode reduces standby consumption, while the toroidal transformer topology ensures reliability and safe startup of loads thanks to its 400 W peak.
Main Features
- Power: 250 VA (200 W at 25 °C; 175 W at 40 °C) with 400 W peak.
- Input 24 VDC (18.4–34 V) and output 230 VAC ±3% at 50/60 Hz.
- PWM solar regulator 10 A, up to 50 V PV and 500 W; suitable for one 72-cell panel or two 36-cell panels in series.
- Connectivity: Bluetooth and VE.Direct for local and remote control.
- No-load consumption 5.2 W; ECO mode default ~1.3 W with configurable retry.
- Comprehensive protections and transformer-based design for maximum robustness.
Advantages or Benefits
- 2-in-1 solution that reduces space, weight, and failure points compared to installing inverter and regulator separately.
- Pure sine wave quality for sensitive electronics and efficient appliances without noise or overheating.
- Greater autonomy of the 24 V battery bank due to high efficiency and energy savings from ECO mode.
- Advanced configuration from the app: charging voltages, thermal compensation, dynamic disconnection thresholds, frequency, and ECO level.
- ECE R10 automotive approval and proven reliability in mobile environments.
Purpose or Applications
Recommended for 24 V campers, professional vans, recreational boats, technical cabins, telecom, signaling, and small off-grid homes seeking stable 230 V and integrated solar charging with one or two panels in series. Also ideal for compact solar kits where simplicity and remote control are priorities.
Technical Specifications
| Model | Sun Inverter 24/250-10 (IEC) |
| Continuous power | 250 VA (200 W at 25 °C; 175 W at 40 °C) |
| Peak power | 400 W |
| Input voltage | 24 VDC (18.4–34.0 V) |
| Output | 230 VAC ±3% | 50/60 Hz |
| Max. efficiency | ≈88% |
| No-load / ECO consumption | 5.2 W / ~1.3 W |
| Solar regulator | PWM 10 A | 50 V | 500 W |
| Panel type | 72 cells or 2×36 cells in series |
| Communications | Bluetooth, VE.Direct |
| Protections | Short circuit, overload, high/low voltage, overtemperature, DC ripple |

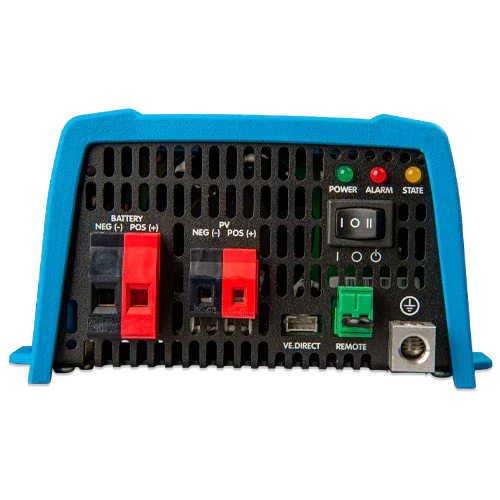

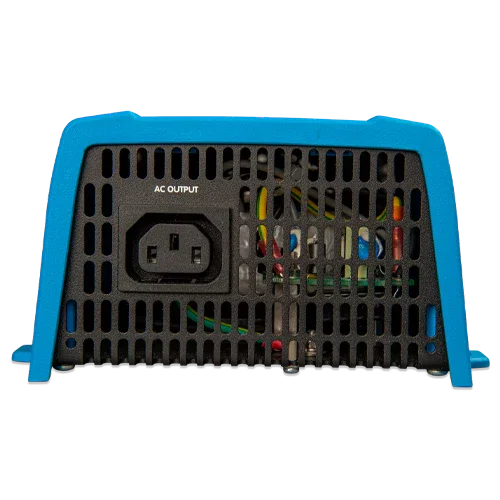

| Connections | DC and PV screw terminals; IEC-320 output (male plug included) |
| Protection rating | IP21 |
| Dimensions / Weight | 86×165×260 mm / 2.4 kg |
Compatibilities
Official accessories: Phoenix Inverter Control VE.Direct Remote panel, SmartShunt/BMV, Cerbo GX or GlobalLink 520 for VRM monitoring, Filax transfer switch (<20 ms), and Smart Battery Sense temperature sensor for charge compensation. Use MEGA/MIDI fuses, disconnect switch, and suitable cabling for 24 V.
The Victron Sun Inverter 24V 250VA 24/250-10 IEC with PWM 10A provides clean energy, integrated solar charging, and intelligent control in a single device, optimizing space, efficiency, and reliability in 24 V systems.
