ZIRI 4SC5-110 2.5HP 110m 10m³/h Hybrid Solar Pump Kit

Product Description

The ZIRI 4SC5-110 2.5CV 110m 10m³/h Hybrid Solar Pump Kit brings together in a professional package the high-flow 4” centrifugal pump with integrated electronics and MPPT and a PV array of 7 JA Solar 455 W modules, as well as MC4 connectors and PV1-F cabling. This kit is designed for farms and operations that need to move large amounts of water at medium-high pressure, with a simple, reliable, and efficient installation. The pump can operate directly with photovoltaics (DC) and also on alternating current (AC) with grid or generator, ensuring continuous service throughout the year.

Main Features

• High flow with stable pressure: up to 10 m³/h and service head of 110 m in 4” wells.
• Integrated electronics and MPPT in the pump (recommended PV window Vmp 180–280 V, Voc max. 360 V).
• Hybrid operation: also works on 90–240 V AC for backup with grid or generator.
• 1½” discharge to reduce pressure losses in long lines and irrigation with multiple outlets.
• JA Solar 455 W panels with 108 cells, high efficiency and mechanical reliability.
• Safe connection with MC4 1500 VDC and 50 m of PV1-F 6 mm² cable (red/black).

Advantages or Benefits

• Simplified installation: fewer surface panels as the electronics are inside the pump.
• Maximum solar performance thanks to MPPT, which optimizes daily production and useful flow.
• 24/7 continuity: AC backup when irradiance is low or for nighttime use.
• Reduced total cost: properly sized components, less assembly time, and minimal maintenance.
• True versatility: suitable for drip or sprinkler irrigation, tank filling, and volume transfers.

Purpose or Applications

Ideal for 4” wells in agricultural, livestock, and off-grid residential operations that require moving large volumes at medium-high pressure: plot irrigation, rapid filling of ponds or elevated tanks, and long pipelines with moderate pressure losses.

Technical Specifications

Compatibilities

Recommended accessories (not included): structure for 7 panels (coplanar or ground), type II DC protections, DC isolator and circuit breaker, IP65 panel, submersible cable and waterproof joints, 1½” check valve, level probe, and PEAD/discharge piping. If frequent AC use is expected, add suitable AC protections.

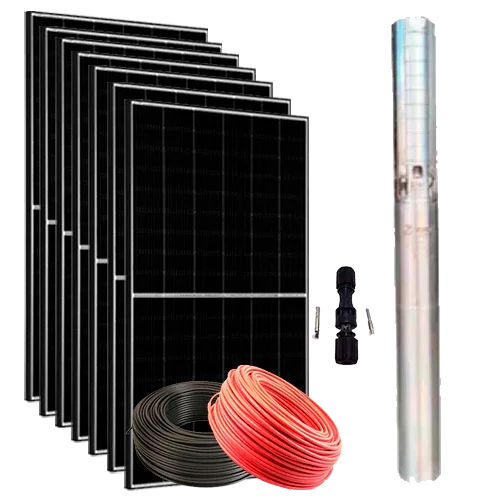

Kit Composition

• 1 × ZIRI 4SC5-110 2.5CV 110m 10m³/h Hybrid Submersible Solar Pump.
• 7 × JA Solar 455 W JAM54D40 LB Bifacial Solar Panel.
• 1 × Pair of MC4 WSPVCC-1500 Connectors (up to 1500 VDC).
• 1 × PV1-F Black Solar Cable 1×6 mm² 25 m 1500 V DC.
• 1 × PV1-F Red Solar Cable 1×6 mm² 25 m 1500 V DC.

Technical note: the included panel power is considered a minimum indicative recommendation. Adjust the number of modules according to actual head, target flow, and installation losses, always staying within the indicated MPPT range.

The ZIRI 4SC5-110 2.5CV 110m 10m³/h Hybrid Solar Pump Kit offers a robust, efficient, and ready-to-install solution, combining high flow, integrated electronics, and quality PV components for high-performance solar pumping.
