3 MPPT Solar Protections Kit 600V 32A Aurensol
Modelo: 3 MPPT Solar 600V 32A- Sku: WORLPRO048
- Vendor: WorldSunLight
Specifications
Product Description
The Kit Protections 3 MPPT Solar 600V 32A Aurensol brings together in a single watertight assembly all the necessary DC protections for three photovoltaic strings that feed three independent MPPT inputs. Each branch has its own type 2 surge arrester (600 V DC) and a 2P 32 A 800 VDC curve C photovoltaic circuit breaker, ensuring selectivity, fast diagnostics, and service continuity. The 18-module IP65 enclosure offers organized DIN rail mounting and space to integrate disconnects, gPV fuses, or monitoring, speeding up commissioning and reducing selection errors.
Main Features
- Polycarbonate panel IP65, 18 modules (1 row), suitable for protected indoor/outdoor use.
- 3 × SPD DC 600 V Type 2 (2 poles), one for each string/MPPT.
- 3 × PV circuit breaker 2P 32 A 800 VDC curve C with specific DC breaking capacity.
- String-based architecture that improves selectivity and simplifies maintenance.
- Clear layout and free space for disconnects, gPV fuses, or measurement.
Advantages or Benefits
- Coordinated branch protection: limits fault propagation and protects inverter electronics.
- Superior availability: selective tripping, faster diagnostics, and fewer shutdowns.
- Agile and professional installation: selected materials and organized DIN wiring.
- Wide compatibility with TOPCon/half-cut/bifacial modules and MPPT ≤600 Vdc.
- Scalable and maintainable: easy replacement of SPD cartridges and terminal access.
Purpose or Applications
Recommended for advanced residential self-consumption and small commercial/industrial installations with three orientations or separate fields, when the current per string is ≤32 A and the generator voltage is ≤600 Vdc.
Technical Specifications
| No. of MPPT / strings | 3 MPPT / 3 strings |
| Max. SPD voltage | 600 V DC |
| Surge protection | 3 × Type 2 · 2P · replaceable cartridge |
| Circuit breaker protection | 3 × 2P 32 A · 800 VDC · curve C |
| Enclosure | IP65 · 18 modules · 1 row |
| Application | DC protection per string to each MPPT |

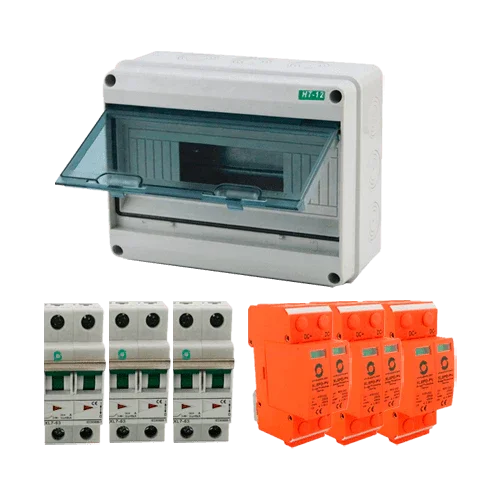

Kit Composition
- 1 × Watertight Panel IP65 HT-18WAYS 18 Modules 1 Row
- 3 × DC Surge Arrester XLSPD-PV 600V 2P
- 3 × Circuit Breaker XL7-63 PV 2P 32A 800VDC Curve C
Compatibilities
Suitable as a DC panel prior to three MPPTs in Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc. inverters, respecting ≤600 Vdc and ≤32 A per input. Recommended accessories: MC4 connectors, IP66/68 cable glands, DC load disconnects, gPV fuses, and safety labeling.
The Kit Protections 3 MPPT Solar 600V 32A Aurensol maximizes safety and selectivity with fast, professional installation in three-string systems.
