Three-Phase AC Protection Kit 10 kW Aurensol

Product Description

The Kit Protections AC Three-Phase 10 kW Aurensol is a professional, preconfigured, and optimized set designed to protect the alternating current output of three-phase inverters up to 10 kW. It integrates in a single IP65 watertight enclosure the protection against transient overvoltages, high-sensitivity residual current protection, and selective circuit breaker, all sized for 400/230 V networks. Thanks to its 18-module enclosure, it offers ample space for wiring and future expansion, reducing assembly time and component selection errors.

Main Features

• IP65 watertight enclosure with 18 modules (1 row): protection against dust and water jets.
• Type 2 AC surge protector, 4 poles, 385 V: defense against spikes and transients.
• Residual current device 4P 40 A 30 mA Type A: protection for people and sensitive equipment.
• Circuit breaker 4P 25 A 400 V AC curve C: effective disconnection in case of short circuits and overloads.
• Clear and maintainable architecture: organized layout and space for future expansions.

Advantages or Benefits

• Ready-to-install pack: minimizes engineering and procurement time.
• Coordinated protection: SPD + residual current device + circuit breaker for maximum continuity.
• Durability and safety: IP65 enclosure suitable for protected indoor or outdoor use.
• Wide compatibility: suitable for most three-phase 10 kW inverters.
• Scalability: free modules for future measurement, monitoring, or signaling.

Purpose or Applications

Recommended as an AC protection panel at the output of a three-phase 10 kW inverter in advanced residential self-consumption systems and small commercial/industrial installations. It can be installed next to the inverter, as an intermediate panel before the main panel/meter, or as a line panel, depending on the electrical design of the project.

Technical Specifications

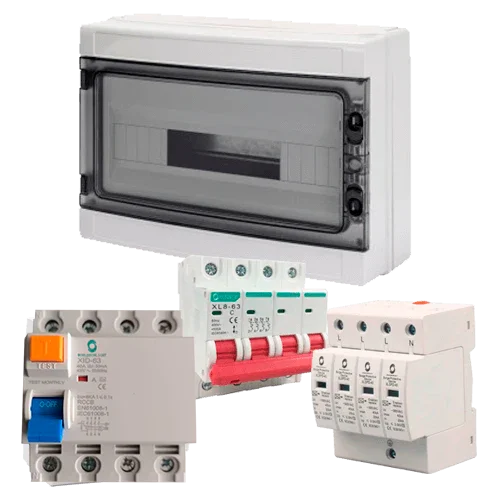

Kit Composition

• 1 × IP65 Watertight Enclosure HT-18WAYS 18 Modules 1 Row
• 1 × Surge Protector XLSPD-40 4P 385V AC Type 2
• 1 × Residual Current Device XID-63 4P 40A 30mA Type A
• 1 × Circuit Breaker XL8-63 4P 25A 400V AC Curve C

Compatibilities

Compatible with three-phase inverters from brands such as Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, or Salicru. Commonly recommended accessories: IP65 cable glands, three-phase maintenance isolator, three-phase energy meter with current transformers, regulatory labeling, and distribution terminal blocks/busbars. Does not include power cabling or measuring devices.

The Kit Protections AC Three-Phase 10 kW Aurensol offers comprehensive AC protection, ease of installation, and long-term reliability for your self-consumption system.
