Three-Phase AC Protection Kit 6 kW Aurensol

Product Description

The Kit Protections AC Three-Phase 6 kW Aurensol brings together in a single unit all the necessary components to protect the AC output of three-phase inverters up to 6 kW. With an IP65 enclosure and coordinated protections (surge protection, residual current device, and circuit breaker), this panel ensures electrical safety, regulatory compliance, and quick installation for demanding self-consumption projects.

Main Features

• IP65 watertight panel with 18 modules (1 row) for protected indoor/outdoor use.
• Type 2 AC surge protector, 4 poles, 385 V, for 400/230 V networks.
• Residual current device 4P 40 A, 30 mA, Type A: high sensitivity for personal protection.
• Circuit breaker 4P 16 A, 400 V AC, curve C: fast tripping in case of short circuits and overloads.
• Available space for future expansions (measurement, control, signaling).

Advantages or Benefits

• Turnkey solution: saves time in material selection and assembly.
• Comprehensive coordinated protection: improves inverter service continuity.
• Durability: IP65 against dust and water jets; suitable for demanding environments.
• Wide compatibility: suitable for three-phase solar inverters of 6 kW.
• Maintainability: clear layout that facilitates inspections and replacements.

Purpose or Applications

Designed for the AC output stage in three-phase solar installations up to 6 kW: homes with three-phase supply, small businesses, offices, or workshops. It can be installed adjacent to the inverter, as an intermediate panel before the main panel, or as a line panel according to the system design.

Technical Specifications

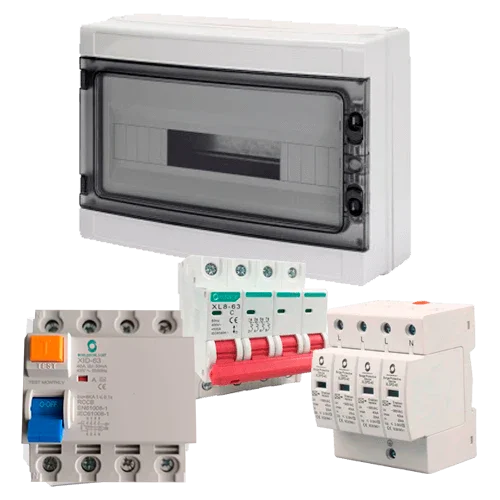

Kit Composition

• 1 × IP65 Watertight Panel HT-18WAYS 18 Modules 1 Row
• 1 × Surge Protector XLSPD-40 4P 385V AC Type 2
• 1 × Residual Current Device XID-63 4P 40A 30mA Type A
• 1 × Circuit Breaker XL8-63 4P 16A 400V AC Curve C

Compatibilities

Recommended for three-phase inverters of 6 kW from brands such as Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, or Salicru. Common compatible accessories: IP65 cable glands and bushings, upstream three-phase AC isolator if required, contactors, protection relays, three-phase energy meters, and labeling for electrical signaling.

With the Kit Protections AC Three-Phase 6 kW Aurensol you obtain professional, safe, and scalable AC protection for your self-consumption installation.
