Three-phase AC Protections Kit 8 kW Aurensol

Product Description

The Kit Protections AC Three-Phase 8 kW Aurensol offers a complete and sealed solution to protect the alternating current stage of three-phase inverters up to 8 kW. It incorporates surge protection, high-sensitivity residual current protection, and a curve C circuit breaker, all integrated in an 18-module IP65 enclosure that facilitates wiring and future expansions.

Main Features

• IP65 enclosure (18 modules, 1 row) for installation indoors or in protected outdoor areas.
• AC surge protector Type 2, 4P, 385 V: protection against transients and spikes.
• Residual current switch 4P 40 A, 30 mA, Type A: protection for people and equipment.
• Circuit breaker 4P 16 A, 400 V AC, curve C: selectivity and effective disconnection in case of faults.
• Organized and accessible design that reduces commissioning and maintenance times.

Advantages or Benefits

• Ready-to-install set: eliminates doubts about sizing and compatibility.
• Coordinated protection: greater operational safety and fewer network incidents.
• Robustness: IP65 enclosure suitable for environments with dust or humidity.
• Versatility: suitable for a wide range of three-phase inverters up to 8 kW.
• Expandable: module reserve for measurement, monitoring, or signaling.

Purpose or Applications

Ideal for the AC output of three-phase inverters up to 8 kW in advanced residential self-consumption, commercial premises, hospitality, or small warehouses. It can act as an intermediate panel between the inverter and the main panel/meter, or as a dedicated line panel according to the installer’s design.

Technical Specifications

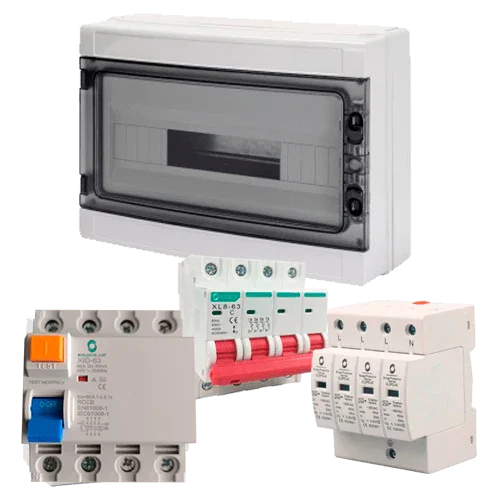

Kit Composition

• 1 × IP65 Sealed Enclosure HT-18WAYS 18 Modules 1 Row
• 1 × Surge Protector XLSPD-40 4P 385V AC Type 2
• 1 × Residual Current Switch XID-63 4P 40A 30mA Type A
• 1 × Circuit Breaker XL8-63 4P 16A 400V AC Curve C

Compatibilities

Suitable for 8 kW three-phase inverters from the main manufacturers on the market. Accessories that can be added in the available modules: three-phase meter with CTs, transfer contactor, AC maintenance isolator, terminal blocks and busbars, IP65 cable glands, and standardized labeling.

With the Kit Protections AC Three-Phase 8 kW Aurensol you increase safety, ensure technical compliance, and speed up the installation of your three-phase self-consumption system.
