Hybrid Grid Solar Kit 2000W Huawei SUN2000L-2KTL-L1 Single-phase
Modelo: Kit Monofásico Huawei 2 kW- Sku: HUAWKIT001
- Vendor: Huawei
Specifications
Product Description
The Hybrid Grid Solar Kit 2000W Huawei SUN2000L-2KTL-L1 Single-phase is designed to start saving from day one with a photovoltaic power of 2.36 kWp and a Huawei hybrid inverter of 2 kW AC, efficient (98.2%), silent, and IP65 rated. It integrates 2 MPPT, advanced protections, and FusionSolar connectivity, and is ready to add a LUNA battery whenever you wish, maximizing self-consumption and energy independence.
Main Features
- PV kit power: 2.36 kWp (4×590 W) with Trina Vertex S+ N-type i-TOPCon bifacial double glass modules.

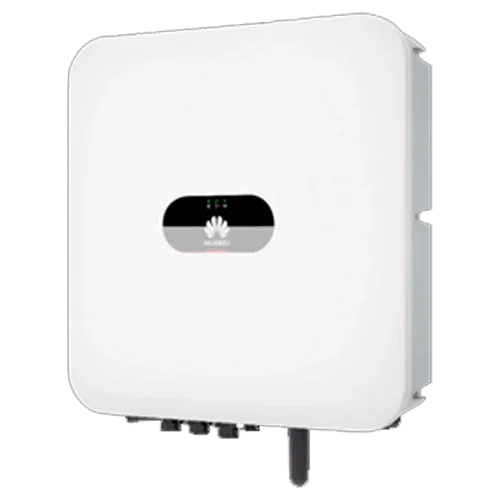

- Huawei SUN2000L-2KTL-L1 hybrid inverter: 2 kW single-phase, max. efficiency 98.2%, 2 MPPT, IP65, and arc detection (AFCI).
- MPPT range 90–560 V; recommended connection: 4 modules in series (4S1P). String Voc ≈ 210 V at 25 °C.
- Monitoring via FusionSolar app (integrated WLAN) and option for Ethernet/4G dongle.
Estimated Production
Indicative estimates with PR=0.80 (thermal, cabling, dirt, conversion losses) and average HSP:
| PV Power | 2.36 kWp |
| Spain (winter / summer) | ≈ 2.36×2.5×0.80 = 4.7 kWh/day / ≈ 2.36×6.5×0.80 = 12.3 kWh/day |
| Portugal (winter / summer) | ≈ 2.36×2.7×0.80 = 5.1 kWh/day / ≈ 2.36×6.7×0.80 = 12.7 kWh/day |
| Typical application | Efficient homes, small offices, businesses with daytime consumption and plans to add a battery. |
With the LUNA battery, you can shift surplus to nighttime and have backup available via Backup Box-B0 (optional).
Kit Composition
- 4× Trina 590 W NEG18C.20 Vertex S+ Bifacial Solar Panel
- 1× Pair of MC4 Connectors WSPVCC-1500 (up to 1500 VDC)
- 1× Solar Cable PV1-F Black 1×6 mm² 25 m 1500 VDC
- 1× Solar Cable PV1-F Red 1×6 mm² 25 m 1500 VDC
- 1× Huawei 2 kW SUN2000L-2KTL-L1 Single-phase Hybrid Inverter
Advantages or Benefits
- Direct savings on your bill with 2 kW AC and 2.36 kWp PV covering a large part of daytime consumption.
- High-efficiency N-type bifacial panels with lower degradation, more real production throughout the year.
- Scalable: add LUNA battery whenever you want and activate backup via Backup Box-B0.
- Enhanced safety with Type II SPD on DC/AC and AFCI with artificial intelligence.
- Total control from the app: view generation, consumption, and grid exports to optimize ROI.
Purpose or Applications
Ideal for single-phase homes, second residences with consumption during solar hours, small businesses, and offices with IT equipment, refrigerators, and efficient air conditioning. The solution is compact, silent, and quick to install.
Technical Specifications
| PV Power (STC) | 2.36 kWp (4×590 W) |
| Nominal AC Power | 2 kW at 230 V (single-phase) |
| MPPT / Strings | 2 MPPT (recommended configuration: 1 string 4S) |
| MPPT Range / Start Voltage | 90–560 V / 100 V |
| String Voc (4S, 25 °C) | ≈ 210 V |
| Max. MPPT Current | 12.5 A |
| Max. inverter efficiency | 98.2 % |
| Protection rating | IP65 |
| Connectivity | Integrated WLAN, RS485; optional Ethernet/4G |
| Approx. panel dimensions | Vertex S+ double glass format; IP68 junction box |
Compatibilities
Compatible for expansion or customization: Huawei LUNA battery 5–30 kWh (LUNA2000-5/10/15-S0), Backup Box-B0 for backup, and field expansion with more Trina 590 W NEG18C.20 Solar Panel (check string design and inverter current/voltage limits).
With the Hybrid Grid Solar Kit 2000W Huawei SUN2000L-2KTL-L1 Single-phase you will enjoy a professional, safe, and scalable solution for your self-consumption, with high-performance bifacial panels and a smart inverter ready for battery integration.
