Hybrid Grid Solar Kit 6000W Huawei SUN2000L-6KTL-L1 Single-phase
Modelo: Kit Monofásico Huawei 6 kW- Sku: HUAWKIT005
- Vendor: Huawei
Specifications
Product Description
The Hybrid Grid Solar Kit 6000W Huawei SUN2000L-6KTL-L1 Single-Phase is a high-performance solution for demanding homes: 7.08 kWp with 12 Trina Vertex S+ bifacial panels and a Huawei inverter of 6 kW AC with 98.4% efficiency, IP65, 2 MPPT, and FusionSolar monitoring. It is ready for LUNA batteries and backup via Backup Box, maximizing your self-consumption from day one.
Main Features
- PV kit power: 7.08 kWp (12×590 W) with N-type i-TOPCon bifacial double-glass modules.
- Huawei SUN2000L-6KTL-L1 hybrid inverter: 6 kW single-phase, 98.4% efficiency, 2 MPPT, IP65 protection, and AFCI.
- Smart management: FusionSolar app with integrated WLAN; optional Smart Dongle Ethernet/4G for professional monitoring.
- String design optimized for high-current modules, maintaining voltages and currents within specifications.
- Advanced safety: Type II SPD on DC/AC and continuous system monitoring.
Estimated Production
Indicative estimates with PR=0.80 and average HSP.
| Photovoltaic power (STC) | 7.08 kWp |
| Spain — Winter / Summer | 7.08×2.5×0.80 ≈ 14.2 kWh/day / 7.08×6.5×0.80 ≈ 36.8 kWh/day |
| Portugal — Winter / Summer | 7.08×2.7×0.80 ≈ 15.3 kWh/day / 7.08×6.7×0.80 ≈ 37.9 kWh/day |
| Typical application | Homes with several appliances, efficient climate control, and medium-high daytime consumption. |

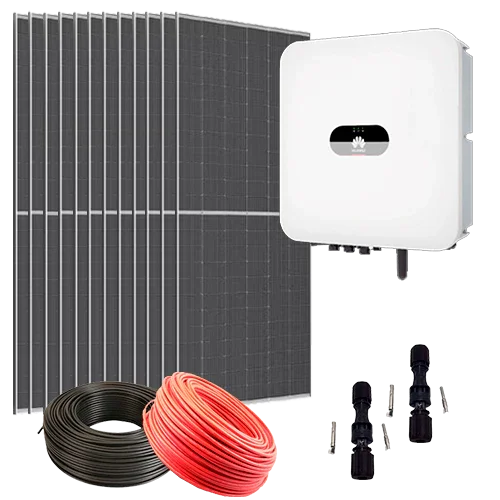

Kit Composition
- 12× Trina 590 W NEG18C.20 Vertex S+ Bifacial Solar Panel
- 2× Pair of MC4 WSPVCC-1500 Connectors (up to 1500 VDC)
- 1× Solar Cable PV1-F Black 1×6 mm² 25 m 1500 VDC
- 1× Solar Cable PV1-F Red 1×6 mm² 25 m 1500 VDC

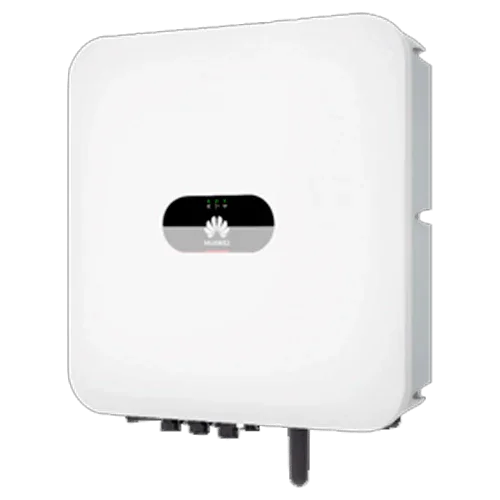

- 1× Huawei 6 kW SUN2000L-6KTL-L1 Single-Phase Hybrid Inverter
Advantages or Benefits
- Significant savings on your bill and greater energy independence thanks to 6 kW AC and 7.08 kWp PV.
- Premium bifacial double-glass modules: higher annual production and great durability.
- Scalable system: direct connection to Huawei LUNA batteries and backup capability.
- Total control from your mobile: production, consumption, and real-time alerts.
- Silent and compact installation, ideal for residential rooftops.
Purpose or Applications
Single-phase residential self-consumption in medium-high consumption homes, second homes with high occupancy, small businesses, and offices seeking control and future growth with storage.
Technical Specifications
| PV kit power | 7.08 kWp (12×590 W) |
| Nominal AC power | 6 kW at 230 V (single-phase) |
| MPPT / Strings | 2 MPPT (balanced string design within specifications) |
| Max. inverter efficiency | 98.4% |
| Protection | IP65, Type II SPD DC/AC, AFCI |
| Connectivity | Integrated WLAN, RS485; optional Ethernet/4G (Smart Dongle) |
| Monitoring | FusionSolar app (production, consumption, and feed-in) |
Compatibilities
Recommended expansions: Huawei LUNA 5/10/15 kWh batteries (LUNA2000-S0), Backup Box-B0 for backup, and expansion of the PV field with more Trina 590 W NEG18C.20 panels following the string design and inverter limits.
The Hybrid Grid Solar Kit 6000W Huawei SUN2000L-6KTL-L1 Single-Phase offers you power, reliability, and scalability to take your self-consumption to the next level with Huawei technology and state-of-the-art bifacial panels.
