Hybrid Solar Kit Grid 8kW Huawei SUN2000L-8KTL-M1 High Current Three-phase
Modelo: Kit Trifásico Huawei 8 kW- Sku: HUAWKIT008
- Vendor: Huawei
Specifications
Product Description
The Hybrid Grid Solar Kit 8kW Huawei SUN2000L-8KTL-M1 High Current Three-Phase combines 8.26 kWp in Trina Vertex S+ bifacial panels with a Huawei High Current inverter of 8 kW, 98.6% efficiency, IP65 rating, and intelligent FusionSolar management. A powerful, safe, and HV storage-ready self-consumption solution that maximizes annual production and savings for three-phase homes and businesses.
Main Features
- Total PV power: 8.26 kWp (14×590 W) with N-type i-TOPCon bifacial double-glass modules for higher performance.
- Huawei SUN2000L-8KTL-M1 High Current inverter: 8 kW three-phase, 98.6% efficiency and IP65, 2 MPPT and 4 inputs.
- Wide PV range (≈200–980 V) to better utilize irradiation throughout the day.
- HC inputs prepared for high current modules while maintaining voltages and currents within specifications.
- Advanced safety: AFCI, SPD Type II on DC/AC, insulation monitoring.
- Connectivity: integrated WLAN, RS485, and optional Smart Dongle Ethernet/4G; FusionSolar app for full control.
Estimated Production
Indicative estimates with PR=0.80 and average HSP:
| Photovoltaic power (STC) | 8.26 kWp |
| Spain — Winter / Summer | 8.26×2.5×0.80 ≈ 16.5 kWh/day / 8.26×6.5×0.80 ≈ 43.0 kWh/day |
| Portugal — Winter / Summer | 8.26×2.7×0.80 ≈ 17.8 kWh/day / 8.26×6.7×0.80 ≈ 44.3 kWh/day |
| Recommended use | Three-phase homes and businesses with high daytime consumption and storage forecast. |

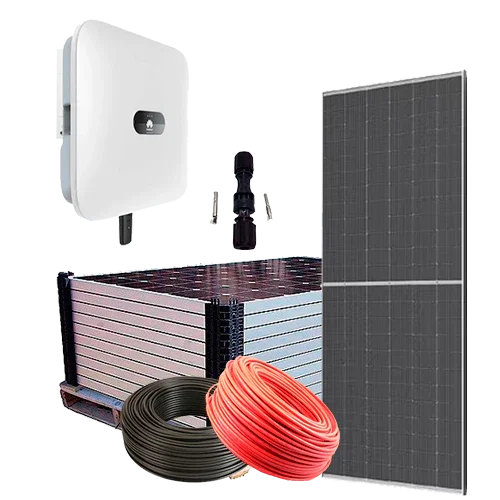

Kit Composition
- 14× Trina 590 W NEG18C.20 Vertex S+ Bifacial Solar Panel
- 1× Pair of MC4 WSPVCC-1500 Connectors (up to 1500 VDC)
- 1× Solar Cable PV1-F Black 1×6 mm² 25 m 1500 VDC
- 1× Solar Cable PV1-F Red 1×6 mm² 25 m 1500 VDC

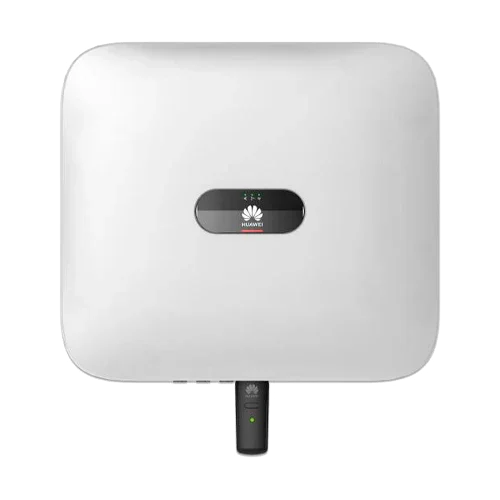

- 1× Huawei High Current 8 kW SUN2000L-8KTL-M1 Three-Phase Hybrid Inverter
Advantages or Benefits
- Significant savings from day one with 8 kW AC and 8.26 kWp state-of-the-art PV.
- Double-glass bifacial modules: more real energy and great durability in demanding climates.
- Stable three-phase architecture for distributed loads and greater electrical comfort.
- Prepared for Huawei LUNA HV battery and backup function with Backup Box-B1.
- Real-time monitoring to optimize consumption and maximize ROI.
Purpose or Applications
High-consumption three-phase residential self-consumption, offices, shops, and small businesses with efficient air conditioning, cold rooms, IT, and extended daytime hours.
Technical Specifications
| Kit PV power | 8.26 kWp (14×590 W) |
| Nominal AC power | 8 kW (3×230/400 V) |
| MPPT / Inputs | 2 MPPT / 4 total inputs |
| MPPT range / Start | ≈200–980 V / ≈200 V |
| Protections | AFCI, SPD Type II DC/AC, IP65 |
| Communications | WLAN, RS485; optional Ethernet/4G (Smart Dongle) |
| Monitoring | FusionSolar app (production, consumption, feed-in, and alerts) |
Compatibilities
Recommended expansions: HV Huawei LUNA batteries (5–21 kWh), Backup Box-B1 for backup and field expansion with more Trina 590 W NEG18C.20 panels while respecting string design and inverter specifications.
The Hybrid Grid Solar Kit 8kW Huawei SUN2000L-8KTL-M1 High Current Three-Phase is a professional, powerful, and scalable solution to take your self-consumption to the next level with Huawei technology and high-performance bifacial panels.
