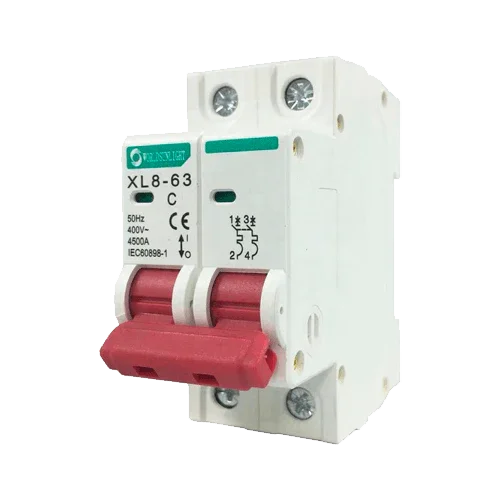

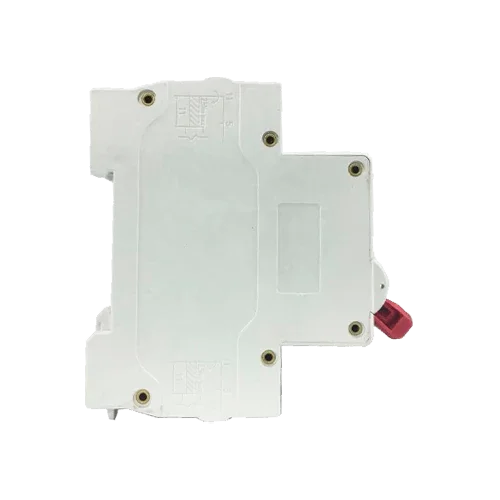

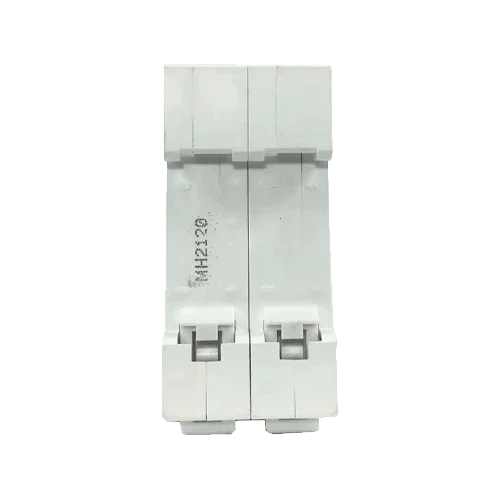

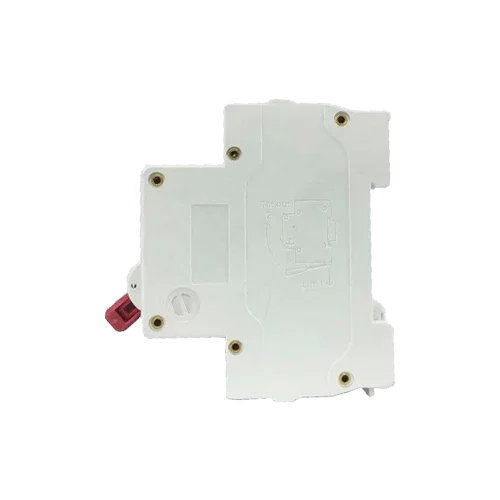

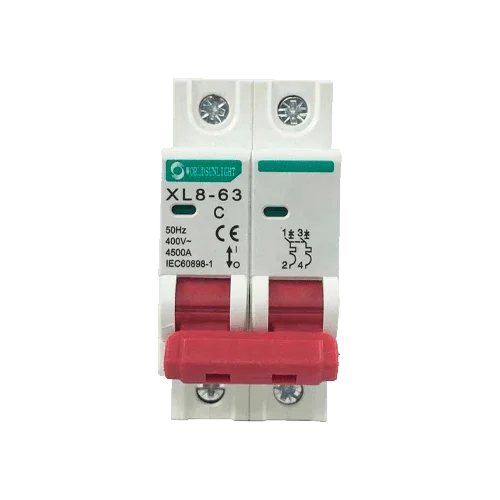

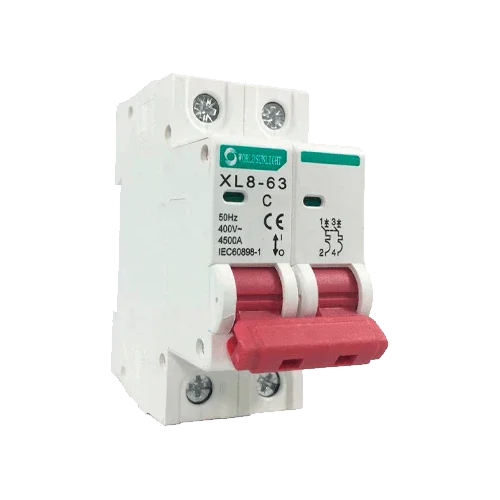

XL8-63 Circuit Breaker 2P 25A 400V AC Curve C
Modelo: XL8-63 2P 25A 400V AC Curva C- Sku: WORLPRO006
- Vendor: WorldSunLight
Specifications
Product Description
The Magnetothermic XL8-63 2P 25A 400V AC Curve C is designed to protect high-demand branch circuits in single-phase/biphase installations at 400 V~. Its combination of thermal and magnetic tripping acts against overloads and short circuits, while the Curve C ensures the necessary tolerance for moderate inrush peaks from motors, compact compressors, small pressure pumps, or power electronic loads. Thanks to its modular DIN format, quality terminals, and reliable mechanism, it enables quick installation and long-lasting service in residential, commercial, or self-consumption panels.
Main Features
- Rated current 25 A for power lines and higher consumption loads.
- 2P: simultaneous disconnection of both conductors for maximum safety.
- Curve C with appropriate response to startups and faults.
- Breaking capacity up to 6 kA, suitable for most LV panels.
- Mounting on DIN rail with quick locking and status indicator.
- Wide terminals compatible with busbars and flexible/rigid cable.
Advantages or Benefits
- Effective protection of the circuit and connected equipment.
- Reduces nuisance tripping due to inrush peaks without compromising safety.
- Speeds up wiring and improves panel aesthetics with DIN accessories.
- Self-extinguishing materials and robust mechanism for long service life.
- Simple maintenance and immediate visual diagnosis.
Purpose or Applications
High-demand socket lines, power for workshops and SMEs, pumps/pool filters, light air conditioning, subpanels, and AC outputs of inverters. Suitable for residential, tertiary, and light industrial projects.
Technical Specifications
| Model | XL8-63 |
| Poles | 2P (2 modules) |
| Rated current (In) | 25 A |
| Voltage | 400 V~ (50/60 Hz) |
| Curve | C |
| Breaking capacity (Icn) | up to 6 kA |
| Standard | IEC/EN 60898-1 |
| Mounting | DIN rail 35 mm |
| Terminals | Screw; rigid/flexible cable |
| Application | Residential, commercial, solar AC |
Compatibilities
Compatible with HT-12WAYS/18WAYS/24WAYS waterproof panels, XID-63 residual current devices (Type A 30 mA), busbar combs, and SPD AC type II. Adjust conductor cross-section and protection coordination according to project calculations.
The Magnetothermic XL8-63 2P 25A 400V AC Curve C is a robust and professional solution for protecting higher load lines with quick installation and reliable results.
