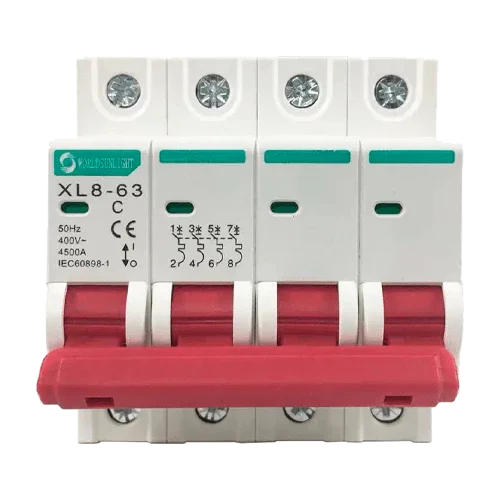

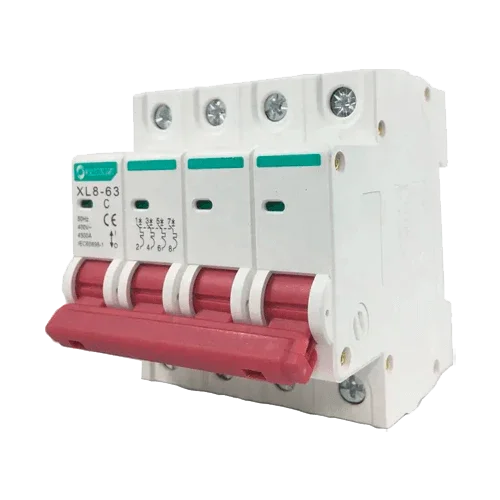

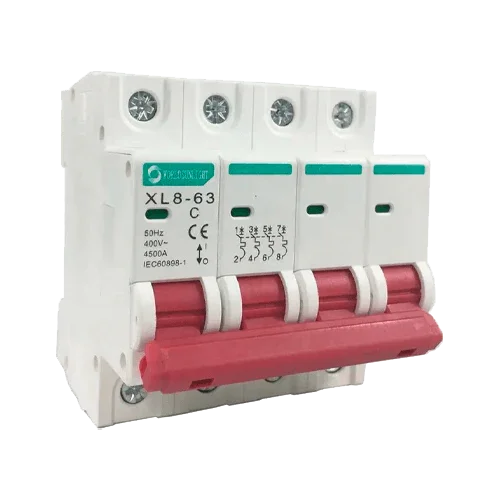

XL8-63 4P 10A 400V AC Curve C Miniature Circuit Breaker

Product Description

The Magnetothermic XL8-63 4P 10A 400V AC Curve C is a four-pole circuit breaker designed to protect three-phase lines with neutral against overloads and short circuits. Its C curve offers immunity to moderate inrush peaks, maintaining fast and selective operation. Modular construction for DIN rail, self-extinguishing materials, and a highly reliable thermal-magnetic mechanism.

Main Features

• 4P, 10 A for three-phase networks with neutral.
• 400 V~ 50/60 Hz, clear ON/OFF indication.
• Curve C (thermal + magnetic).
• Breaking capacity up to 6 kA at low voltage.
• Mounting on DIN rail 35 mm with quick fastening.
• Accessible terminals for rigid or flexible cable and busbar comb.

Advantages or Benefits

• Effective protection of wiring and three-phase loads.
• Reduces nuisance tripping due to inrush peaks.
• Quick installation and simple maintenance.
• Modular format that facilitates organized and selective panels.
• High durability thanks to its robust mechanism.

Purpose or Applications

Light three-phase branches: small motors/ventilation, water treatment plants, subpanels, service lines, AC outputs of three-phase inverters, and general distribution in SMEs/shops.

Technical Specifications

Compatibilities

HT-12WAYS/18WAYS/24WAYS watertight panels, XID-63 4P Type A 30 mA residual current devices, SPD AC type II, busbar combs, and terminal blocks. Select conductor section and coordination according to project.

The Magnetothermic XL8-63 4P 10A 400V AC Curve C provides safety and reliability in three-phase lines with a clean and professional installation.
