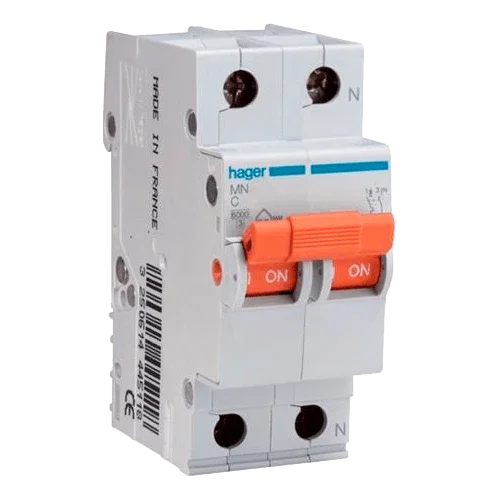

Hager Miniature Circuit Breaker 1P+N 10A curve C | 6kA | 230V

Product Description

The Hager 1P+N 10A Curve C Miniature Circuit Breaker is a compact and reliable automatic switch for 230 V circuits in residential, commercial, and tertiary installations. With a breaking capacity of 6 kA and curve C, it provides effective protection against overloads and short circuits, ensuring service continuity and the safety of the electrical panel. Its 2-module design (35 mm) facilitates DIN rail mounting and integration into any enclosure.

Main Features

• Polarity: 1P+N (phase breaking, neutral through), ideal for 230 V networks.
• Rated current: 10 A with curve C, suitable for moderate inductive loads.
• Breaking capacity: 6 kA in accordance with IEC/EN 60898-1 for domestic and similar use.
• Operating voltage: 230 V~ | Frequency: 50–60 Hz.
• Insulation Ui: 500 V | Impulse voltage Uimp: 4 kV for greater dielectric strength.
• DIN mounting, 2 modules (35 mm), height 83 mm and depth 70 mm.

Advantages or Benefits

• Comprehensive protection against overloads and short circuits with high breaking capacity.
• Curve C: prevents unwanted tripping with inrush currents from motors or lighting.
• Screw terminals with large admissible section (up to 35 mm² rigid / 25 mm² flexible) for professional wiring.
• Nominal tightening torque of 2.8 Nm and aligned terminals that speed up series installation with connection combs.
• Wide thermal operating range (-25 °C to 70 °C) for demanding environments.
• Hager design: reliability, availability of spare parts, and full compatibility with the panel ecosystem.

Purpose or Applications

Recommended for lighting circuits, power outlets, and service lines in homes, commercial premises, offices, technical rooms, and small warehouses. Its curve C makes it suitable when there are moderate inrush currents (small pumps, switched-mode power supplies, electronic equipment) without compromising protection.

Technical Specifications

Compatibilities

Direct compatibility with Hager panels and enclosures (residential and tertiary series) and with 2-pole connection combs, distribution terminals, and residual current devices of the brand. Also integrable into other panels with standard DIN rail, alongside type 2 AC surge protectors, contactors, and timers. If you have internal store references (combs, RCDs, or Hager boxes), link them here to facilitate joint purchase.

The Hager 1P+N 10A Curve C Miniature Circuit Breaker is the professional solution to protect 230 V lines with reliability, ease of wiring, and full integration into Hager electrical protection systems.
