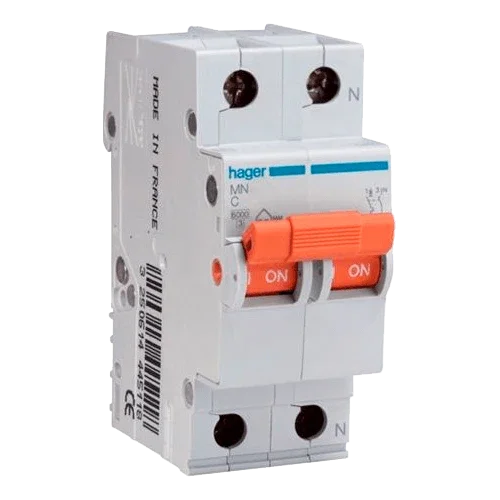

Hager 2P 32A C-curve Circuit Breaker | 6kA | 400V
Modelo: MN532V- Sku: HAGEPRO003
- Vendor: Hager
Specifications
Product Description
The Hager 2P 32A C-curve Miniature Circuit Breaker is a two-pole automatic switch designed to protect 230/400 V~ lines against overloads and short circuits. With a breaking capacity of 6 kA (IEC/EN 60898-1) and C curve, it provides reliable tripping even with moderate inrush currents, maintaining service continuity in residential, commercial, and small industrial environments. Its 2-module format and DIN rail mounting allow for quick and secure integration into any professional electrical panel.
Main Features
- Configuration: 2 poles (2P) with simultaneous breaking for single-phase 230 V or two-phase/three-phase 400 V networks.
- Rated current: 32 A with C curve, ideal for circuits with moderate inrush currents.
- Breaking capacity: 6 kA according to IEC/EN 60898-1.
- Voltages: Ue 400 V~; Ui 500 V; Uimp 4 kV. Frequency 50–60 Hz.
- Professional connection: aligned upper/lower terminals, supports 1–35 mm² (rigid) / 1–25 mm² (flexible).
- Quick installation: 2 modules (35 mm), compact dimensions, and robust operation with status indicator.
Advantages or Benefits
- Complete two-pole protection in a single device: extra safety for 230/400 V lines.
- Fewer unwanted trippings thanks to the C curve; suitable for fractional motors, switched-mode power supplies, and lighting fixtures.
- Efficient wiring with distribution combs and bridges thanks to aligned terminals and wide cross-section range.
- Hager reliability: high build quality, long service life, and full compatibility with its ecosystem of panels and protections.
- Compact format that optimizes space in residential and tertiary enclosures.
Purpose or Applications
Recommended for main supply lines, lighting, subpanels, small motors, light air conditioning, or mixed loads where bipolar breaking at 230/400 V is required. Suitable for homes, commercial premises, offices, technical rooms, and workshops.
Technical Specifications
| Type | 2P Miniature Circuit Breaker |
| Rated current (In) | 32 A |
| Curve | C |
| Breaking capacity | 6 kA (IEC/EN 60898-1) |
| Operational voltage (Ue) | 400 V~ |
| Insulation voltage (Ui) | 500 V |
| Impulse voltage (Uimp) | 4 kV |
| Frequency | 50–60 Hz |
| Number of modules | 2 (35 mm width) |
| Dimensions (H×W×D) | 83 × 35 × 70 mm approx. |
| Connection | Aligned terminals; screw |
| Accepted cross-section | 1–35 mm² (rigid) / 1–25 mm² (flexible) |
| Protection rating | IP20 (indoor use inside enclosure) |
| Limitation class | I²t class 3 |
| Operating temperature | -25 °C … 70 °C |
| Standards | IEC/EN 60898-1 |
Compatibilities
Compatible with Hager DIN rail panels and enclosures, bipolar connection combs, distribution terminals, and Hager residual current devices of the same series. Can be integrated with type 2 AC surge protectors, modular contactors, and standard DIN timers. If you have internal references (combs, RCDs, or Hager enclosures), link them for joint purchase.
The Hager 2P 32A C-curve Miniature Circuit Breaker combines safety, quick installation, and durability for a professional and reliable electrical protection system.
