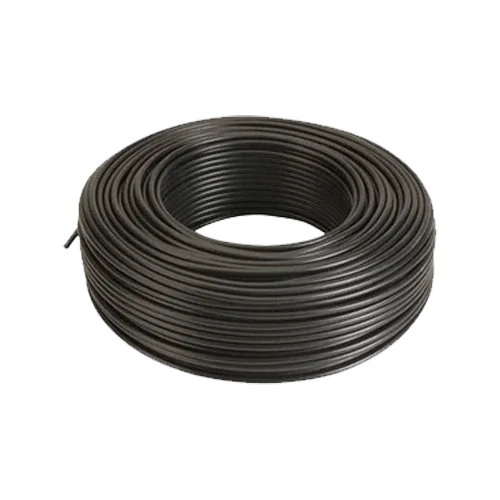

RV-K Hose 2x1.5mm² 100m Black 0.6/1kV
Modelo: RV-K 2x1,5mm² 100m Negra- Sku: REVICAB019
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 2x1.5mm² 100m Black 0.6/1kV is a flexible power cable designed for demanding installations: solar energy, lighting, industrial, and domestic. It combines class 5 copper conductor with XLPE insulation and black PVC sheath, offering high mechanical robustness, weather resistance, and suitability for direct burial, conduit, or tray installation. Its design facilitates on-site work, shortens installation times, and guarantees long-term electrical safety.
Main Features

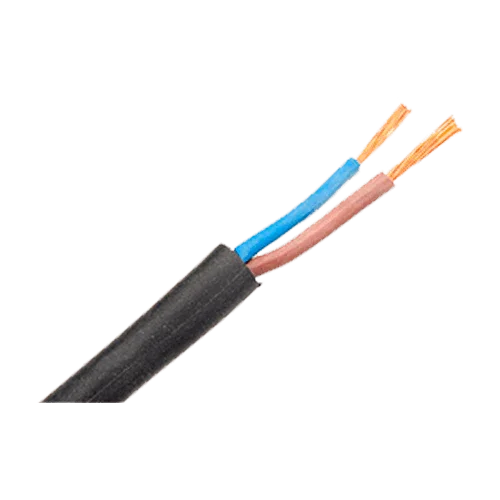

- Class 5 copper conductor (flexible) 2×1.5 mm² for maneuverability and easy connection.
- XLPE insulation and black PVC sheath: thermal, chemical, and UV resistance.
- Rated voltage 0.6/1 kV for low voltage networks and connections.
- Suitable for indoor, outdoor, and buried use; flame-retardant behavior.
- Typical thermal range: continuous service up to 90 °C in conductor and –15 °C in fixed installation (indicative according to standard and method).
- Usual compliance with UNE / IEC power cable standards (IEC 60502-1 / UNE 21123-2) and standard commercial CPR (check batch label).
Advantages or Benefits
- Quick installation thanks to its flexibility (smaller bending radii and ease in conduits and panels).
- Long service life in solar environments: resistant to UV, humidity, and common chemical agents.
- Total versatility: equipment connections, lighting, small pumps, distribution panels.
- Safety: XLPE insulation with excellent dielectric strength and robust PVC sheath.
- 100 m coil that optimizes cuts and reduces splices.
Purpose or Applications
Ideal for low voltage photovoltaic installations (connection of inverters/load centers), outdoor lighting, distribution lines in homes and premises, connections for small pumps, and light automation. Suitable for installation in tray, corrugated conduit, or buried trench with sand bed and marking.
Technical Specifications
| Type | RV-K |
| Section / no. of conductors | 2 × 1.5 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV and humidity |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C in conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit or tray |
| CPR | Standard commercial category for RV-K (check coil marking) |
| Coil length | 100 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Suitable for connection of electrical panels, inverters, and small receivers in low voltage solar systems; usable with corrugated conduits, cable ducts, and standard trays. Terminals and accessories are not included.
The RV-K Hose 2x1.5mm² 100m Black 0.6/1kV provides safety, durability, and flexibility for professional solar and electrical projects.
