RV-K Hose 2x2.5mm² 100m Black 0.6/1kV

Product Description

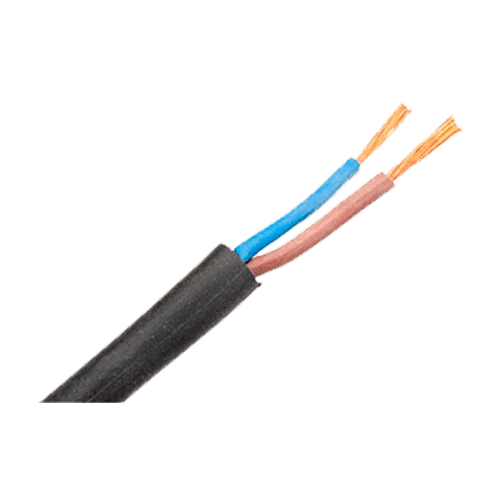

The RV-K Hose 2x2.5mm² 100m Black 0.6/1kV is a versatile, robust, and flexible power cable designed for distribution lines, solar equipment connections, lighting, and small machines. Its construction with class 5 copper, XLPE insulation, and black PVC sheath ensures high thermal and mechanical resistance, excellent outdoor performance, and suitability for buried or tray installation.

Main Features

• 2×2.5 mm² section in class 5 copper for lower voltage drop and easy laying.
• XLPE + PVC structure: high dielectric strength and protection against UV, water, and oils.
• Rated voltage 0.6/1 kV suitable for low voltage networks and power connections.
• Installation in indoor, outdoor, and buried environments; flame retardant.
• Typical operating temperatures: –15 °C (fixed installation) to 90 °C on conductor (continuous).

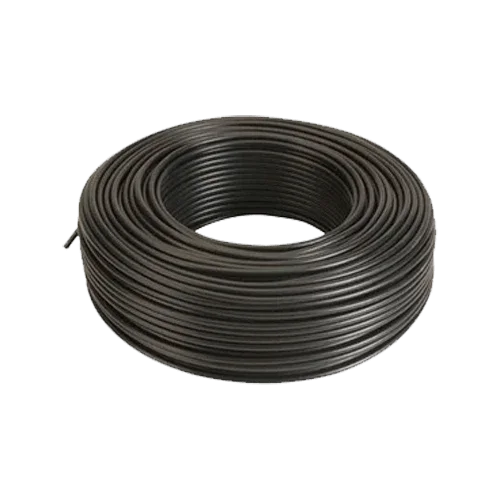

• 100 m coil for continuous runs and fewer splices.

Advantages or Benefits

• Higher current capacity than 1.5 mm² while maintaining high flexibility.
• Durability in solar and outdoor environments: resistant to radiation and humidity.
• Versatility: connections to inverters/loads, public/private lighting, pumps, and panels.
• Electrical safety due to its XLPE insulation and robust PVC sheath.
• Easy installation in conduits, cable trays, or trenches thanks to its favorable bending radius.

Purpose or Applications

Recommended for power circuits in low voltage photovoltaic systems, powering pumps and water treatment units, outdoor lighting lines, socket circuits, and panel branch circuits. Suitable for runs in cable trays, embedded conduit, or buried ducting with proper protection.

Technical Specifications

Compatibilities

Usable with standard conduits and accessories (tubes, trays, cable glands, and terminals suitable for 2.5 mm²). Accessories not included.

The RV-K Hose 2x2.5mm² 100m Black 0.6/1kV offers reliability, safety, and ease of installation for professional solar and electrical projects.
