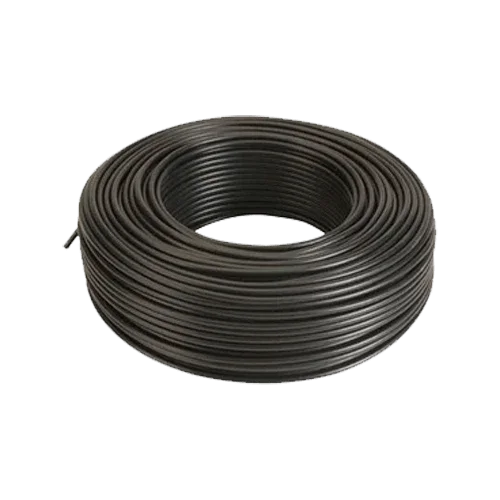

RV-K Hose 3x1.5mm² 100m Black 0.6/1kV
Modelo: RV-K 3x1,5mm² 100m Negra- Sku: REVICAB021
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 3x1.5mm² 100m Black 0.6/1kV is a flexible and robust power cable, designed to reliably meet the low voltage electrical distribution needs in residential, commercial, industrial, and photovoltaic environments. Its construction with class 5 electrolytic copper, XLPE insulation, and black PVC outer sheath makes it a reliable, safe, and durable solution against weather, humidity, and common chemical agents. The 100-meter coil allows for continuous runs with fewer splices, reducing installation time and voltage drops due to unnecessary joints.
Main Features

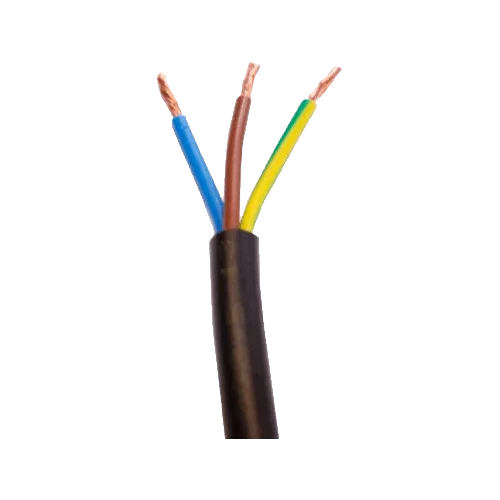

- Class 5 (flexible) copper conductor, 3 × 1.5 mm², which facilitates installation in conduits, trays, and panels.
- Combination of XLPE (insulation) and PVC (sheath) for high dielectric strength and mechanical protection.
- Rated voltage 0.6/1 kV, suitable for low voltage networks and power connections.
- For indoor, outdoor, and buried use; flame retardant and good resistance to UV rays.
- Typical thermal range: up to 90 °C in the conductor during continuous service (depending on installation method).
- Marking and manufacturing in accordance with market reference standards (IEC 60502-1 / UNE 21123-2).
Advantages or Benefits
- Agile installation: its flexibility allows for reduced bending radii and quick passage through conduits.
- Durability in solar environments: UV- and moisture-resistant sheath for outdoor work.
- Enhanced electrical safety due to XLPE insulation, with excellent performance against transient overvoltages.
- True versatility: suitable for power circuits, lighting, small motors, and solar equipment connections.
- Optimized cost: 100 m coil minimizes splices and material waste.
Purpose or Applications
Recommended for power and lighting circuits, connections to distribution panels, lines to inverters or auxiliary equipment in photovoltaic systems, connections for medium-low flow pumps, light automation, and general building services. Suitable for installation in trays, embedded conduit, or buried trench with sand bedding and proper marking.
Technical Specifications
| Type | RV-K |
| Section / number of conductors | 3 × 1.5 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV and moisture |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C in conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit or tray |
| Reaction to fire (CPR) | Usual commercial category for RV-K (check batch marking) |
| Coil length | 100 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Compatible with standard conduits and accessories: corrugated and rigid pipes, cable trays, cable glands, and terminals for 1.5 mm². Suitable for connection to electrical panels, control equipment, lighting fixtures, and small receivers. Accessories not included.
The RV-K Hose 3x1.5mm² 100m Black 0.6/1kV is the professional choice for solar and electrical installations seeking reliability, flexibility, and excellent value for money.
