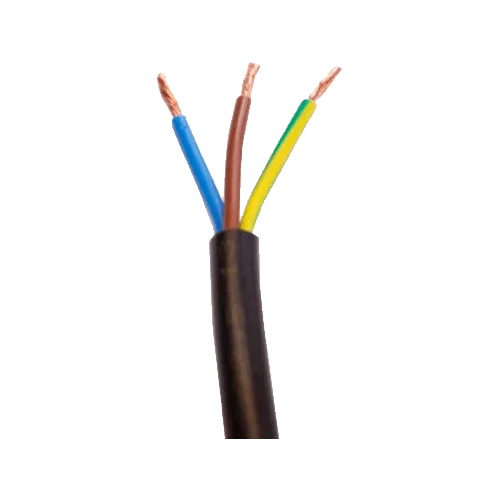

RV-K Hose 3x2.5mm² 100m Black 0.6/1kV
Modelo: RV-K 3x2,5mm² 100m Negra- Sku: REVICAB023
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 3x2.5mm² 100m Black 0.6/1kV is a flexible, robust, and highly versatile power cable for low voltage. Its 2.5 mm² cross-section per conductor offers increased current capacity compared to 1.5 mm², while maintaining high maneuverability in runs with curves or confined spaces. With class 5 electrolytic copper conductor, XLPE insulation, and black PVC outer sheath, it withstands demanding conditions: UV radiation, humidity, oil splashes, and mechanical stress, making it ideal for solar installations, lighting, automation, and power lines in residential, commercial, or industrial environments.
Main Features
- Class 5 copper conductor, 3 × 2.5 mm², flexible and with low electrical resistance.
- XLPE (insulation) + PVC (sheath) configuration for high dielectric strength and mechanical protection.
- Rated voltage 0.6/1 kV suitable for LV networks and equipment connections.
- Suitable for indoor, outdoor, and buried installation; flame-retardant behavior.
- Typical service temperature: –15 °C (fixed installation) to 90 °C on the conductor in continuous operation.
- 100 m coil for long runs, with fewer splices and lower voltage drop at joints.
Advantages or Benefits
- Greater current margin and lower voltage drop than 1.5 mm² while maintaining high flexibility.
- Durability in demanding environments: PVC sheath resistant to UV and humidity.
- Quick installation: favorable bending radii and easy passage through conduit or tray.
- Electrical safety thanks to high-performance XLPE insulation.
- Total versatility: power and lighting, small/medium pumps, branch circuits to panels and inverters.
Purpose or Applications
Recommended for power circuits in low voltage photovoltaic installations, supply to water treatment plants and irrigation pumps, outdoor/indoor lighting lines, and branch circuits to distribution panels. Suitable for installation in embedded conduit, cable duct, metal tray, or buried trench with sand bedding and marking, in accordance with applicable standards.
Technical Specifications
| Type | RV-K |
| Cross-section / number of conductors | 3 × 2.5 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV and humidity |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C on conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit, duct, or tray |
| Reaction to fire (CPR) | Standard commercial classification for RV-K (check batch marking) |
| Coil length | 100 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Compatible with rigid and corrugated conduits, cable trays, cable glands, and terminals suitable for 2.5 mm². Useful as a connection to panels, inverters, contactors, and luminaires. Accessories not included.
The RV-K Hose 3x2.5mm² 100m Black 0.6/1kV combines safety, durability, and ease of installation for professional solar and electrical projects.
