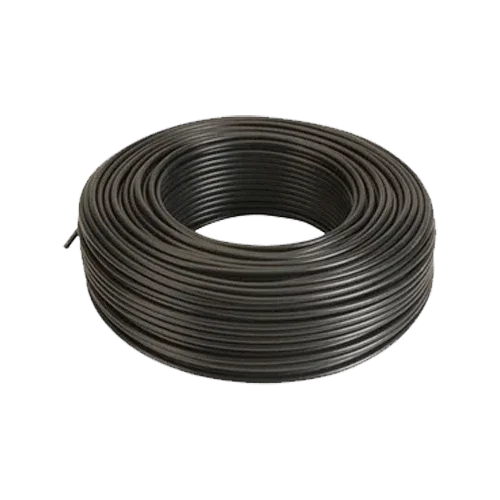

RV-K Hose 3x4mm² 50m Black 0.6/1kV
Modelo: RV-K 3x4mm² 50m Negra- Sku: REVICAB025
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 3x4mm² 50m Black 0.6/1kV is a flexible power cable designed to reliably withstand higher loads in low voltage applications. Its 4 mm² cross-section per conductor provides optimal current capacity and voltage drop for medium-length runs, while maintaining the maneuverability characteristic of class 5 copper. Thanks to its XLPE insulation and black PVC outer sheath, it reliably resists weather, humidity, ultraviolet radiation, and oil splashes, making it ideal for solar, residential, commercial, and industrial environments.
Main Features

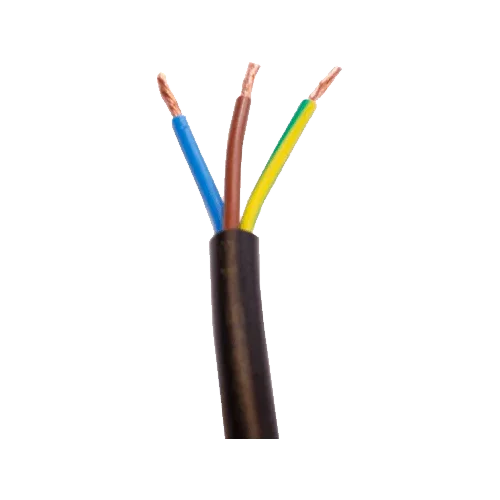

- Class 5 copper conductor (flexible), 3 × 4 mm², ideal for runs with tight bending radii.
- XLPE (insulation) + PVC (sheath) architecture with excellent dielectric strength and mechanical protection.
- Rated voltage 0.6/1 kV for low voltage networks and power connections.
- Suitable for indoor, outdoor, and buried installations; flame-retardant behavior.
- Typical thermal regime: up to 90 °C in the conductor during continuous service (depending on installation and grouping method).
- Manufactured in accordance with market reference standards (IEC 60502-1 / UNE 21123-2) and standard commercial CPR for RV-K.
Advantages or Benefits
- Higher current capacity and lower voltage drop than 2.5 mm², while maintaining great installation flexibility.
- Superior outdoor durability: PVC resistant to UV and humidity for exposed worksites.
- Agile installation: favorable bending radii and easy passage through conduits and loaded trays.
- Electrical safety: XLPE insulation with high dielectric strength against transients.
- 50 m format optimizes material use for renovations, maintenance, and small extensions.
Purpose or Applications
Recommended for power and lighting circuits with higher demand, connections to panels and photovoltaic inverters, supply to pumps, water treatment systems, aerothermal units, and small motors. Suitable for installation in embedded or exposed conduit, cable duct, cable tray, and buried trench with sand bedding and marking, complying with current regulations and good cabling practices.
Technical Specifications
| Type | RV-K |
| Cross-section / number of conductors | 3 × 4 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV, humidity, and oils |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C in conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit, duct, or tray |
| Reaction to fire (CPR) | Standard commercial category for RV-K (see reel marking) |
| Reel length | 50 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Compatible with conduits and cable glands suitable for 4 mm², cable trays, and compression or screw terminals for this cross-section. Useful as a connection to panels, variable speed drives, contactors, and solar equipment. Accessories not included.
The RV-K Hose 3x4mm² 50m Black 0.6/1kV combines current capacity, flexibility, and environmental resistance for professional electrical and solar installations.
