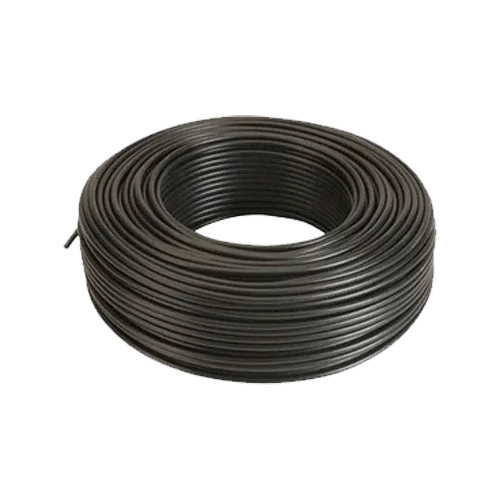

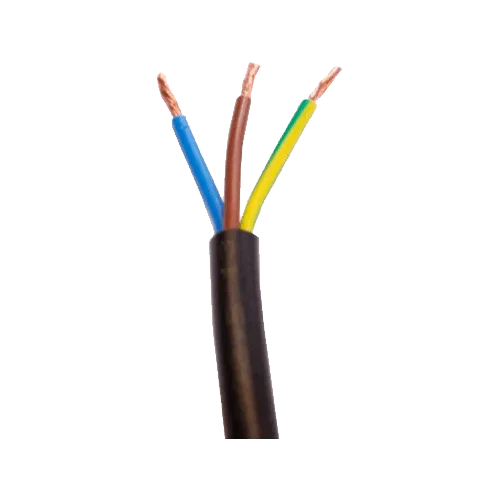

RV-K Hose 3x6mm² 50m Black 0.6/1kV
Modelo: RV-K 3x6mm² 50m Negra- Sku: REVICAB026
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 3x6mm² 50m Black 0.6/1kV is the professional option when higher admissible current and low voltage drop over long runs are required, while maintaining a fast and safe low voltage installation. Each 6 mm² conductor, made of class 5 copper, offers excellent conductivity and flexibility for routing through conduit, tray, or duct with tight bending radii. The XLPE insulation and black PVC sheath provide maximum electrical and mechanical protection against weather, humidity, UV rays, and oil splashes, ensuring a long service life in solar, residential, commercial, and industrial environments.
Main Features
- Class 5 copper conductor (flexible), 3 × 6 mm²: larger cross-section for power lines.
- XLPE (insulation) + PVC (sheath) assembly with high dielectric strength and mechanical resistance.
- Rated voltage 0.6/1 kV, suitable for LV networks, service entries, and power branches.
- For indoor, outdoor, and buried use; flame retardant.
- Normal service temperature: up to 90 °C in the conductor under continuous operation.
- Manufactured according to IEC 60502-1 / UNE 21123-2 and standard commercial CPR for RV-K cables.
Advantages or Benefits
- High current capacity and lower voltage drop compared to 4 mm² and 2.5 mm², ideal for power lines.
- Excellent UV and moisture resistance for outdoor installations in photovoltaics.
- Efficient installation: class 5 copper flexibility facilitates routing through demanding conduits.
- Safety and reliability: high-performance XLPE insulation for transients and brief overloads.
- 50 m coil reduces waste and simplifies on-site logistics.
Purpose or Applications
Suitable for supplying inverters, main and secondary panels, pumps and higher power motors, long-distance lighting lines, and branches in low voltage photovoltaic systems. Suitable for installation in recessed or surface conduit, duct, cable tray, and buried trench with sand bedding and marking according to regulations.
Technical Specifications
| Type | RV-K |
| Cross-section / number of conductors | 3 × 6 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV, moisture, and oils |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C in conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit, duct, or tray |
| Reaction to fire (CPR) | Standard commercial category for RV-K (see coil marking) |
| Coil length | 50 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Compatible with connectors, cable glands, terminals, and conduits sized for 6 mm². Suitable for connections to panels, drives, protections, and power equipment in solar and industrial installations. Accessories not included.
The RV-K Hose 3x6mm² 50m Black 0.6/1kV offers maximum reliability, current capacity, and environmental resistance for demanding electrical and photovoltaic projects.
