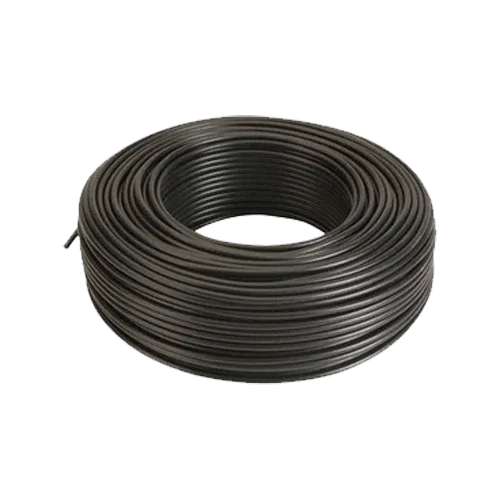

RV-K Hose 4x2.5mm² 50m Black 0.6/1kV
Modelo: RV-K 4x2,5mm² 50m Negra- Sku: REVICAB027
- Vendor: Revi
Specifications
Product Description
The RV-K Hose 4x2.5mm² 50m Black 0.6/1kV is a flexible and versatile low voltage power cable, designed for professional installations in solar, residential, commercial, and light industrial applications. It combines class 5 electrolytic copper conductors with XLPE insulation and a black PVC outer sheath, offering high dielectric strength, excellent mechanical resistance, and durability for outdoor use. The 50-meter format is ideal for medium-sized projects and maintenance, reducing waste and facilitating transport.
Main Features

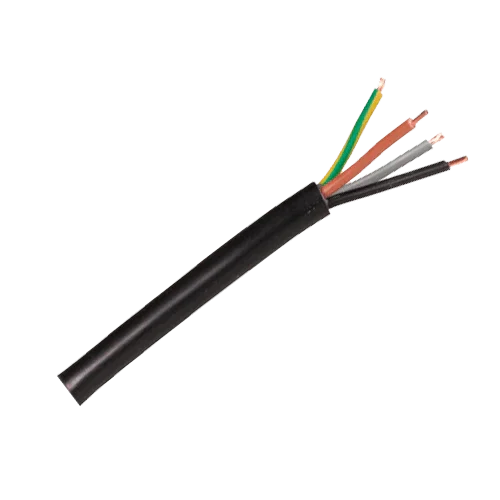

- Configuration 4×2.5 mm²: suitable for three-phase (3F+PE) or single-phase (F+N+PE+reserve).
- Class 5 (flexible) copper conductor that facilitates installation through conduit, cable tray, or duct.
- XLPE (insulation) + PVC (sheath): excellent dielectric strength and protection against impacts and abrasion.
- Rated voltage 0.6/1 kV, suitable for low voltage networks and equipment connections.
- For indoor, outdoor, and buried use; sheath resistant to UV rays, moisture, and oil splashes.
- Typical thermal rating: up to 90 °C at the conductor in continuous service (depending on installation method).
Advantages or Benefits
- True versatility: a single hose for three-phase distribution, motors, pumps, or single-phase branches with earth.
- Quick installation due to high flexibility and favorable bending radii in conduits and compact panels.
- Higher current capacity and lower voltage drop than 1.5 mm² while maintaining maneuverability.
- Reliability in solar environments: black PVC sheath resistant to UV and moisture for outdoor and buried use.
- Long service life: XLPE insulation with excellent performance against brief overloads and transients.
Purpose or Applications
Recommended for three-phase supply of small/medium motors and pumps, branches to panels, aerothermal systems, pool filtration systems, and power lines in low voltage photovoltaic installations. In single-phase, it allows phase, neutral, and earth to be carried in a single conduit. Suitable for cable tray, duct, embedded or surface-mounted conduit, and buried trench with sand bed and signaling according to regulations.
Technical Specifications
| Type | RV-K |
| Section / no. of conductors | 4 × 2.5 mm² |
| Conductor | Class 5 electrolytic copper (flexible) |
| Insulation | XLPE (cross-linked polyethylene) |
| Sheath | Black PVC, resistant to UV, moisture, and oils |
| Rated voltage | 0.6/1 kV |
| Service temperature | Up to 90 °C at conductor (continuous) |
| Installation | Indoor, outdoor, buried, conduit, duct, or tray |
| Reaction to fire (CPR) | Standard commercial classification for RV-K (check batch marking) |
| Coil length | 50 m |
| Reference standards | IEC 60502-1 / UNE 21123-2 |
Compatibilities
Compatible with corrugated and rigid conduits, cable trays, cable glands, and terminals for 2.5 mm². Useful as a connection to panels, drives, contactors, luminaires, and low voltage solar equipment. Accessories not included.
The RV-K Hose 4x2.5mm² 50m Black 0.6/1kV provides safety, flexibility, and environmental resistance for reliable electrical distribution in solar and general power projects.
