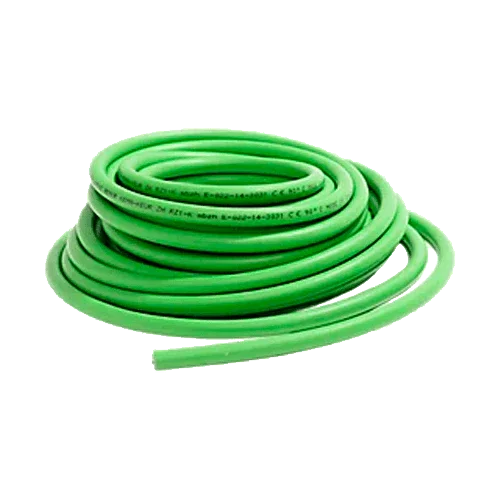

RZ1-K Green Hose 2x10mm² Halogen Free 0.6/1kV
Modelo: RZ1-K Verde 2x10mm²- Sku: REVICAB028
- Vendor: Revi
Specifications
Product Description

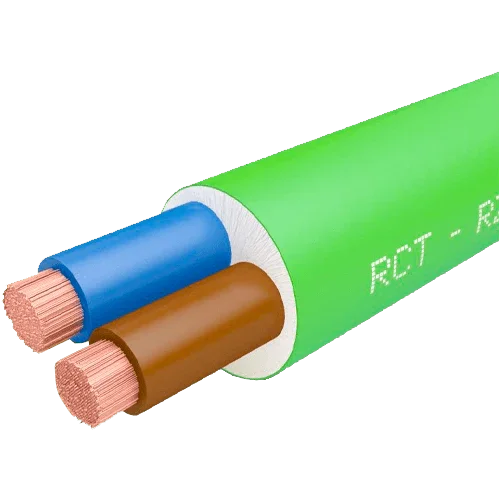

The RZ1-K Green Hose 2x10mm² Halogen-Free 0.6/1kV is a flexible multipolar cable for low voltage that combines safety, durability, and ease of installation. Its RZ1-K (AS) design integrates class 5 copper conductors for easy routing, XLPE insulation (90 °C) with excellent thermal performance, and a halogen-free LSZH sheath that reduces smoke opacity and toxicity. Complies with CPR Cca-s1b,d1,a1, making it suitable for public buildings, industry, and photovoltaic plant balance of system on the AC side.
Main Features
- Rated voltage: 0.6/1 kV · Test voltage: 3.5 kV.
- Conductors: 2×10 mm² class 5 copper (flexible).
- Insulation: XLPE · Sheath: LSZH (halogen-free and low smoke emission).
- Conductor service: 90 °C (short-circuit 250 °C / 5 s).
- Installation: indoor, outdoor, tray, conduit, or buried.
- Manufacturing standard: UNE 21123-4.
Advantages or Benefits
- CPR safety for public spaces: very low smoke opacity and acidity.
- Lower voltage drop compared to smaller cross-sections over medium/long runs.
- Superior handling thanks to the flexible class 5 conductor.
- Versatility in buildings, industry, and solar plants (AC distribution).
- Long service life due to the thermal and mechanical stability of XLPE.
Purpose or Applications
Feeders and branch circuits in panels, service lines in buildings and warehouses, connections and AC distribution in photovoltaic installations. Suitable for conduit, tray, or trench routing, complying with REBT and ITC-BT.
Technical Specifications
| Designation | RZ1-K (AS) · XLPE/LSZH |
| Number of conductors | 2 (without protective conductor) |
| Cross-section | 2 × 10 mm² |
| Conductor material | Class 5 copper (flexible) |
| Conductor resistance (20 °C) | ≈ 1.9 Ω/km per conductor |
| Rated voltage | 0.6/1 kV |
| Service temperature | −15…+90 °C |
| Reaction to fire (CPR) | Cca-s1b,d1,a1 |
| Sheath color | Green |
| Presentation | Sold by the meter (custom length) |
Compatibilities
Compatible with cable glands, ferrules, and terminals for 10 mm²; suitable for standard conduits and direct burial. Size protections and cross-section according to REBT, admissible currents, and voltage drop calculation.
RZ1-K Green Hose 2x10mm² Halogen-Free 0.6/1kV ensures safe and reliable electrical distribution in demanding LV projects.
