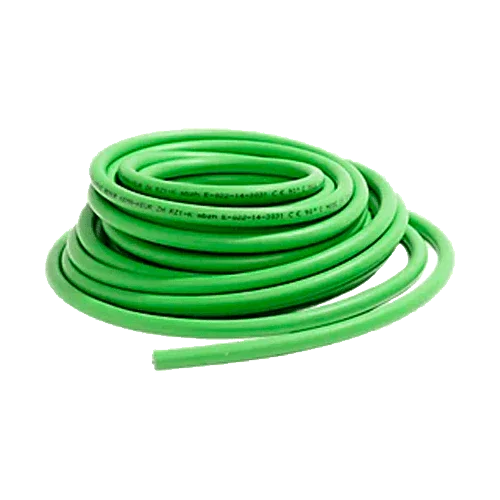

RZ1-K Green Hose 2x16mm² Halogen Free 0.6/1kV

Product Description

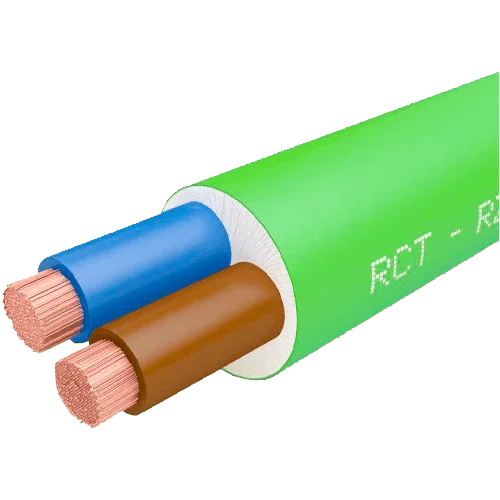

The RZ1-K Green Hose 2x16mm² Halogen-Free 0.6/1kV is a large-section multipolar cable for low voltage, designed for high-demand power supply and branch circuits in buildings, industry, and solar plants. Its construction with class 5 copper conductors provides flexibility and reduced bending radii; the XLPE insulation ensures continuous service at 90 °C and the LSZH halogen-free sheath guarantees low emission of smoke and corrosive gases. Certified CPR Cca-s1b,d1,a1, it provides maximum safety in public spaces.

Main Features

• Rated voltage: 0.6/1 kV · Test: 3.5 kV.
• Conductors: 2×16 mm² class 5 copper.
• XLPE insulation (90 °C) and LSZH sheath (halogen-free).
• Installation: indoor, outdoor, tray, conduit, or buried.
• Standard: UNE 21123-4 · CPR: Cca-s1b,d1,a1.

Advantages or Benefits

• Minimal voltage drop over long runs and high loads.
• Enhanced safety against fire due to its LSZH sheath (low smoke opacity/toxicity).
• Easy installation thanks to the flexibility of class 5 conductor.
• Versatile: buildings, industry, infrastructure, and AC distribution in photovoltaics.
• Thermal and mechanical durability characteristic of XLPE.

Purpose or Applications

Risers, main and plant panel feeds, service entries, and internal LV networks; AC distribution in solar plants when a larger section is required due to current or distance.

Technical Specifications

Compatibilities

Compatible with 16 mm² terminals and ferrules, metric cable glands, and standardized conduits. Size protections and routes according to REBT/ITC-BT, admissible currents, and voltage drop calculation.

RZ1-K Green Hose 2x16mm² Halogen-Free 0.6/1kV offers CPR safety and superior electrical performance for main low voltage lines.
