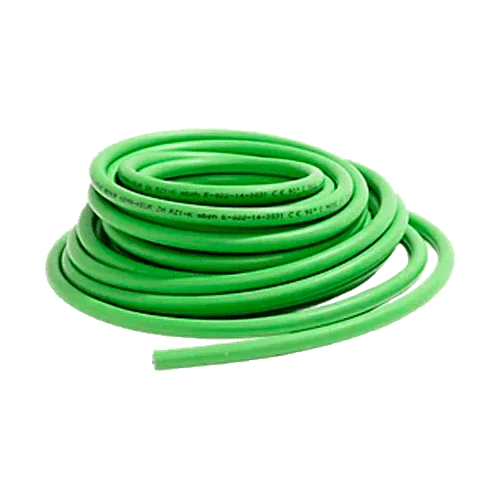

RZ1-K Green Hose 2x6mm² Halogen Free 0.6/1kV
Modelo: RZ1-K Verde 2x6mm²- Sku: REVICAB030
- Vendor: Revi
Specifications
Product Description

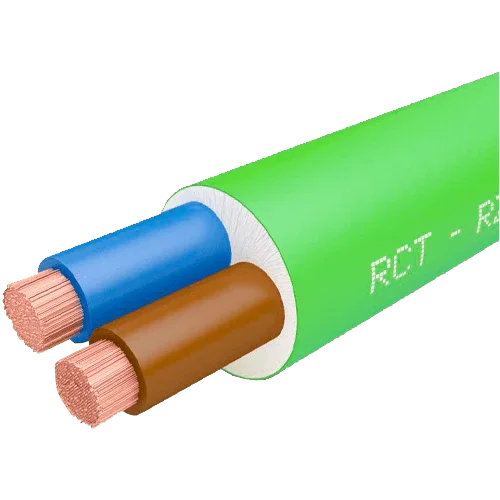

The RZ1-K Green Hose 2x6mm² Halogen-Free 0.6/1kV is a flexible low voltage multipolar cable designed for power supply and branch circuits in buildings, industry, and solar installations (AC side). Its RZ1-K (AS) construction combines class 5 electrolytic copper conductors with XLPE (cross-linked polyethylene) insulation and LSZH (halogen-free) sheath, ensuring excellent thermal performance, high durability, and very low emission of smoke and corrosive gases in case of fire. It complies with CPR Cca-s1b,d1,a1, a common requirement in public spaces and civil works. Thanks to its flexibility and reduced bending radius, it facilitates routing in conduit, tray, or trench, providing fast installation and reliable service.
Main Features
- Rated voltage: 0.6/1 kV; test voltage: 3.5 kV.
- Conductors: 2 × 6 mm² class 5 copper (high flexibility).
- Insulation: XLPE 90 °C; LSZH halogen-free sheath.
- Certified fire reaction: CPR Cca-s1b,d1,a1.
- Multipurpose use: indoor, outdoor, in tray, conduit, or buried.
- Suitable for photovoltaic plant balance of system (AC distribution) and general LV uses.
Advantages or Benefits
- Superior safety: low smoke opacity and toxicity; halogen-free.
- Durability: XLPE with high thermal and dielectric stability at 90 °C.
- Manageability: class 5 conductors that speed up laying and bends.
- Efficiency: 2×6 mm² cross-section suitable for limiting voltage drop in typical runs.
- Versatility: suitable for service networks, panels, lighting, and connections.
Purpose or Applications
Power supply and branch circuits in residential and commercial buildings, service lines in warehouses, AC distribution in solar plants, circuits in tray or conduit, and buried runs complying with REBT and ITC-BT.
Technical Specifications
| Designation | RZ1-K (AS) · XLPE/LSZH |
| Number of conductors | 2 (without protective conductor) |
| Cross-section | 2 × 6 mm² |
| Conductor material | Class 5 copper (flexible) |
| Rated voltage | 0.6/1 kV |
| Test voltage | 3.5 kV |
| Service temperature | −15…+90 °C (250 °C/5 s in short circuit) |
| Fire reaction (CPR) | Cca-s1b,d1,a1 |
| Insulation | XLPE (90 °C) |
| Sheath | LSZH halogen-free, low smoke emission |
| Sheath color | Green |
| Presentation | Sold by the meter (custom length) |
Compatibilities
Compatible with metric cable glands, ferrules and terminals for 6 mm², and standard conduits in tray, tube, or trench. Size protections and cross-section according to REBT, admissible currents, and voltage drop calculation.
The RZ1-K Green Hose 2x6mm² Halogen-Free 0.6/1kV offers CPR safety, flexibility, and long service life for reliable low voltage distribution.
